Multimeter 30 Range Multi-function Digital Multimeter Q1066A

Multimeter 30 Range Multi-function Digital Multimeter Q1066A

Regular price $99.00
Regular price Sale price $99.00
Sale Sold out
Taxes included.

Available in 4-8 Days

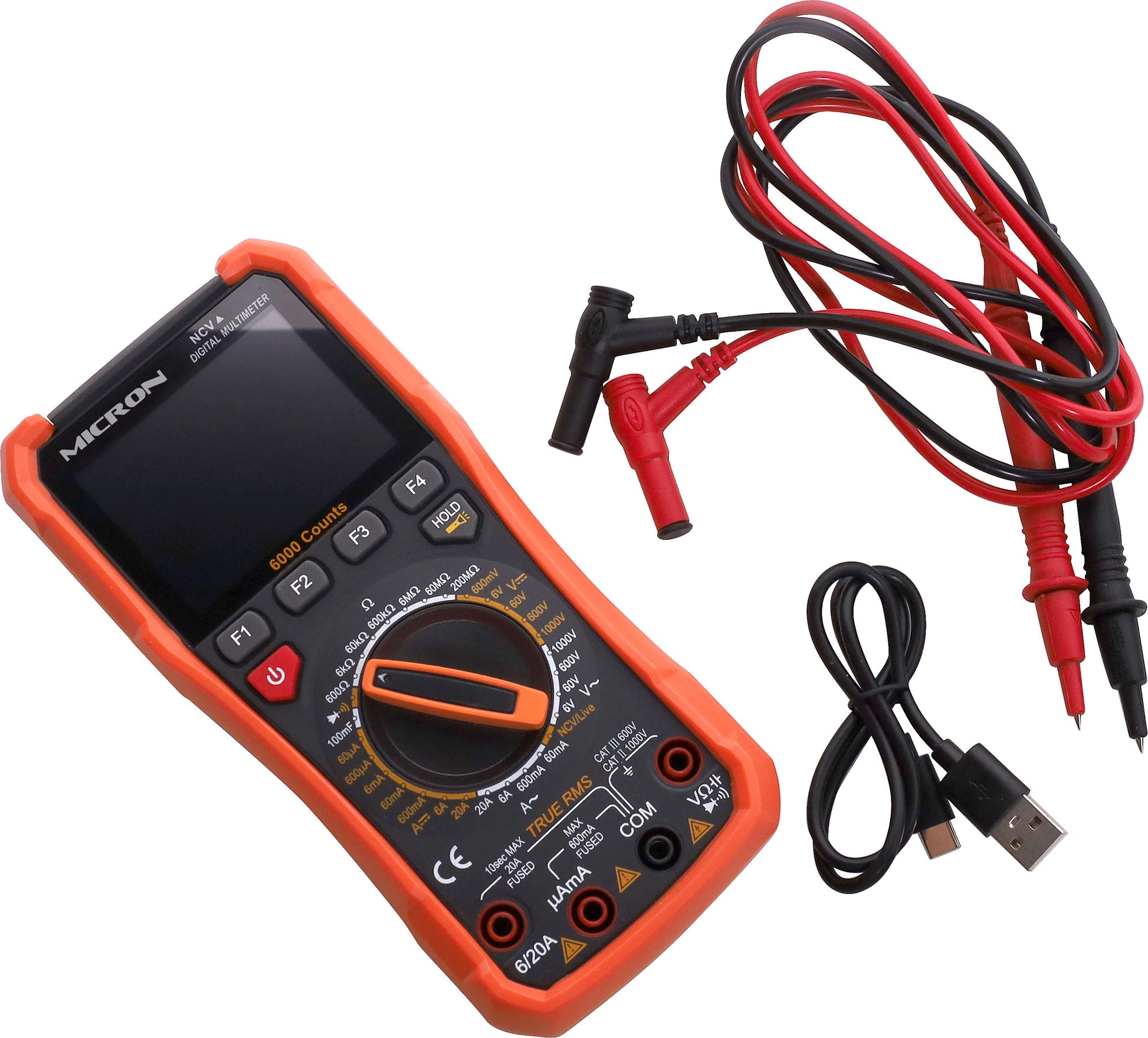

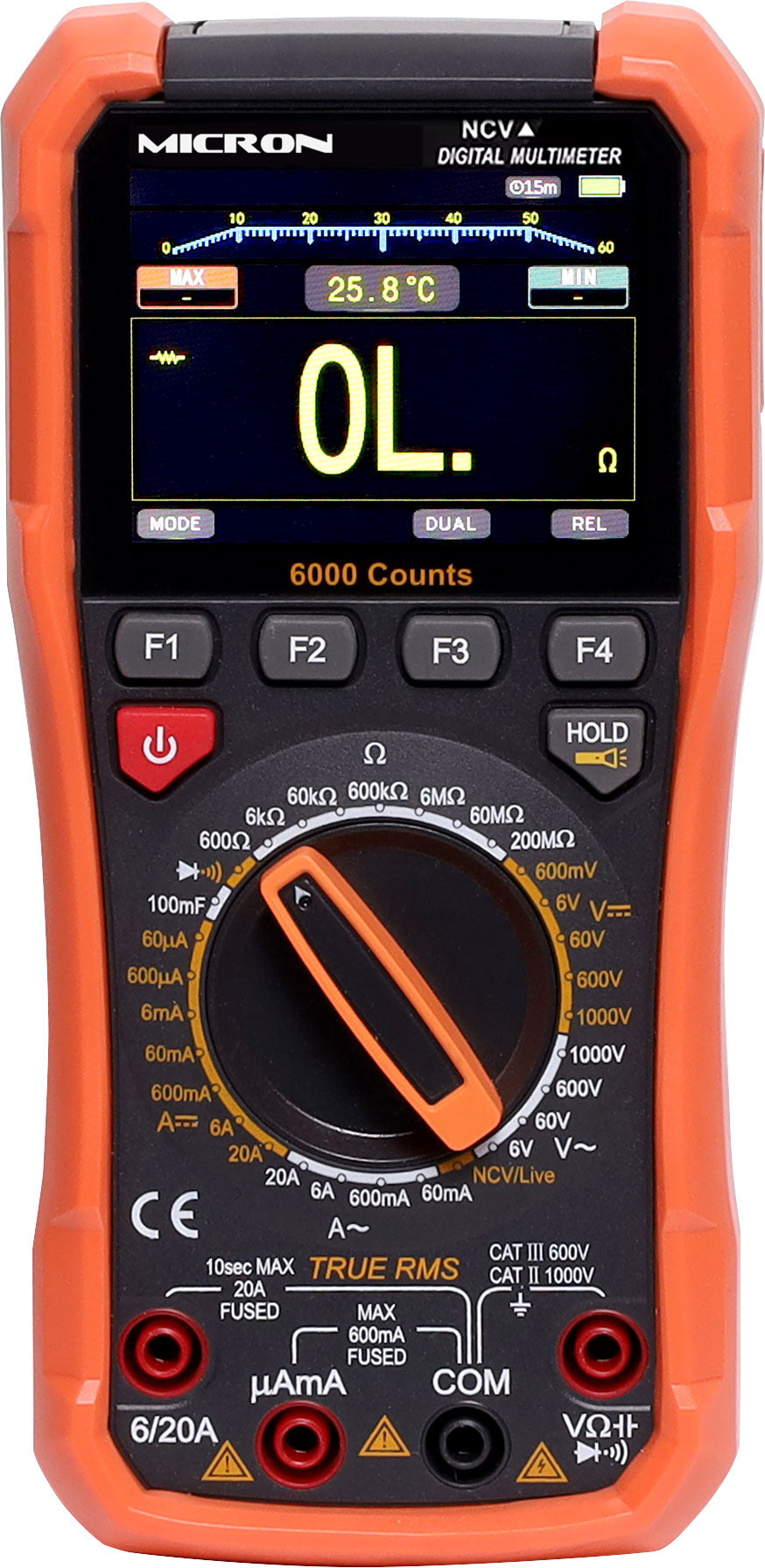

This superbly built 30 range multimeter features a striking 2.8” colour screen with 6000 count readout. It is equipped with a main and auxiliary display showing min, max, level reading and ambient temperature. It is capable of measuring AC/DC voltages up to 1000V as well as current up to 20A, resistance, capacitance, diode test, continuity, non-contact voltage detection & live socket testing. Relative function is provided for monitoring measurement variability, plus min/max recording and data hold. It requires no batteries and is rechargeable using standard USB type C. Includes charging cable, and test leads.

Features

  • True RMS AC measurement
  • 6000 count 3.75 digit LCD
  • Non contact AC voltage detection with live socket test function
  • Capacitance measurement
  • Fused 20A input
  • Continuity and diode test
  • Auto power off
  • Low battery indicator
  • USB C rechargeable
  • Data hold mode
  • Min/max readings always on screen • Bright 2.3” colour TFT screen
  • In built torch
  • Cat III 600V, Cat II 1000V

Specifications

  • Voltage DC: 600mV, 6V, 60V, 600V, 1000V (±0.5%+3d)
  • Voltage AC: 6V, 60V, 600V, 1000V (±0.8%+5d)
  • Current DC: 60mA, 600mA, 6A, 20A (±1.5%+10d)
  • Current AC: 60mA, 600mA, 6A, 20A (±1.5%+15d)
  • Resistance: 600Ω, 6kΩ, 60kΩ, 600kΩ, 6MΩ, 60MΩ, 200MΩ (±0.8%+3d)
  • Capacitance: 6nF, 60nF, 600nF, 6µF, 60µF, 600µF, 6mF, 60mF, 100mF (±3.5%+20d)
  • Continuity: Less than 50Ω (±10Ω)
  • Diode test: Test voltage 3.9V @ 1mA
  • Protection: 250V/20A fused
  • Display: 3.75 digit TFT colour, 6000 count
  • Dimensions: ≈ 87W x 54D x 181H mm
