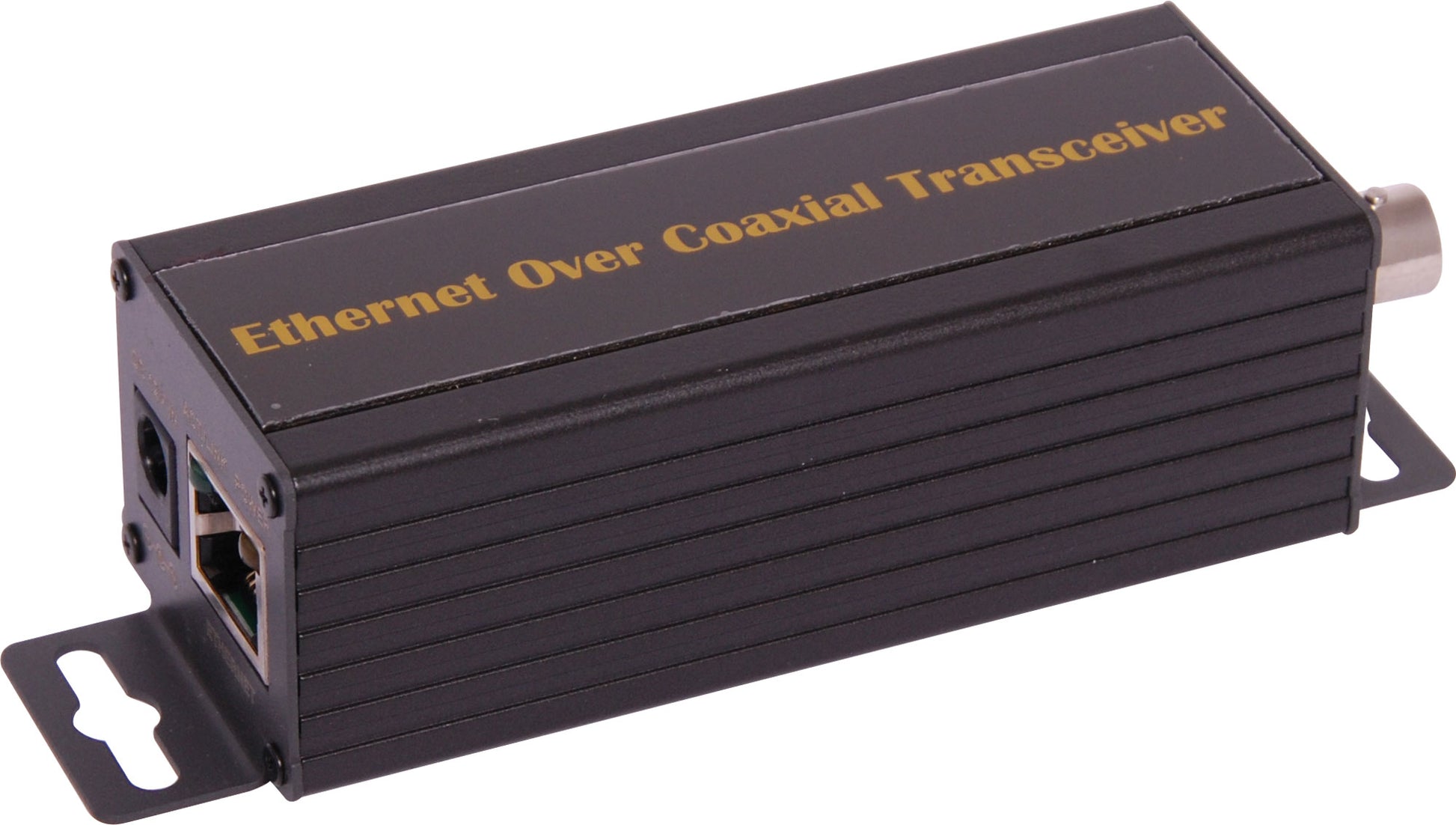

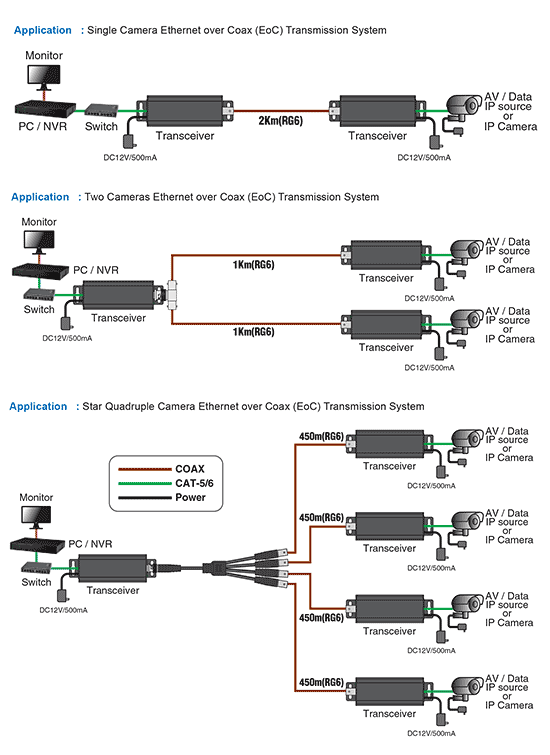

A 10/100 ethernet over coax transceiver for sending ethernet only (no power) over coaxial cabling. Two units are required to form a link. Alternatively, it can be used with S 9267 4 way splitter cable to four S 9268 transceivers. Requires 12V DC from either M 9273A or existing 12V supply using P 6715. Maximum coaxial length 2000m.
Specifications
- Connector Type: 1x BNC
- Cable Type: 75-ohm RG59, RG6, or RG11 video-grade coaxial cable
- Max. Transmission Distance: 600m (2000ft.) for the RG6 coaxial cable
- Ethernet Connector: 1x RJ-45 with LEDs on Connector
- Cable Type: Straight through or cross-over Cat5 Cable, Auto MDI/MDIX
- Rate: IEEE 802.3x, Auto-Detection for 10/100Base-T and full / half duplex
- Output Voltage: IEEE 802.3af/at PSE@ RJ45 Port
- LED Indicators: Coaxial Data Signal Strength, Green: GOOD (Link speed > 60Mbps) / Amber: MEDIUM (Link speed 20~60Mbps), Red: BAD (Link speed < 20Mbps) / Off: NO LINK
- Push Button: Reset / Pairing
- Input Operating Voltage: DC 56V / 0.03 - 1.6A
- Power Consumption: 1.5W (w/o power forwarding)
- Operation Temperature: -20°C ~ 60°C
- Humidity: 20% to 85% RH. (non-condensing)
- Storage Temperature: -30°C ~ 80°C
- Dimensions (W×D×H) mm: 38 x 120 x 33
- Weight: 176g
| Transmission Distance with Power Delivered: COAXIAL Cable | ||||||
|
Power Delivered
|
Not using
|
5.5W | 7W | 9W | 12W | 17W |
| Maximum Coax RG6. Data Link Distance | ||||||
| DC56V Power Supplied | 2000m | 600m | 500m | 400m | 300m | 200m |
| Transmission Distance with Power Delivered: UTP Cable | ||||||
|
Power Delivered
|
Not using
|
16W | 18W | 19.5W | 20W | 22W |
| Maximum Cat.5 (4-Pair) UTP Cable. Data Link Distance | ||||||
| DC56V Power Supplied | 600m | 600m | 500m | 400m | 300m | 200m |
