Networking TL-SG1008D 8 Port 10/100/1000M Ethernet Switch D4192
Networking TL-SG1008D 8 Port 10/100/1000M Ethernet Switch D4192
Regular price
$51.95
Regular price
Sale price
$51.95
Unit price
per
Taxes included.
Couldn't load pickup availability

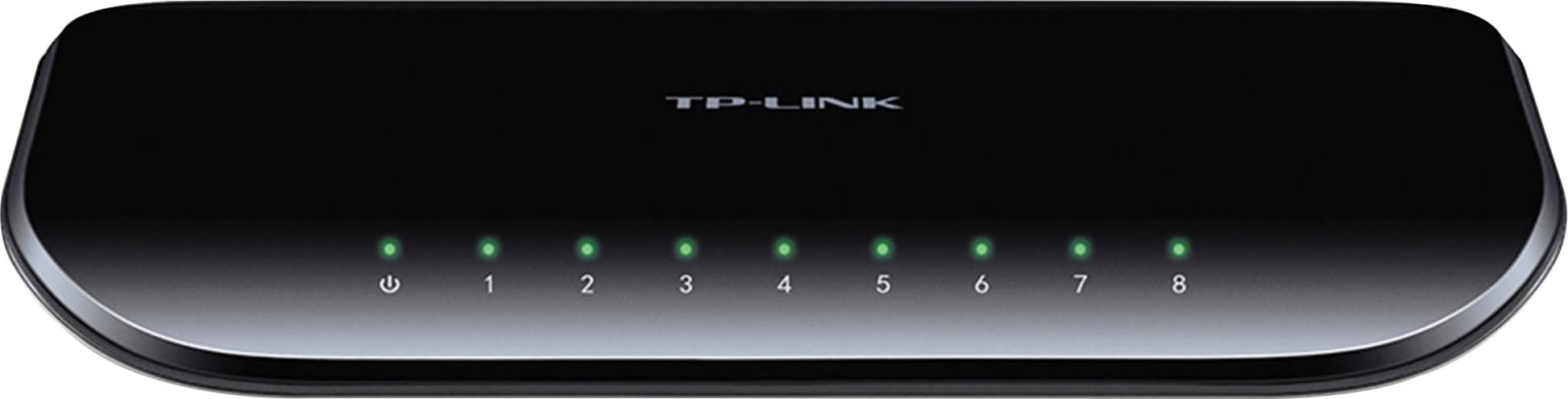

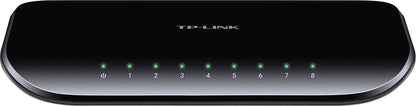

This high speed TP-Link 10/100/1000Mbps ethernet switch will allows up to 8 computers to be connected together. Further computers may be added by daisy-chaining more switches together. Plugpack included.
Features
- Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
- Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
- Supports MAC address auto-learning and auto-aging
- LED indicators for monitoring power, link, activity
- Plastic case, desktop or wall-mounting design
- External power adapter supply
Specifications
- Standards and Protocols:
- - IEEE802.3, 802.3u, 802.3ab, 802.3x
- - CSMA/CD, TCP/IP
- Basic Functions:
- - Wire-speed Performance
- - MAC Address Auto-Learning and Auto-aging
- - IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode
- Backbound Bandwidth: 16Gbps
- MAC Address Table: 4k
- Forwarding Rate
- - 10BASE-T: 14880pps/port
- - 100BASE-TX: 148800pps/port
- - 1000BASE-T: 1488000pps/port
- Transmission Method: Store-and-Forward

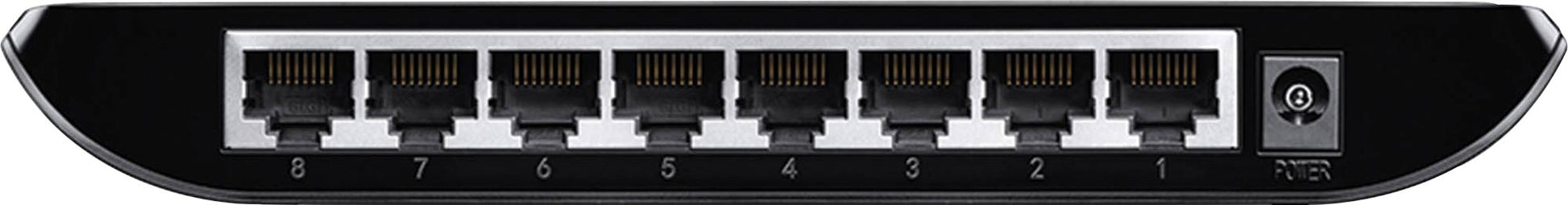

- Ports: 8 10/100/1000Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)
- Network Media
- - 10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
- - EIA/TIA-568 100Ù STP (maximum 100m)
- - 100Base-Tx: UTP category 5, 5e cable (maximum 100m)
- - EIA/TIA-568 100Ù STP (maximum 100m)
- - 1000Base-T: UTP category 5, 5e cable (maximum 100m)
- LED Indicators: Power, 10/100M, 1000M
- Safety & Emission: FCC, CE
- Dimensions (W x D x H): 7.9 x 5.5 x 1.1 in. (200 x 140 x 28 mm)
- Environment:
- - Operating Temperature: 0℃~40℃ (32℉~104℉)
- - Storage Temperature: -40℃~70℃ (-40℉~158℉)
- - Operating Humidity: 10%~90% non-condensing
- - Storage Humidity: 5%~90% non-condensing
- Power: External Power Adapter
