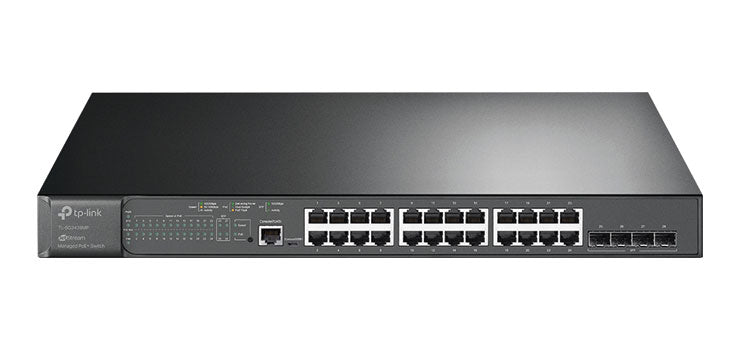

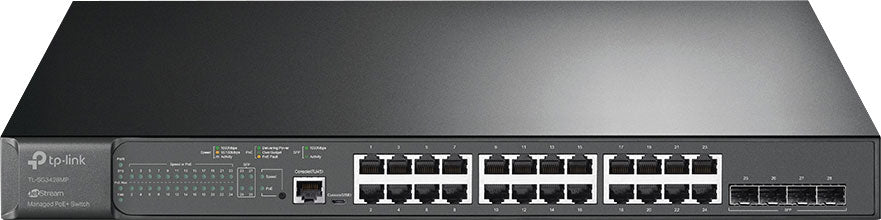

Networking TL-SG3428MP JetStream 28-Port Gigabit Managed Switch with 24-Port PoE+ D4215

Networking TL-SG3428MP JetStream 28-Port Gigabit Managed Switch with 24-Port PoE+ D4215

$768.95
$768.95
Sale Sold out
Taxes included.

This JetStream 28-Port Gigabit managed switch has 24 ports supporting 802.3at/af-compliant PoE+.  Designed to use a single Ethernet cable for both data and power transmission, it offers flexible deployment for PoE-supported devices such as wireless access points, IP cameras, and IP phones, lowering infrastructure costs for small businesses. Omada’s Software-Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralised cloud management. Omada creates a highly scalable network— all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more. Dimensions: 440W × 330D × 44Hmm.

Package Contents
1 x TL-SG3428MP Switch
1 x Power Cord
1 x Quick Installation Guide
1 x Rack Mount Kit
1 x Rubber Feet

Features

  • 384 W PoE Budget: 24× 802.3at/af-compliant PoE+ ports with a total power supply of 384 W*.
  • Full Gigabit Ports: 24× gigabit PoE+ ports and 4× gigabit SFP Slots provide high-speed connections.
  • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
  • Centralised Management: Cloud access and Omada app for ultra convenience and easy management.
  • Static Routing: Helps route internal traffic for more efficient use of network resources.
  • Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
  • Optimise Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
  • Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities.

Specifications

Hardware Features

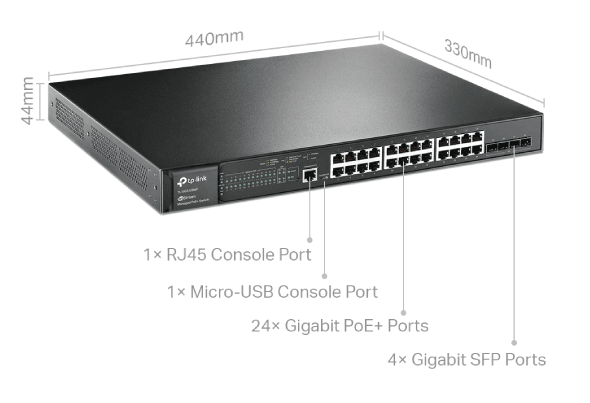

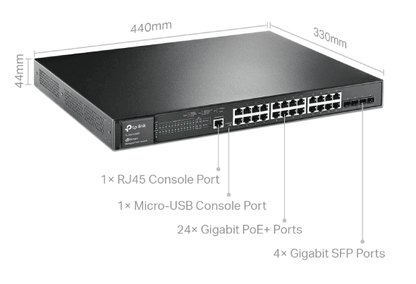

  • Interface:
  • - 24× 10/100/1000Mbps RJ45 Ports
  • - 4× Gigabit SFP Slots
  • - 1× RJ45 Console Port
  • - 1× Micro-USB Console Port
  • Fan Quantity: 2

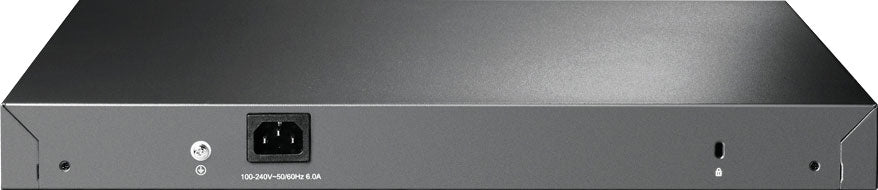

  • Power Supply: 100-240 V AC~50/60 Hz
  • PoE+ Ports(RJ45):
  • - Standard: 802.3at/af compliant
  • - PoE+ Ports: 24 Ports, up to 30 W per port
  • - Power Budget: 384 W
  • Dimensions ( W x D x H ): 440 × 330 × 44 mm
  • Mounting: Rack Mountable
  • Max Power Consumption:
  • - 31.0 W (110 V/60 Hz) (no PD connected)
  • - 463.8 W (110 V/60 Hz) (with 384 W PD connected)
  • Max Heat Dissipation:
  • - 105.78 BTU/h (110 V/60 Hz) (no PD connected)
  • - 1582.49 BTU/h (110 V/60 Hz) (with 384 W PD connected)

Performance

  • Switching Capacity: 56Gbps
  • Packet Forwarding Rate: 41.66Mpps
  • MAC Address Table: 8K
  • Jumbo Frame: 9KB

Software Features

  • Quality of Service:
  • • 8 priority queues
  • • 802.1p CoS/DSCP priority
  • • Queue scheduling
  • - SP (Strict Priority)
  • - WRR (Weighted Round Robin)
  • - SP+WRR
  • • Bandwidth Control
  • - Port/Flow based Rating Limiting
  • • Smoother Performance
  • • Action for Flows
  • - Mirror (to supported interface)
  • - Redirect (to supported interface)
  • - Rate Limit
  • - QoS Remark
  • L2 and L2+ Features:
  • • Link Aggregation
  • - Static link aggregation
  • - 802.3ad LACP
  • - Up to 8 aggregation groups and up to 8 ports per group
  • • Spanning Tree Protocol
  • - 802.1d STP
  • - 802.1w RSTP
  • - 802.1s MSTP
  • - STP Security: TC Protect, BPDU Filter, BPDU Protect, Root Protect, Loop Protect
  • • Loopback Detection
  • - Port-based
  • - VLAN based
  • • Flow Control
  • - 802.3x Flow Control
  • - HOL Blocking Prevention
  • • Mirroring
  • - Port Mirroring
  • - CPU Mirroring
  • - One-to-One
  • - Many-to-One
  • - Tx/Rx/Both
  • L2 Multicast:
  • • Supports 511 (IPv4, IPv6) IGMP groups
  • • IGMP Snooping
  • - IGMP v1/v2/v3 Snooping
  • - Fast Leave
  • - IGMP Snooping Querier
  • - IGMP Authentication
  • • IGMP Authentication
  • • MVR
  • • MLD Snooping
  • - MLD v1/v2 Snooping
  • - Fast Leave
  • - MLD Snooping Querier
  • - Static Group Config
  • - Limited IP Multicast
  • • Multicast Filtering: 256 profiles and 16 entries per profile
  • VLAN:
  • • VLAN Group
  • - Max 4K VLAN Groups
  • • 802.1Q Tagged VLAN
  • • MAC VLAN: 12 Entries (30 Entries for TL-SG3428 V2.0 & TL-SG3428MP V2.0)
  • • Protocol VLAN: Protocol Template 16, Protocol
  • VLAN 16
  • • Private VLAN
  • • GVRP
  • • VLAN VPN (QinQ)
  • - Port-Based QinQ
  • - Selective QinQ
  • • Voice VLAN
  • Access Control List:
  • • Time-based ACL
  • • MAC ACL
  • - Source MAC
  • - Destination MAC
  • - VLAN ID
  • - User Priority
  • - Ether Type
  • • IP ACL
  • -Source IP
  • - Destination IP
  • - Fragment
  • - IP Protocol
  • - TCP Flag
  • - TCP/UDP Port
  • - DSCP/IP TOS
  • - User Priority
  • • Combined ACL
  • • Packet Content ACL
  • • IPv6 ACL
  • • Policy
  • - Mirroring
  • - Redirect
  • - Rate Limit
  • - QoS Remark
  • • ACL apply to Port/VLAN
  • Security:
  • • IP-MAC-Port Binding
  • - DHCP Snooping
  • - ARP Inspection
  • - IPv4 Source Guard
  • • IPv6-MAC-Port Binding
  • - DHCPv6 Snooping
  • - ND Detection
  • - IPv6 Source Guard
  • • DoS Defend
  • • Static/Dynamic Port Security
  • - Up to 64 MAC addresses per port
  • • Broadcast/Multicast/Unicast Storm Control
  • - kbps/ratio/pps control mode
  • • IP/Port/MAC based access control
  • • 802.1X
  • - Port based authentication
  • - Mac based authentication
  • - VLAN Assignment
  • - MAB
  • - Guest VLAN
  • - Support Radius authentication and accountability
  • • AAA (including TACACS+)
  • • Port Isolation
  • • Secure web management through HTTPS with SSLv3/TLS 1.2
  • • Secure Command Line Interface (CLI) management with SSHv1/SSHv2
  • IPv6:
  • • IPv6 Dual IPv4/IPv6
  • • Multicast Listener Discovery (MLD) Snooping
  • • IPv6 ACL
  • • IPv6 Interface
  • • Static IPv6 Routing
  • • IPv6 neighbor discovery (ND)
  • • Path maximum transmission unit (MTU) discovery
  • • Internet Control Message Protocol (ICMP) version 6
  • • TCPv6/UDPv6
  • • IPv6 applications
  • - DHCPv6 Client
  • - Ping6
  • - Tracert6
  • - Telnet (v6)
  • - IPv6 SNMP
  • - IPv6 SSH
  • - IPv6 SSL
  • - Http/Https
  • - IPv6 TFTP
  • L3 Features:
  • • 16 IPv4/IPv6 Interfaces
  • • Static Routing
  • - 48 static routes
  • • Static ARP
  • - 128 static entries
  • • 316 ARP Entries (512 ARP Entries for TL-SG3428 V2.0 & TL-SG3428MP V2.0)
  • • Proxy ARP
  • • Gratuitous ARP
  • • DHCP Server
  • • DHCP Relay
  • - DHCP interface relay
  • - DHCP VLAN relay
  • • DHCP L2 Relay
  • Management:
  • • Web-based GUI
  • • Command Line Interface (CLI) through console port, telnet
  • • SNMPv1/v2c/v3
  • - Trap/Inform
  • - RMON (1, 2, 3, 9 groups)
  • • SDM Template
  • • DHCP/BOOTP Client
  • • 802.1ab LLDP/LLDP-MED
  • • DHCP AutoInstall
  • • Dual Image, Dual Configuration
  • • CPU Monitoring
  • • Cable Diagnostics
  • • EEE
  • • Password Recovery
  • • SNTP
  • • System Log
  • Advanced Features:
  • • Support Omada Hardware Controller (OC200/OC300), Software Controller, Cloud-Based Controller
  • • Automatic Device Discovery
  • • Batch Configuration
  • • Batch Firmware Upgrading
  • • Intelligent Network Monitoring
  • • Abnormal Event Warnings
  • • Unified Configuration
  • • Reboot Schedule
  • • ZTP (Zero-Touch Provisioning)

Environment

  • Operating Temperature: 0–45℃
  • Storage Temperature: -40–70℃
  • Operating Humidity: 10–90% RH non-condensing
  • Storage Humidity: 5–90% RH non-condensing
