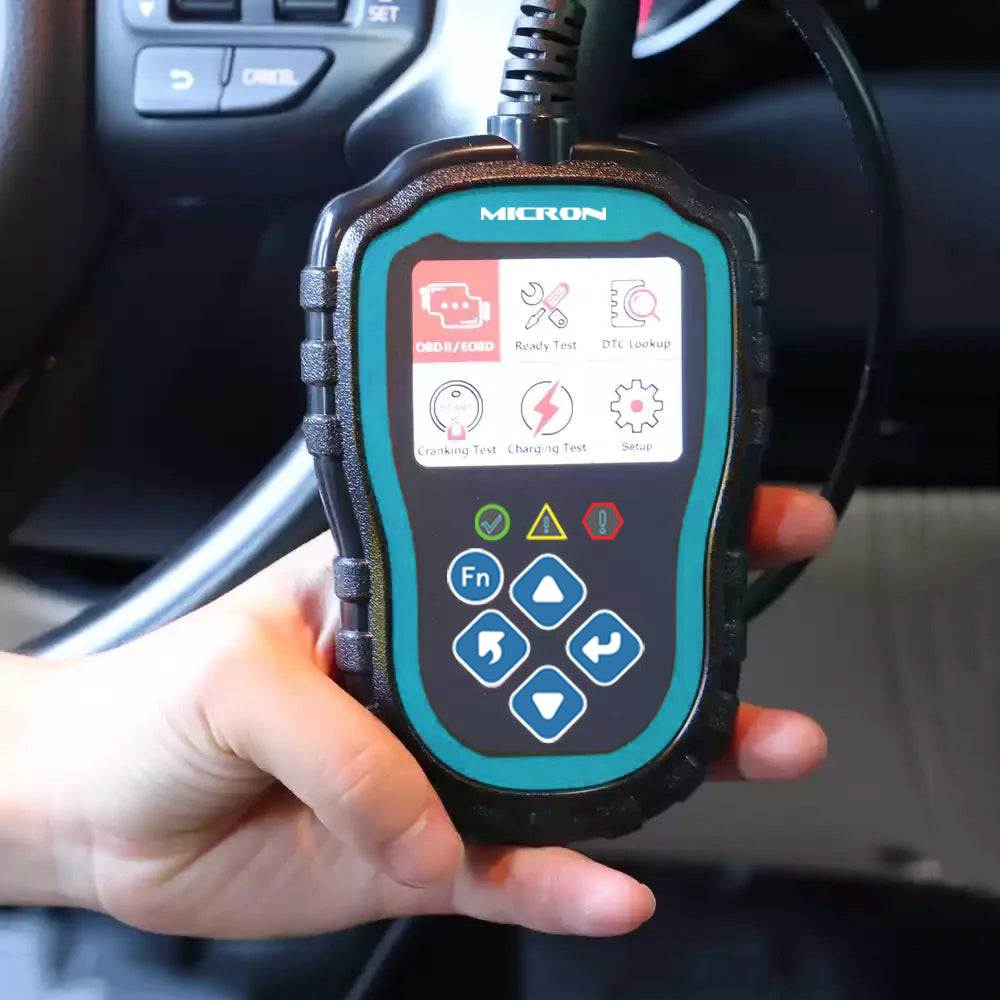

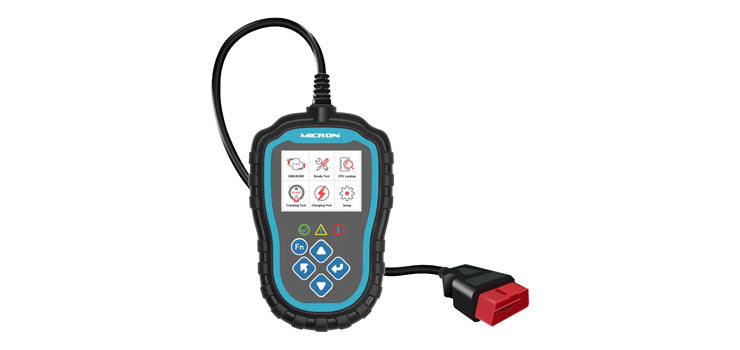

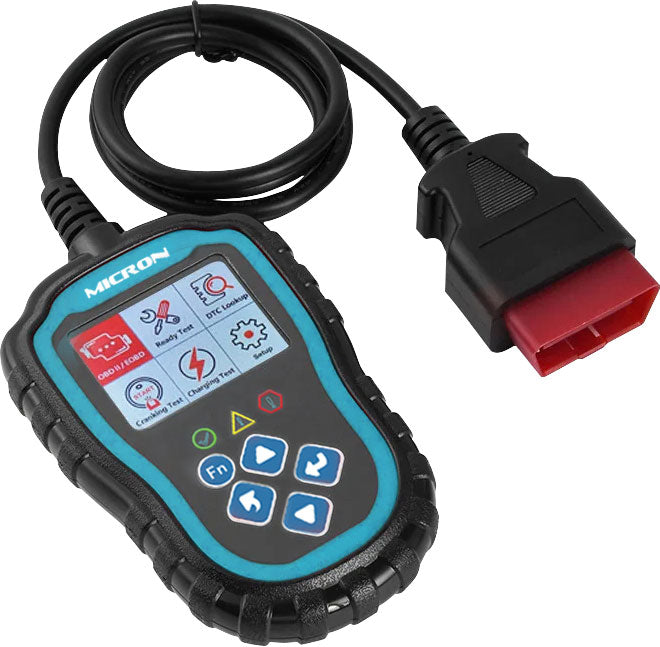

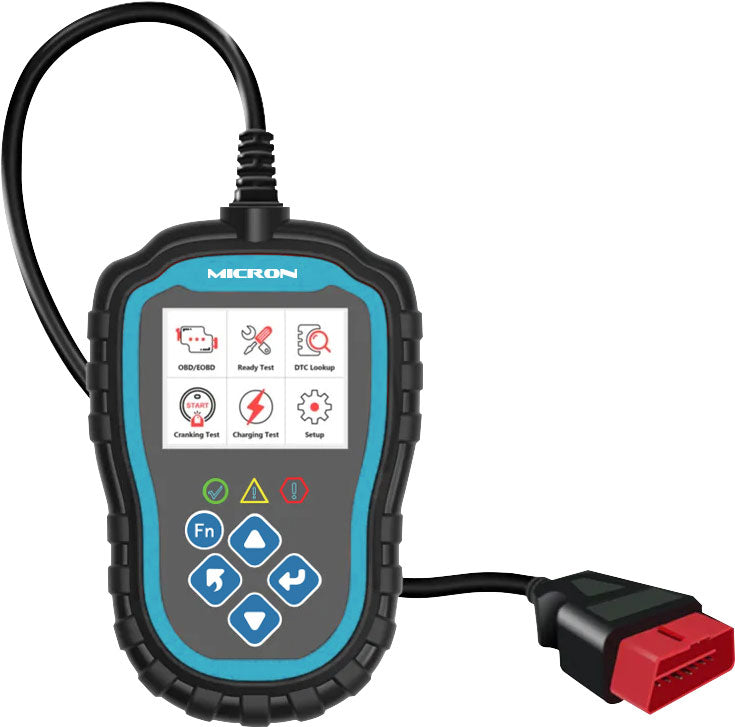

Used to check engines of all vehicles that comply with OBD II, 12V voltage with standardised 16-Pin connector. This OBDII scanner tool provides a complete solution for reading vehicle data on OBDII equipped vehicles. It detects general and vehicle specific codes and provides in depth diagnostics for system parameters. It can also provide testing of the vehicle battery charging system and cranking battery test.
Features
- Reads trouble codes on most vehicles
- Displays general and vehicle specific codes
- View vehicle information
- View real-time data streams
- An essential automotive diagnostic tool
Specifications
- Support data stream type: 249
- Fault code analysis number: 16929
- Operating voltage: 8V to 25V
- Operating current: 52mA (Max)
- Operating temperature: -20°C to 70°C
- Storage Temperature: -30°C to 80°C
- Display: 2.4” TFT Colour Screen

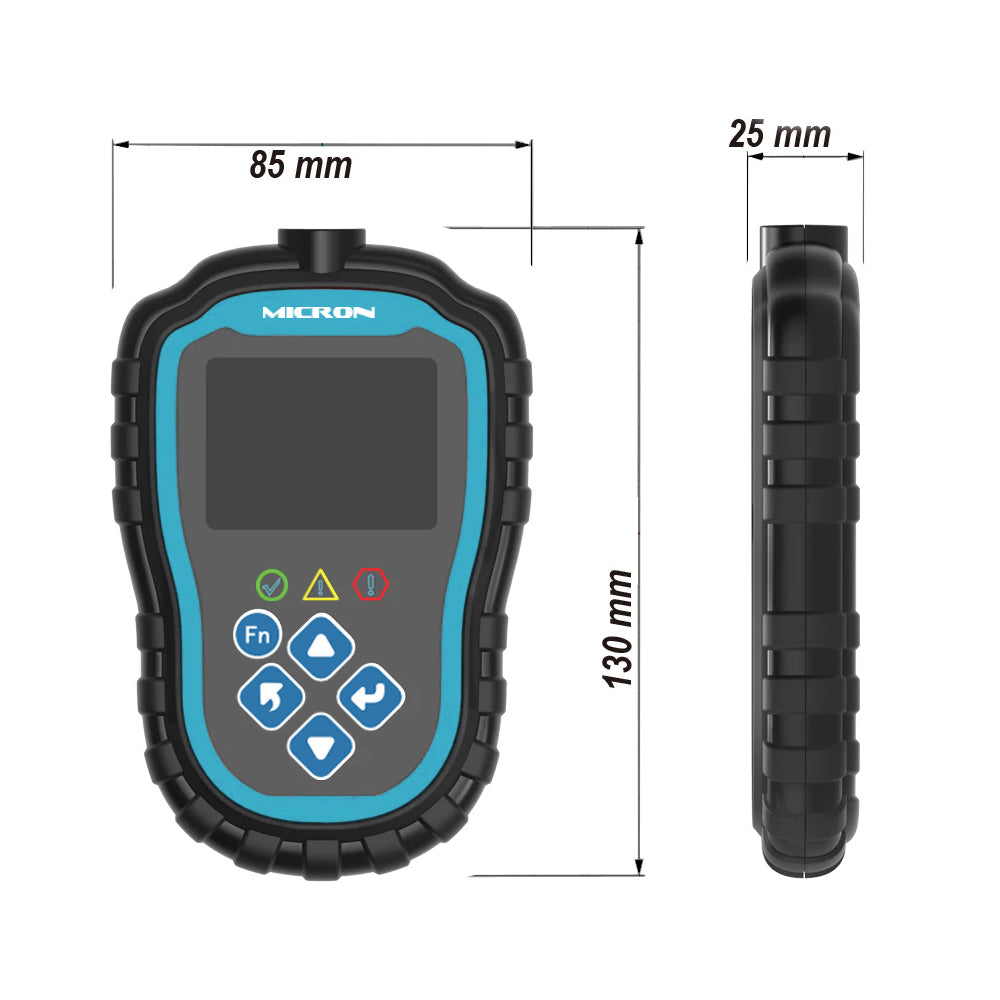

- Dimensions: (L)132 x (W)85 x (H)22mm
Supports OBDII protocols:
- 1. SAE J1850 VPW
- 2. ISO 9141-2
- 3. ISO 14230-4 (KWP 5BAUD)
- 4. ISO 15765-4 (CAN 11/500)
- 5. ISO 15765-4 (CAN 29/500)
- 6. SAE J1850 PWM
- 7. ISO 14230-4 (KWP FAST)
- 8. ISO 15765-4 (CAN 11/250)
- 9. ISO 15765-4 (CAN 29/250)
