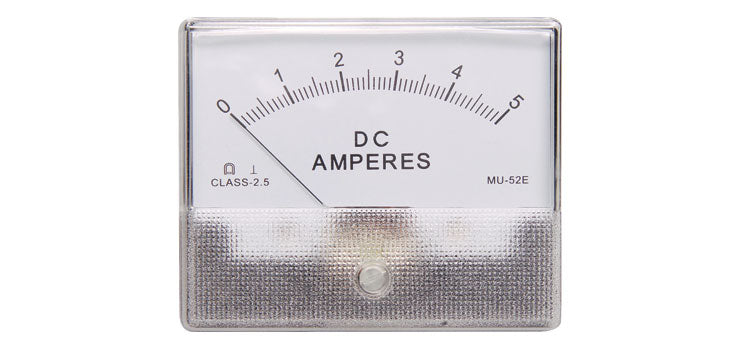

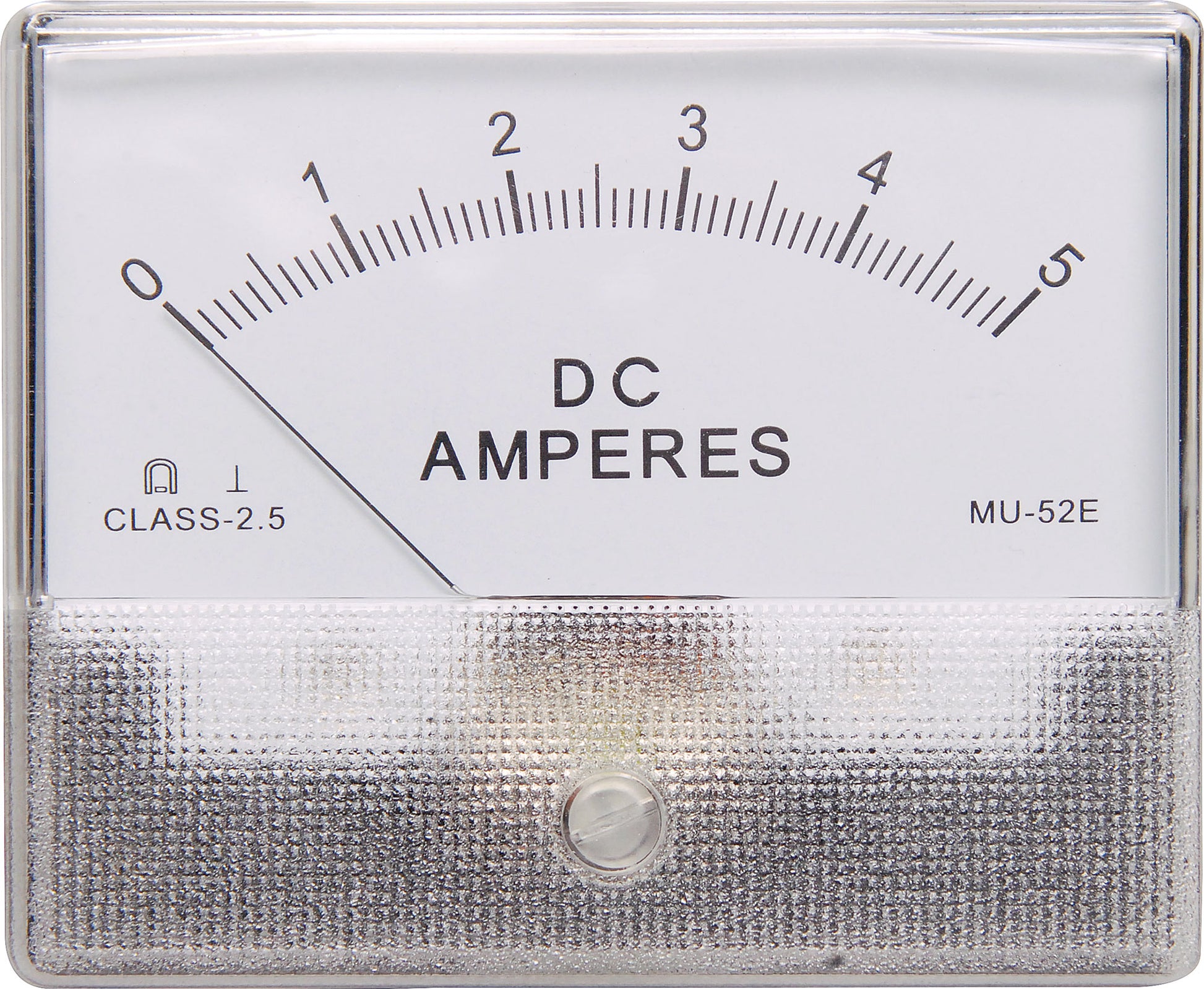

Panel Meter 0-5A 80Wx66Hmm MU52E Q0533

Bolt mounting centres 64W x 48H. 52mm hole required.
Connections via threaded nut inserts on rear panel. Nuts and washers provided.
Quality Class 2.5 MU 52 E
Overall dimensions 80W x 66H.
FSD: 5A
Resistance: 3.2 ohm

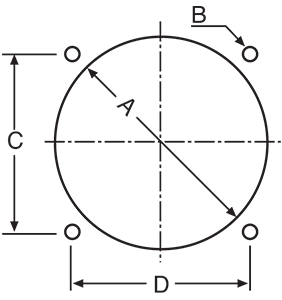

A: 52 B: 4 C: 48 D: 64
All dimensions in mm
