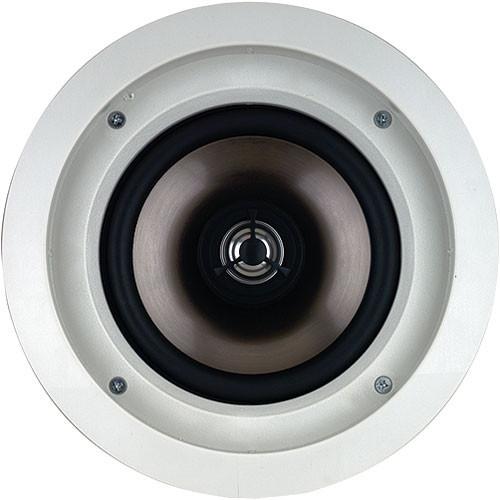

Paradigm In Ceiling 2 Way Speakers 15-80W White CS60R

SKU: 20024550


Sit back and enjoy exceptional sound reproduction at an affordable price with the Infinity CS Series CS60R 2-Way Round In-Ceiling Speaker. This stylish series was designed for both professional and entertainment enthusiasts with the capability to deliver a full, clear, and tight sound response for applications where space is limited. Built with a powerful 6-1/2" woofer, 1" pivoting tweeter, and 100W of peak power - this speaker is an ideal solution for home theater, whole house audio systems, and anywhere quality, in-ceiling sound projection is required.

In addition, this speaker offers great features such as high-frequency acoustical waveguide technology, space-saving flush-mount design, and a rubber surround woofer. The Infinity CS60R reproduces a full range of audio frequencies to complement a variety of your audio selections. Also, its frame and grille can be painted to match any decor.

Pivoting Tweeter Design

It has the ability direct the high frequencies toward your listening position by incorporating a unique pivoting dome tweeter. For optimal performance, the loudspeakers should be placed an equal distance from your listening position and separated so that the angle between them, at the listening position, is between 40 and 60 degrees.

Flexibility and Placement

With its space-saving design of only 4-1/4" mounting depth, this speaker offers you maximum flexibility of being able to install it anywhere.

Frequency Response

With a frequency response of 50 Hz - 20 KHz, this speaker reproduces a full sound range from deep bass tones to ultra-high frequencies.

Ease of Installation

Locate your speaker location, cut the drywall, connect the speaker wires and mount the loudspeaker; it's that simple. This speaker includes a cutting template and integrated dog-ear brackets for retrofit applications, or use an optional rough-in frame for new construction.

Paintable Frame and Grille

Both the frame and grille can be painted to blend into the existing environment.


  • Flush-Mount Design
  • High-Efficient 100W Driver
  • Pivoting Tweeter
  • Versatile Placement
  • Paintable

Speaker Design


Power Rating

10 - 100W


8 ohm

Frequency Response

50 Hz - 20 KHz (±3 dB)


88 dB @ 2.83V/1M

Crossover Frequency

2600 Hz, 12 dB/octave


Not Specified by Manufacturer





1.0" (25mm) Dome (Pivoting)




6.5" (165mm) Cone


Connector Type

Spring Clip




Not Specified by Manufacturer


9.3" (233mm) Diameter

Cut-Out Size

7.9" (200mm) Diameter

Mounting Depth

4.25" (108mm)


4.5 lbs (2.0 kg)


Matte White/Paintable

Packaging Info

Package Weight

5.1 lb

Box Dimensions (LxWxH)

11.2 x 10.9 x 5.7"
