Patchcord Multimode SC-SC 5m 121-3916
Patchcord Multimode SC-SC 5m 121-3916
Regular price
$24.98
Regular price
Sale price
$24.98
Unit price
per
Taxes included.
Couldn't load pickup availability

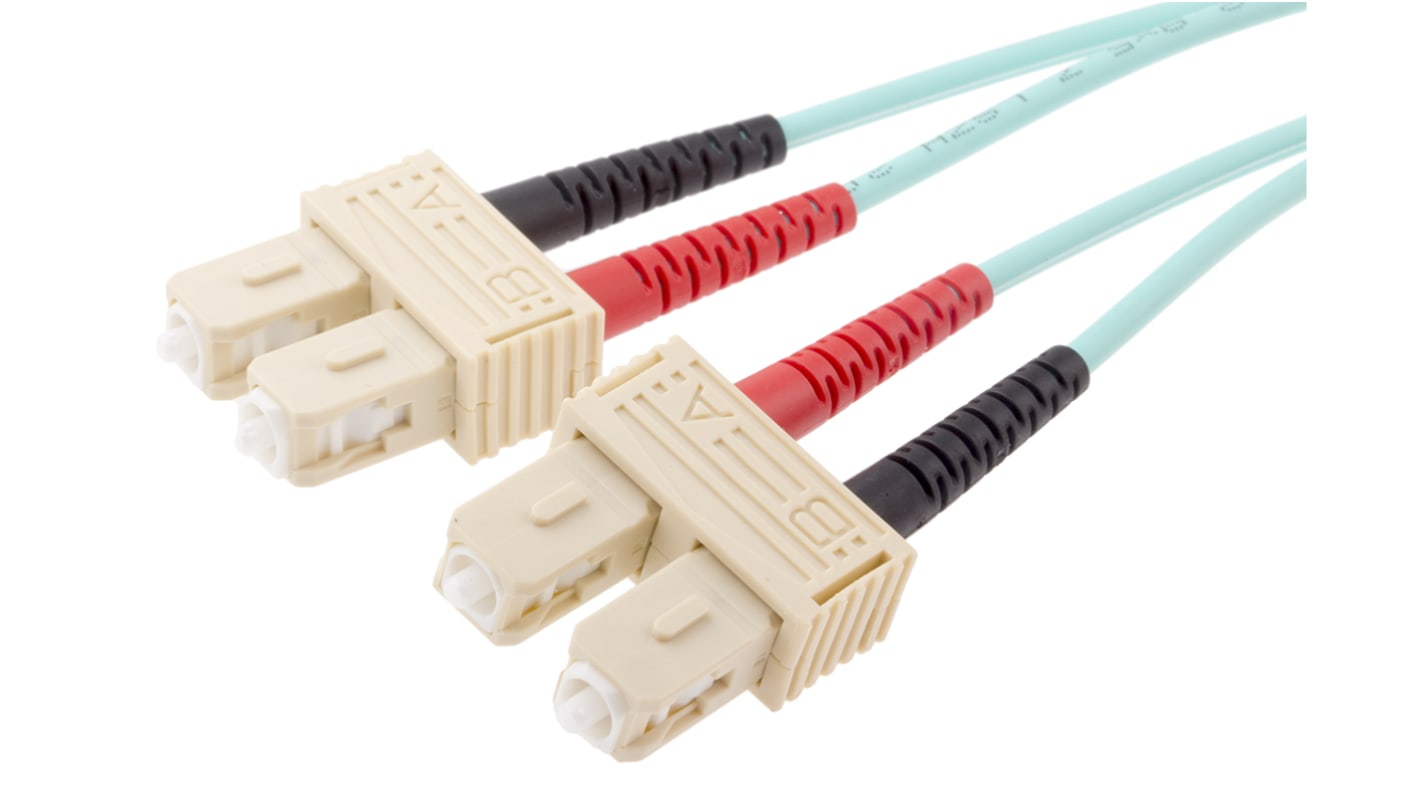

RS Pro Duplex SC-SC OM3 Fibre Optic Patchcords
From the trusted RS Pro brand, a series of SC- SC fibre optic cable assemblies. These superior quality cable assemblies are designed to connect high speed and legacy networks like 10/40/100 Gbit Ethernet and Ethernet. These multimode fibre patch cords have a core fibre size of 50/125 and are terminated with standard SC connectors at each end providing maximum optical performance. The OM3 duplex cables in this range have LSZH aqua jackets and come in various lengths.
Features and Benefits
- Low smoke zero halogen
- 900um / 600um tight buffer
- REACH and RoHS material compliant
- High optical performance
Applications
Data centres
Premises cabling in data networks, backbone, riser and horizontal
Supports video, data and voice
Premises cabling in data networks, backbone, riser and horizontal
Supports video, data and voice
Specifications
|
Attribute
|
Value
|
|---|---|
| Connector 1 | SC |
| Length | 5m |
| Propagation Mode | Multi Mode |
| Connector 2 | SC |
| Terminated/Unterminated | Terminated |
| Core Diameter | 900µm |
| Sheath Colour | Blue |
| Cable Construction | Duplex |
| Fibre Type | OM3 |
| Maximum Operating Temperature | +60°C |
| Minimum Operating Temperature | -20°C |
| Sheath Material | Low Smoke Zero Halogen (LSZH) |
| Attenuation | 0.8 dB |
| Standards Met | 2011/65/EU, EIA-TIA, IEC, IEC 61300-2-1, IEC 61300-2-12, IEC 61300-2-2, IEC 61300-2-4, IEC 61300-2-5, IEC 61300-3-34, IEC 61300-3-4, IEC 61300-3-6, IEC 61754-4, REACH/SvHC Compliant |
