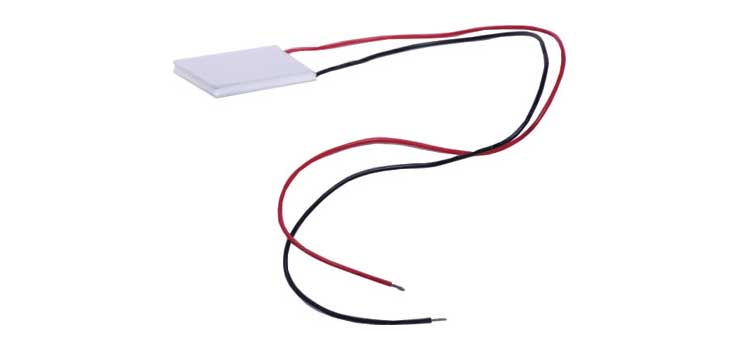

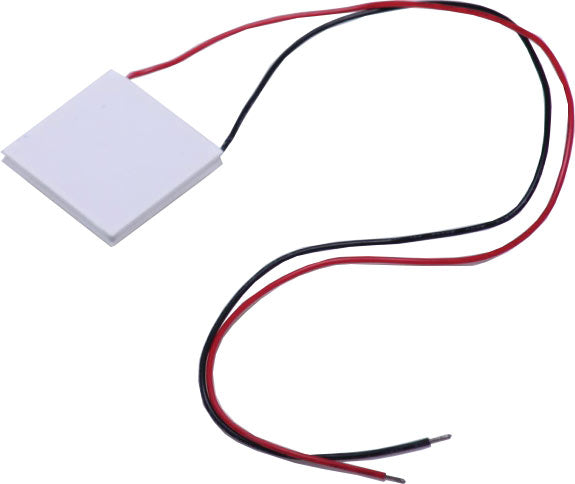

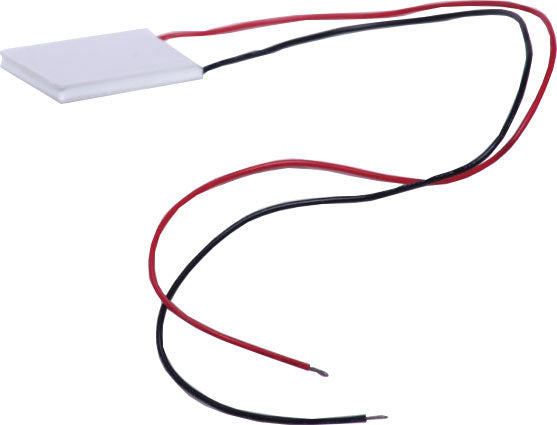

Peltier Module 40mm 6A Z1682

Peltier Module 40mm 6A Z1682

Regular price $21.95
Regular price Sale price $21.95
Sale Sold out
Taxes included.

Uses the Peltier effect to transfer heat. Essentially creating a ‘cold side’ and a ‘hot side’ on the device. Applications include biomedical instruments, consumer products like thermoelectric cooling water coolers, thermoelectric refrigerator, industrial equipment, laboratory and scientific instruments etc. 320mm fly leads.

Note: Must be used with appropriate heat sinking to prevent the peltier device from failing.

Specifications

  • Temperature Differential (Tmax): 65-68°C
  • Input Voltage (Vmax): 15.4V DC
  • Input Current @ 15.4V DC (Imax): 6.1A
  • Max Cooling Power (Qmax): 51W
  • Size: 40 x 40 x 4.0mm
