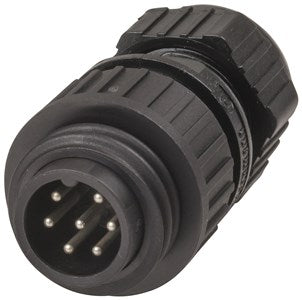

Plug Amphenol 6 Pole and Pre-earth CA Series Line Plug PP1000
Plug Amphenol 6 Pole and Pre-earth CA Series Line Plug PP1000
Regular price
$23.95
Regular price
Sale price
$23.95
Unit price
per
Taxes included.
Pickup available at Leading Edge Electronics Gladstone Hi-Fi
Usually ready in 24 hours
Hirschmann C16-1 Series or similar connectors offer 4 or 7 way (3 and 6 with plus a P.E. - or pre-engaging - earth contact). For further technical information see specifications. A quality industry-standard connector.
Features:
- Electrical: 6 Pole + PE
- Contact Resistance: <5mohm
Environmental:
- Temperature range: -40°C to + 100°C
- Housing: Polyamide 6.6
- Strain Relief: Screw clamp/Ring and Gland Nut (9mm)
Features:
- Electrical: 6 Pole + PE
- Contact Resistance: <5mohm
Environmental:
- Temperature range: -40°C to + 100°C
- Housing: Polyamide 6.6
- Strain Relief: Screw clamp/Ring and Gland Nut (9mm)
Specifications
| AC Voltage rating : 380V |
| DC current rating : 10A |
| DC Voltage : 450V |
| IP Rating : IP67 |
| IP Rating certificate : true |
| Packaged Volume : 0.06l |
| Packaged Weight : 0.03kg |
| Packaged Length : 7cm |
| Packaged Width : 3cm |
| Packaged Height : 3cm |
| Plug or Socket Type : C16-1 Series |
| Device : Plug |
| Attachment Method : Solder Tag |
| Pack Quantity : 1pc |
| Contacts / Pins : 6pc |
| Case Material : Plastic |
| Contact Material : Plated Metal |
| Insulation resistance : 10GΩ |
| Cable Entry Diameter : 0.5mm, 0.5mm |
