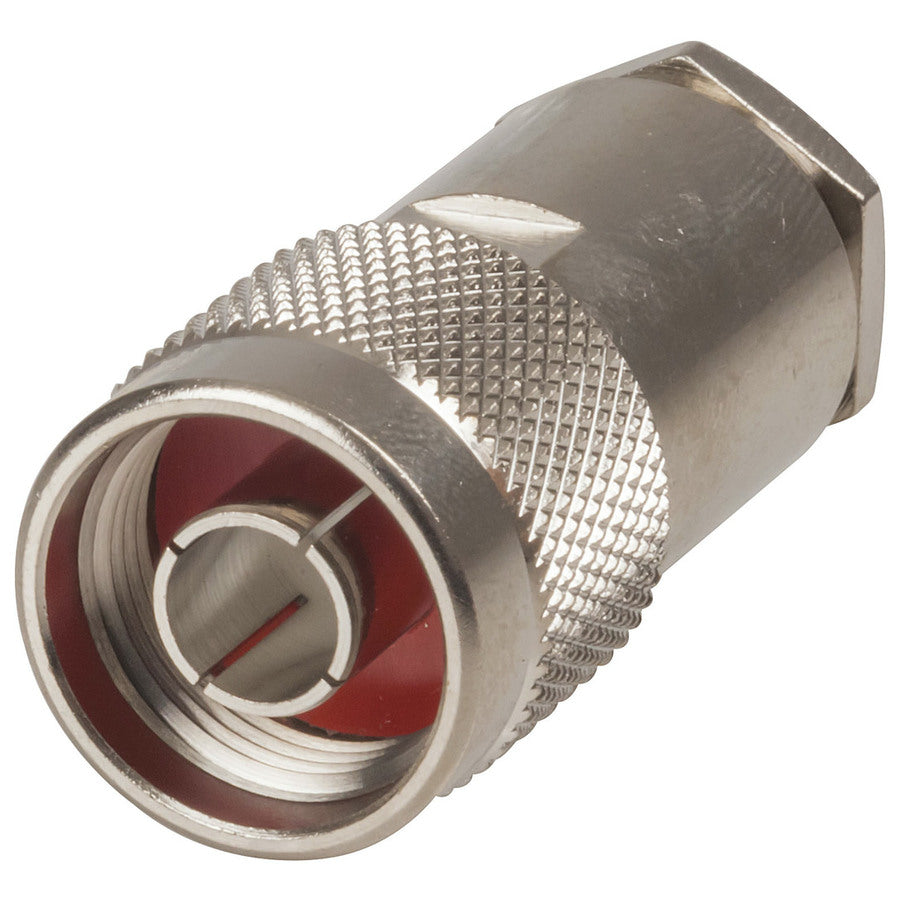

Plug N Type Solder RG213 Coax N213

'N' Plug for RG213 50 Ohm Clamp

The N213 N-type plug is a commercial quality crimp centre, crimp outer style. It is a quality Nickel plated product with Gold finish on the centre pin contact & also the soldering surface (inside of centre pin). Unlike silver-plated connectors, it has a high resistance to tarnishing. The shield is crimped.

• N213 N-Type connector for use with 56MM-E213 series cable and RG213
• Impedance: 50Ω nominal
• The shield screw thread connection conforms to the proper 5/8”-24UNEF-2B standard imperial thread.
• Constructed with a brass body with nickel plating and a gold plated pin.
• Captive pin
• Teflon dielectric
