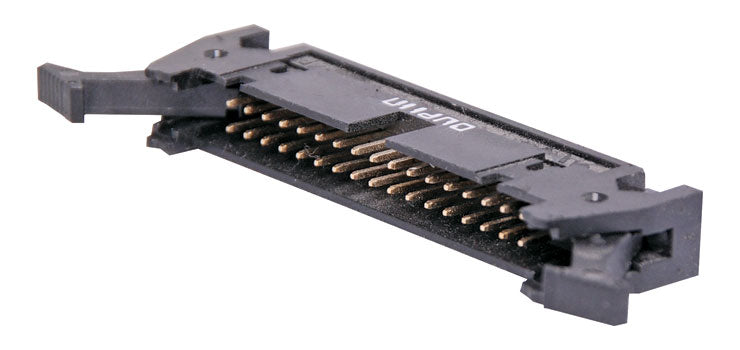

Pluggable Header 34 Pin Vertical PCB Mount Locking Header P5134

Pluggable Header 34 Pin Vertical PCB Mount Locking Header P5134

$2.70
$2.70
Sale Sold out
Taxes included.

Quality Oupiin 3011 series PCB locking header with 34 pins. 2.54mm (0.1") pin spacing. Available in either straight pin or 90 degree pin versions.

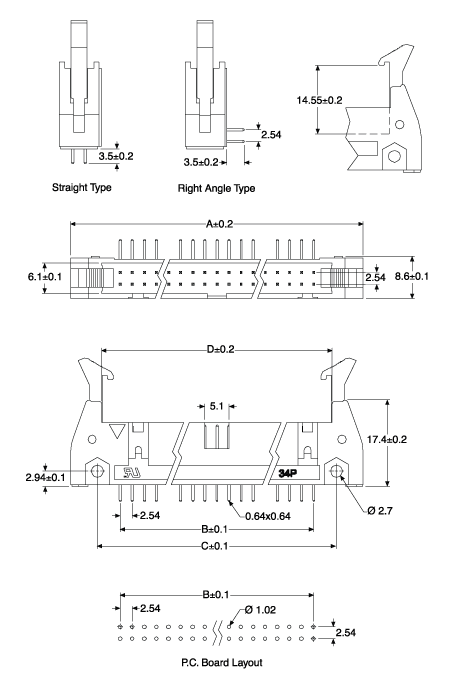

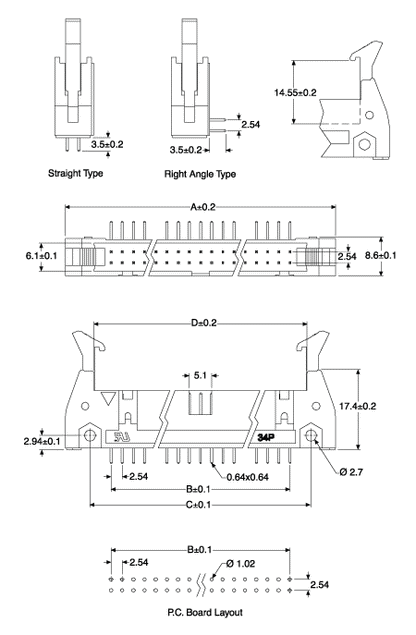

Dimensions:
A: 62
B: 41
C: 52
D: 48.5

Datasheet

Specifications

  • Contact Resistance: 30M Ohm max @ 100mA DC
  • Insulator Resistance: 1000M Ohm @ 500V DC
  • Current Rating: 1 A
  • Contact Material: Gold plated brass
  • Housing: PBT & 30% Glass Fibre
