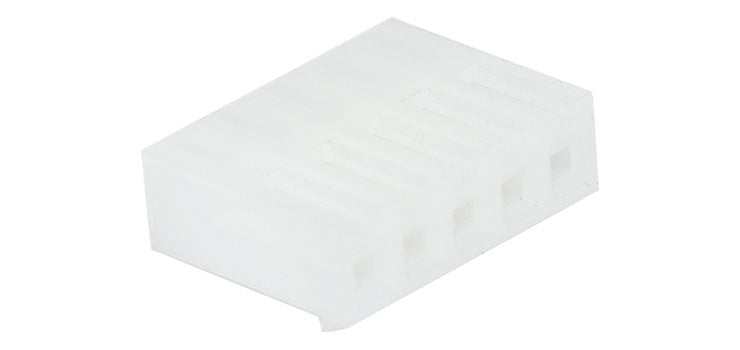

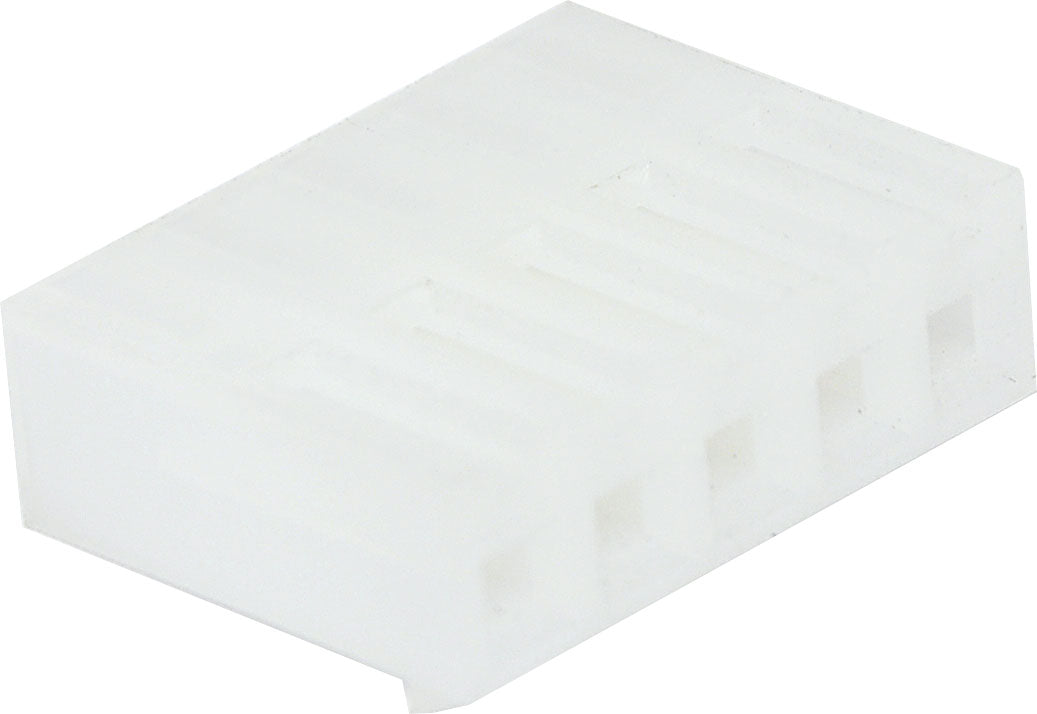

Pluggable Header 5 Way 3.96mm Crimp Housing P5645
Pluggable Header 5 Way 3.96mm Crimp Housing P5645
Regular price
$1.00
Regular price
Sale price
$1.00
Unit price
per
Taxes included.
Couldn't load pickup availability
5 Way.
Header Plug.
3.96mm Spacing.
Rated at 7A.
Crimp pins sold separately.
Specifications
Material
- Housing: Nylon 66 flame retardant UL94V-2
- Contacts: Tin plated brass
- Recommended wire: 18AWG -24AWG
Electrical
- Current rating: 7A
- Insulator resistance: 5000MΩ min. @ 5000V AC
- Contact resistance: 20mΩ max @ 100mA DC.
- Operating temperature: -25ºC - +85ºC
