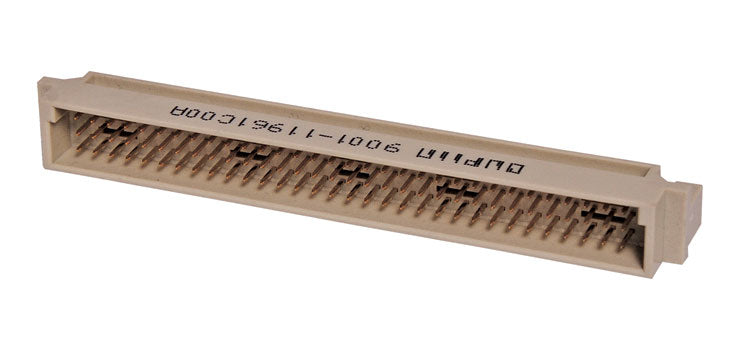

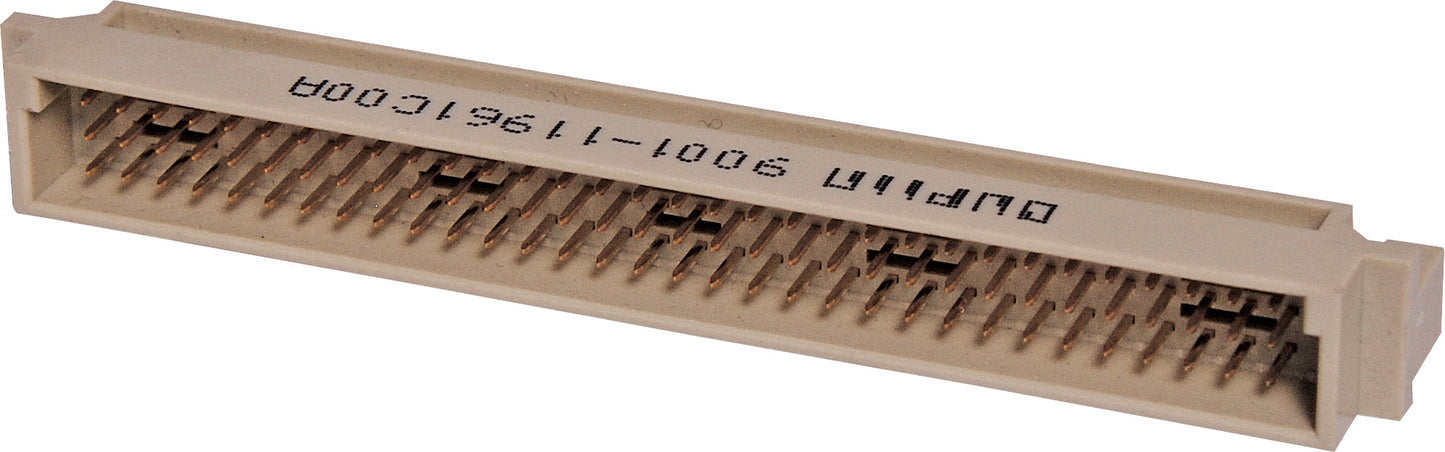

Pluggable Header 96 Pin Male Rows A-B&C 90 Deg. PCB Mount DIN 41612 P4896

Moulded glass-filled polyester connectors to DIN 41612 with gold-finished contacts. The plug moulding houses single piece 90° angled pins on a 0.1 inch pitch between rows, allowing horizontal mounting on Eurocards whilst the mating sockets have flow solder (4mm) spills. “B” (two row) and “C” (three row) types are available. They also feature integral moulded polarising tabs. Right angle connectors are male gender and straight pin connectors are female.
