Pluggable Headers 10 Pin Right Angle PCB Mount Locking Header P5210

Pluggable Headers 10 Pin Right Angle PCB Mount Locking Header P5210

$1.50
$1.50
Sale Sold out
Taxes included.

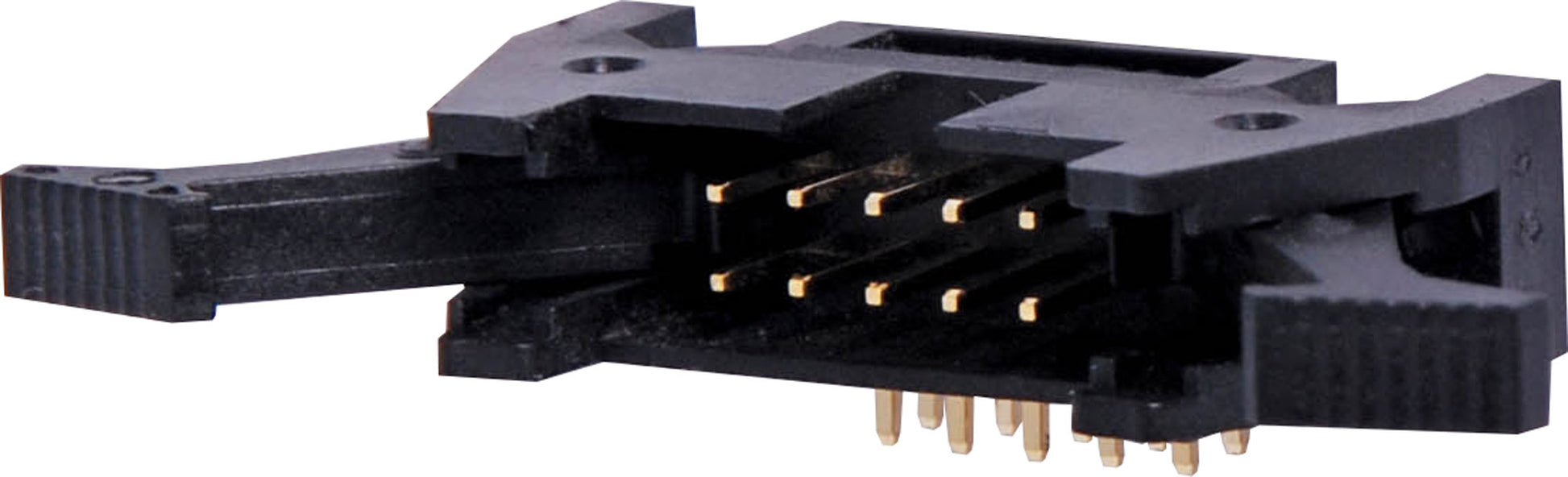

Quality Oupiin 3011 series PCB locking header with 10 pins. 2.54mm (0.1") pin spacing. Available in either straight pin or 90 degree pin versions.

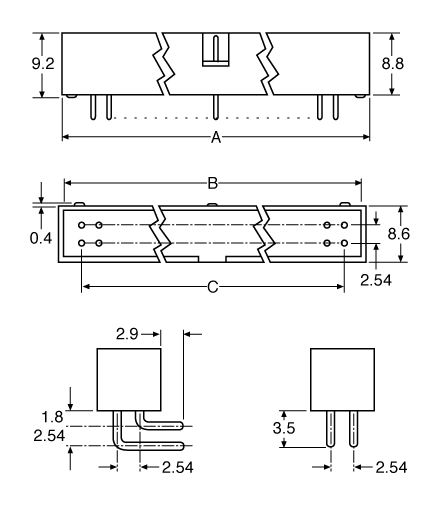

Dimensions:
A: 32
B: 10
C: 22
D: 18

Datasheet

Specifications

  • Contact Resistance: 30M Ohm max @ 100mA DC
  • Insulator Resistance: 1000M Ohm @ 500V DC
  • Current Rating: 1 A
  • Contact Material: Gold plated brass
  • Housing: PBT & 30% Glass Fibre
