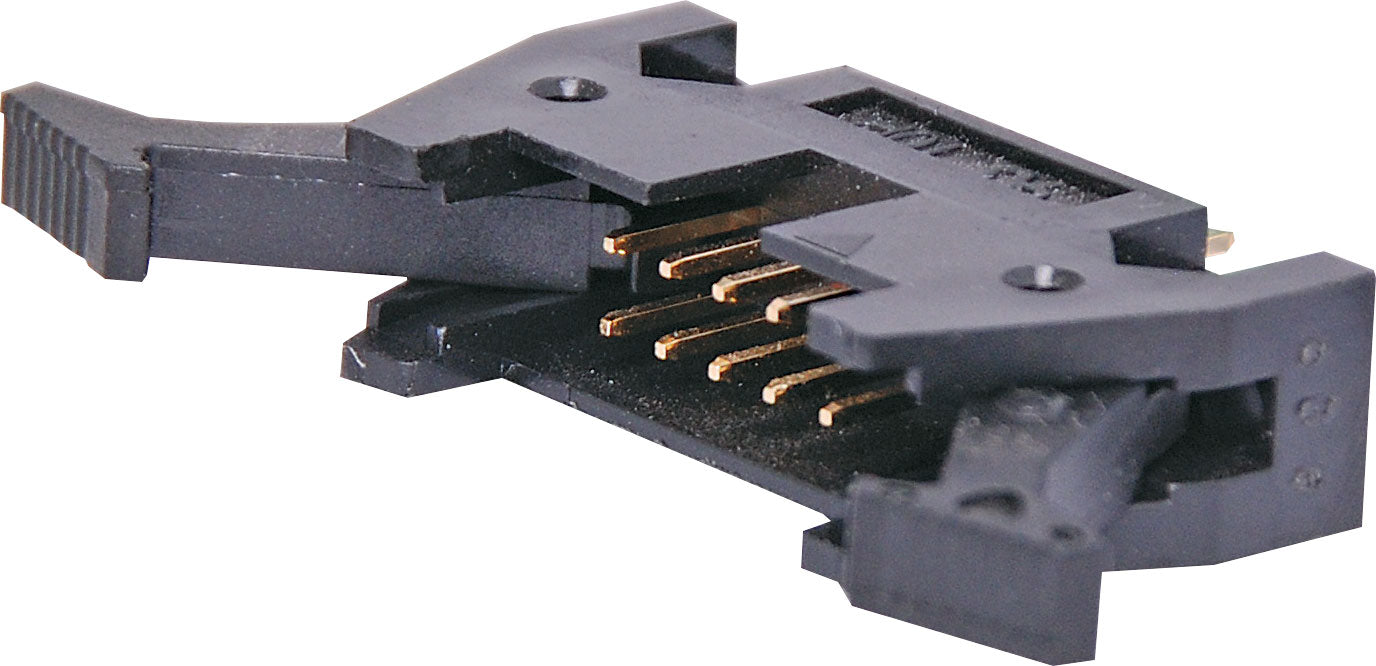

Quality Oupiin 3011 series PCB locking header with 10 pins. 2.54mm (0.1") pin spacing. Available in either straight pin or 90 degree pin versions.

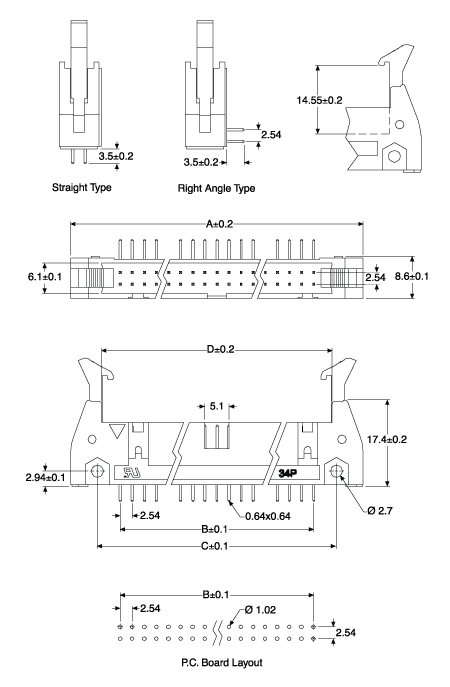

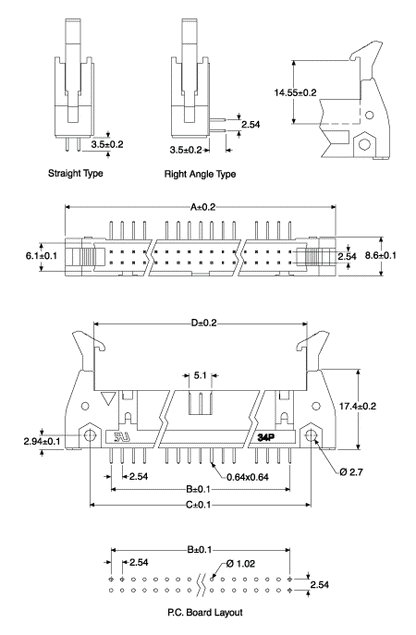

Dimensions:
A: 32
B: 10
C: 22
D: 18
Datasheet
- Contact Resistance: 30mΩ max @ 100mA DC
- Insulator Resistance: 1000MΩ @ 500V DC
- Current Rating: 1A
- Contact Material: Gold plated brass
- Housing: PBT & 30% Glass Fibre
