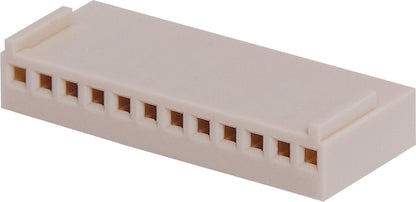

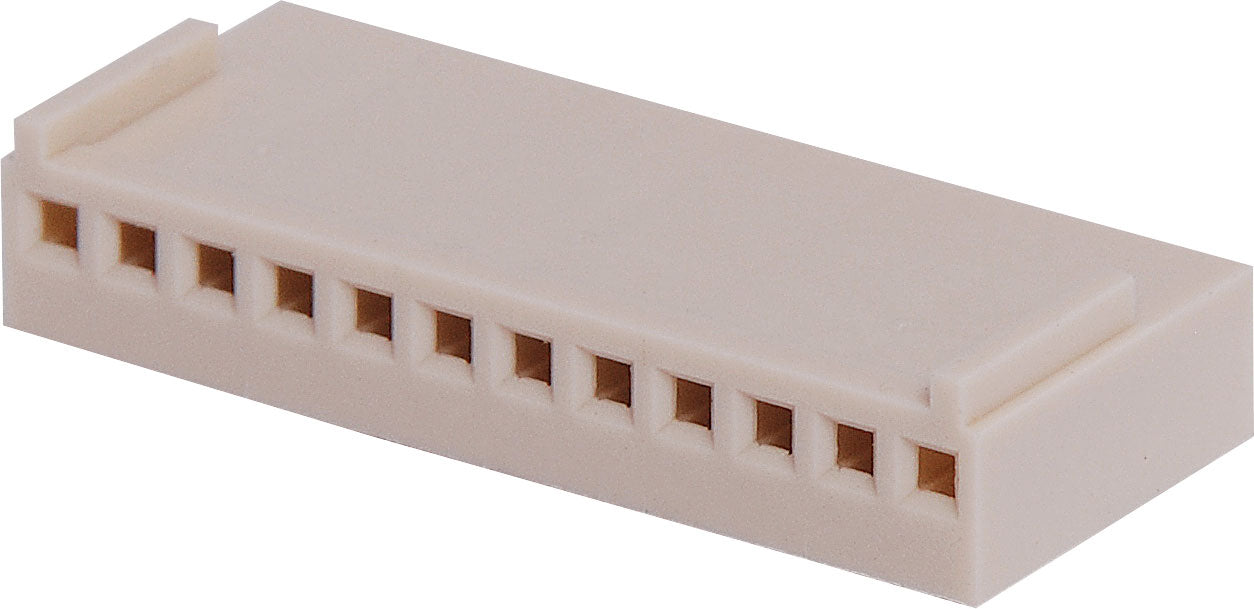

Pluggable Headers 12 Way 2.54mm Crimp Housing P5482

Pluggable Headers 12 Way 2.54mm Crimp Housing P5482

$1.85
$1.85
Sale Sold out
Taxes included.

12 Way.
Header Plugs.
2.54mm Spacing.
Rated at 2A.

Crimp pins sold separately

Datasheet

Specifications

Material

  • Housing: Nylon 66 flame retardant UL94V-2
  • Contacts: Tin plated brass
  • Recommended wire: 22AWG -28AWG

Electrical

  • Current rating: 2A
  • Insulator resistance: 1000MΩ min. @ 250V AC
  • Contact resistance: 10mΩ max.
  • Operating temperature: -25ºC - +85ºC
