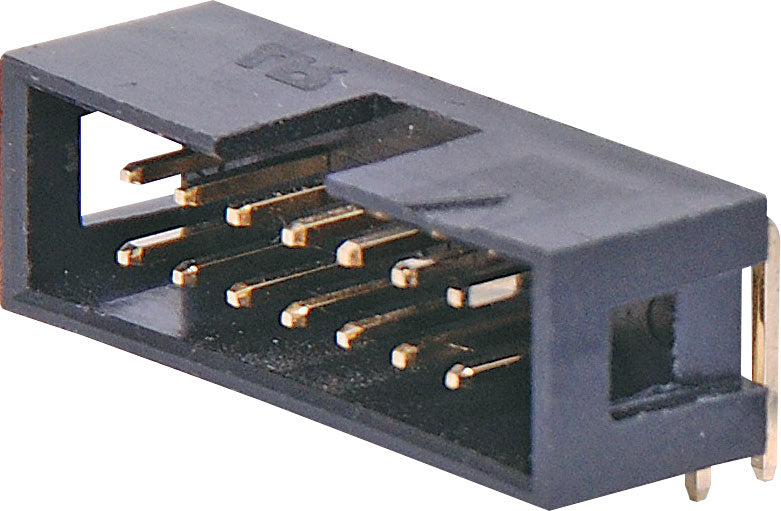

Quality Oupiin 3012 series PCB mount boxed header with 14 pins. 2.54mm (0.1") pin spacing. Available in either straight pin or 90 degree pin versions.

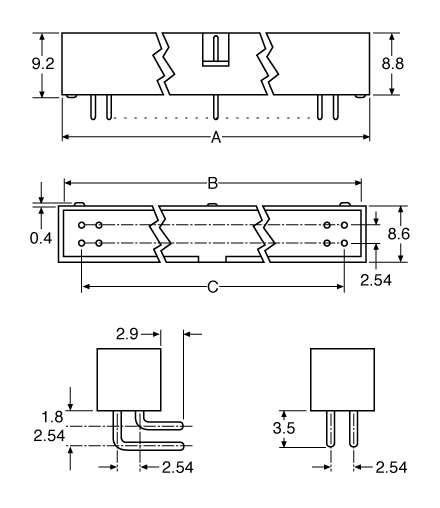

Dimensions:
A: 25.5
B: 23
C: 15
Specifications
- Contact Resistance: 30M Ohm max @ 100mA DC
- Insulator Resistance: 1000M Ohm @ 500V DC
- Current Rating: 1 A
- Contact Material: Gold plated brass
- Housing: PBT & 30% Glass Fibre
