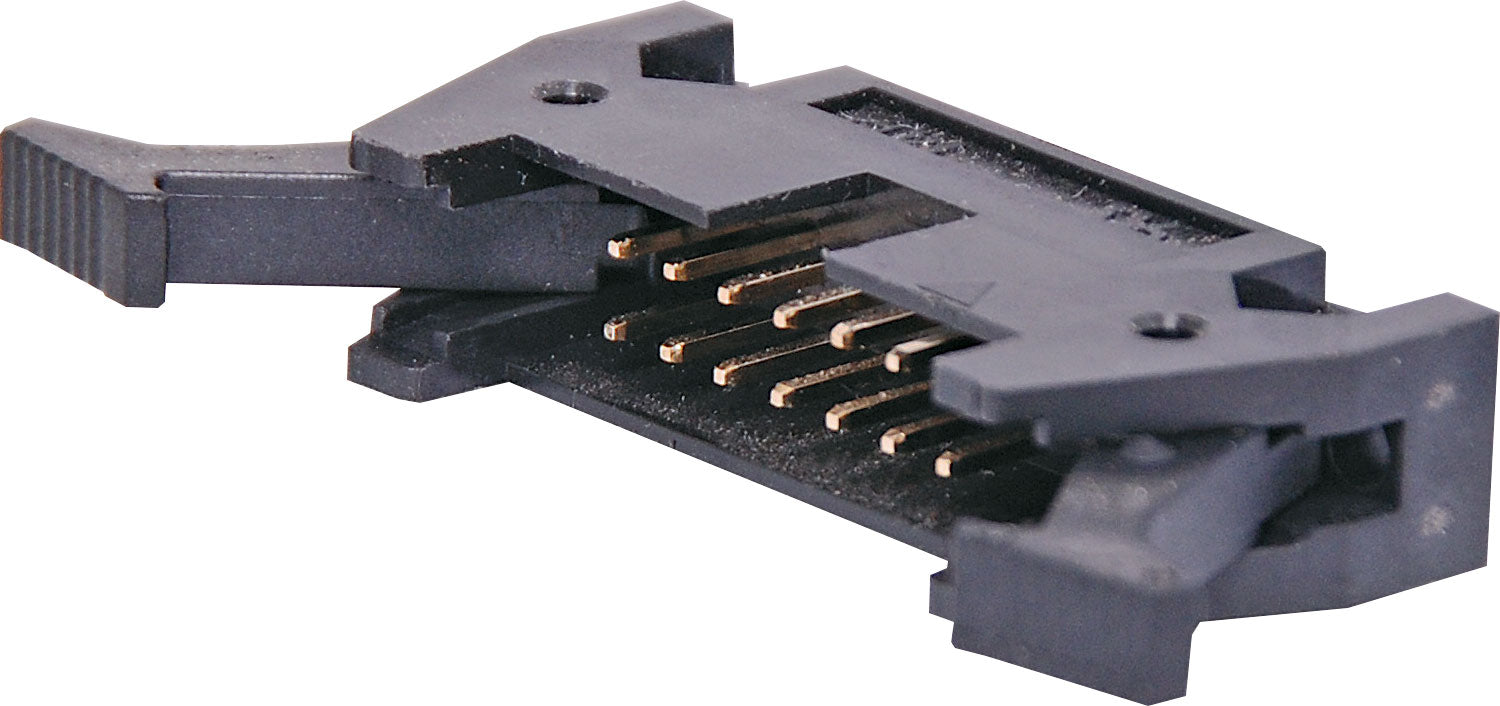

Quality Oupiin 3011 series PCB locking header with 14 pins. 2.54mm (0.1") pin spacing. Available in either straight pin or 90 degree pin versions.

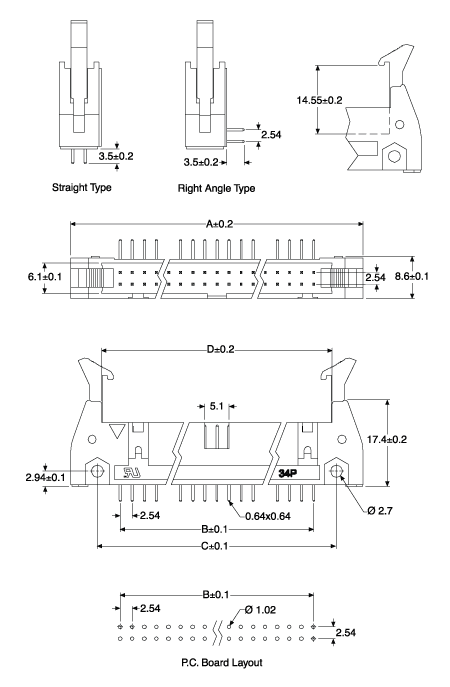

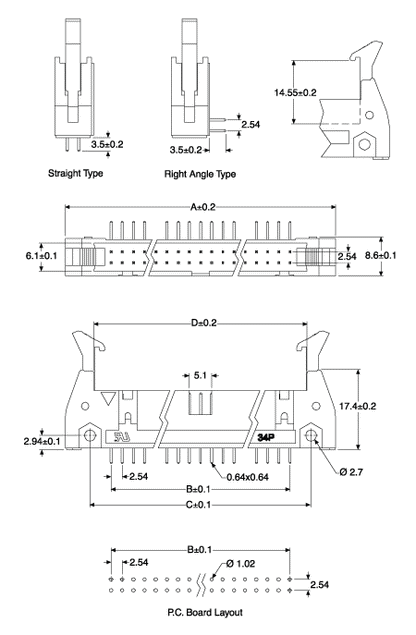

Dimensions:
A: 37
B: 15
C: 27
D: 23
Specifications
- Contact Resistance: 30M Ohm max @ 100mA DC
- Insulator Resistance: 1000M Ohm @ 500V DC
- Current Rating: 1 A
- Contact Material: Gold plated brass
- Housing: PBT & 30% Glass Fibre
