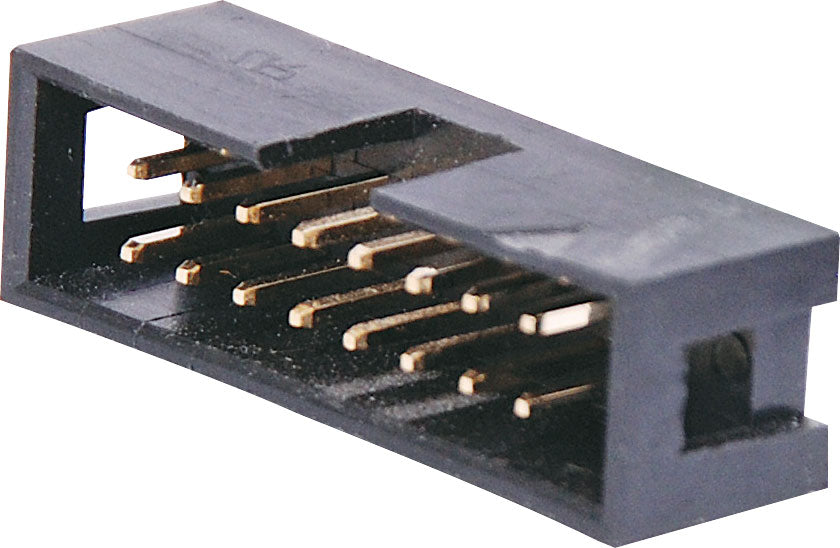

Pluggable Headers 16 Pin Vertical PCB Mount Boxed Header P5016
Pluggable Headers 16 Pin Vertical PCB Mount Boxed Header P5016
Regular price
$1.40
Regular price
Sale price
$1.40
Unit price
per
Taxes included.
Couldn't load pickup availability
Quality Oupiin 3012 series PCB mount boxed header with 16 pins. 2.54mm (0.1") pin spacing. Available in either straight pin or 90 degree pin versions.

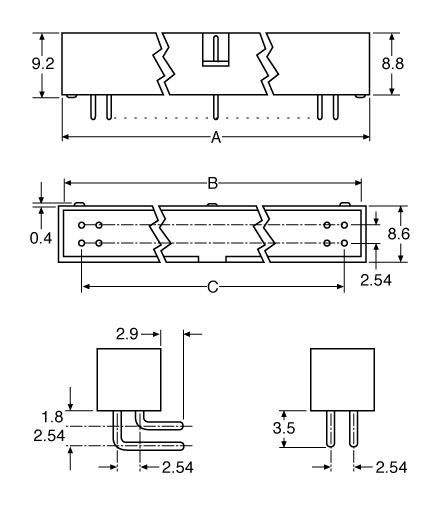

Dimensions:
A: 28
B: 26
C: 18
Specifications
- Contact Resistance: 30M Ohm max @ 100mA DC
- Insulator Resistance: 1000M Ohm @ 500V DC
- Current Rating: 1 A
- Contact Material: Gold plated brass
- Housing: PBT & 30% Glass Fibre
