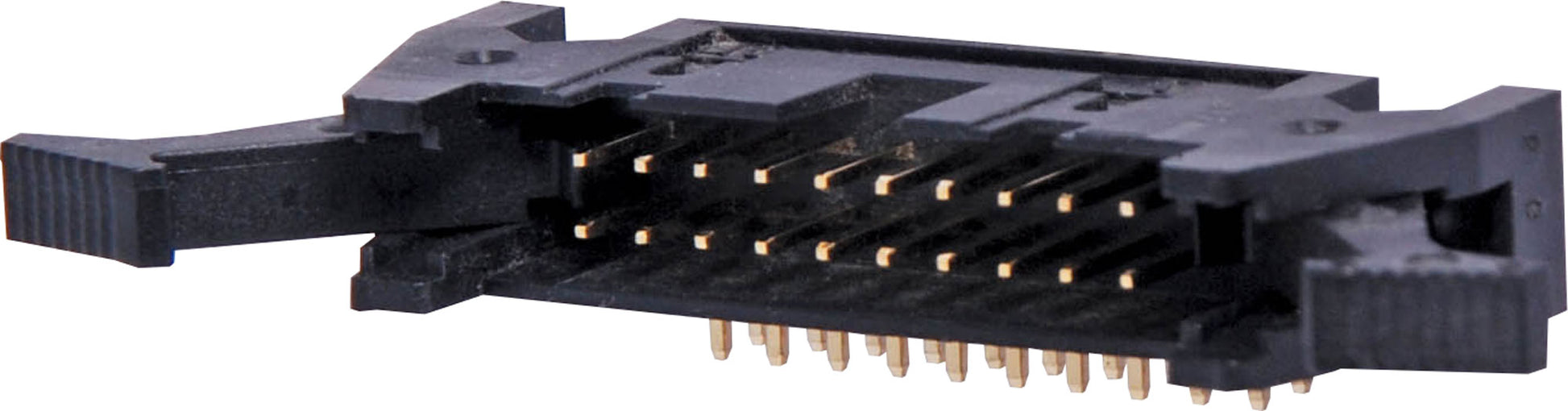

Pluggable Headers 20 Pin Right Angle PCB Mount Locking Header P5220
Pluggable Headers 20 Pin Right Angle PCB Mount Locking Header P5220
Regular price
$2.00
Regular price
Sale price
$2.00
Unit price
per
Taxes included.
Couldn't load pickup availability
Quality Oupiin 3011 series PCB locking header with 20 pins. 2.54mm (0.1") pin spacing. Available in either straight pin or 90 degree pin versions.

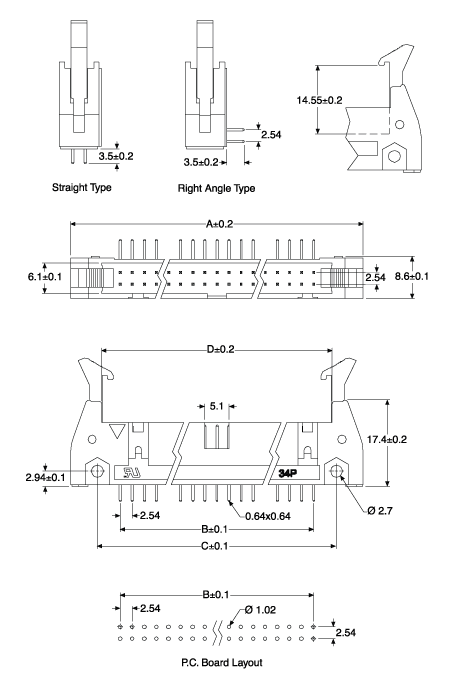

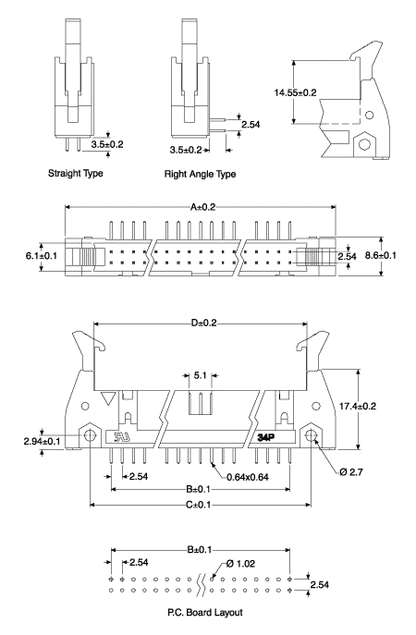

Dimensions:
A: 45
B: 23
C: 34.5
D: 31
Specifications
- Contact Resistance: 30M Ohm max @ 100mA DC
- Insulator Resistance: 1000M Ohm @ 500V DC
- Current Rating: 1 A
- Contact Material: Gold plated brass
- Housing: PBT & 30% Glass Fibre
