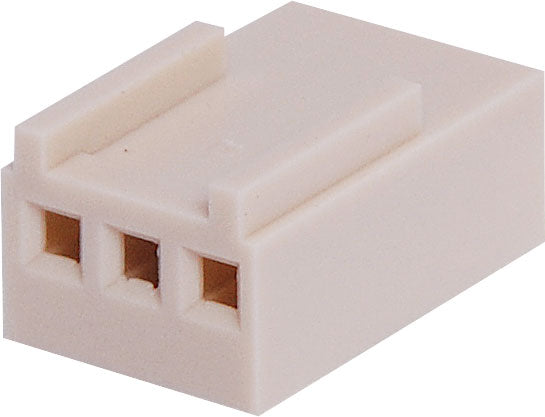

Pluggable Header 3 Way 2.54mm Crimp Housing P5473
Pluggable Header 3 Way 2.54mm Crimp Housing P5473
Regular price
$0.40
Regular price
Sale price
$0.40
Unit price
per
Taxes included.
Couldn't load pickup availability
3 Way.
Header Plugs.
2.54mm Spacing.
Rated at 2A.
Crimp pins sold separately
Specifications
Material
- Housing: Nylon 66 flame retardant UL94V-2
- Contacts: Tin plated brass
- Recommended wire: 22AWG -28AWG
Electrical
- Current rating: 2A
- Insulator resistance: 1000MΩ min. @ 250V AC
- Contact resistance: 10mΩ max.
- Operating temperature: -25ºC - +85ºC
