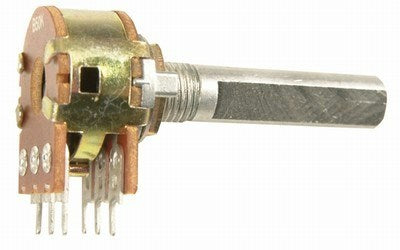

Potentiometer 100k Ohm Linear (B) Double Gang 16mm RP7712
Potentiometer 100k Ohm Linear (B) Double Gang 16mm RP7712
Regular price
$5.95
Regular price
Sale price
$5.95
Unit price
per
Taxes included.
Couldn't load pickup availability
These pots have imperial standard shaft.- Shaft is 1/4 D type (30% of shaft has been removed for flat), so they suit all our knob range.- Shaft length is 30mm, so there is plenty there if you need more length.- Power rating Linear 0.2W and Log 0.1W. Value100K
Specifications
| AC Voltage rating : 150V |
| Continuous Power : 0.12W |
| Resistance level : 100kΩ |
| Packaged Volume : 0.02l |
| Packaged Weight : 0.01kg |
| Packaged Length : 2.5cm |
| Packaged Width : 1.8cm |
| Packaged Height : 4cm |
| Potentiometer Diameter : 16mm |
| Number of Gangs : Dual gang |
| Log or Linear? : Linear |
| Potentiometer Knob Type : Imperial D |
| Potentiometer Terminal Type : Solder Legs |
| Potentiometer Shaft Length : 23.5mm |
| potentiometer nut size : 16mm metric |
| Pack Quantity : 1pc |
| Passive mount type : PanelThrough Hole |
| Passive connector type : Solder Legs |
| Component package : Metal can |
| Passive number of legs : 3 count |
| Passive marking code : Number code |
