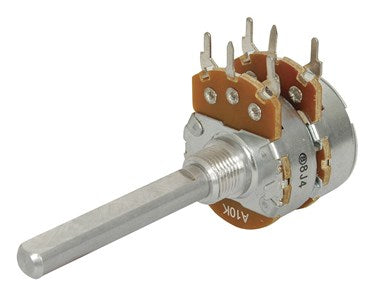

Potentiometer 10k Ohm Linear (B) Double Gang 24mm RP3706

With imperial standard shaft & bushings made to our rigid engineering specifications. They have genuine 6.35mm (1/4) shafts with a flat machined 25% of the diameter for grubscrews or interference fit knob mounting. The shaft is 38mm long. The bush is a 3/8 32 T.H.D. type which we believe is necessary for good fixing to a panel.

Another important feature of the pots is their PCB mount capability. The pins are rigidly mounted on phenolic with the centre pin offset from the two outer terminals. When soldered into a PCB, the pot is quite rigidly held on its own. Double gangpots are held in 6 places and require no extra mechanical mounting assistance. The pins are large enough to terminate screened cable, etc., if the job requires hard wiring. An engineering drawing appears below. You may safely use it to design PCB artwork etc., as we have standardised this design.

Features:

• Value10K
• Power rating is 0.5W max

Specifications
