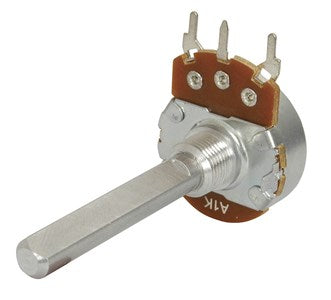

Potentiometer 1M Ohm Linear (B) Single Gang 24mm RP3524

With imperial standard shaft & bushings made to our rigid engineering specifications. The potentiometers are full size - 24mm diameter types . Power rating is 0.5W max. They have genuine 6.35mm (1/4) shafts with a flat machined 25% of the diameter for grubscrews or interference fit knob mounting. The shaft is a generous 38mm long. The bush is a 3/8 32 T.H.D. type which we believe is necessary for good fixing to a panel.

Another important feature of the pots is their PCB mount capability. The pins are rigidly mounted on phenolic with the centre pin offset from the two outer terminals. When soldered into a PCB, the pot is quite rigidly held on its own. Double gangpots are held in 6 places and require no extra mechanical mounting assistance. The pins are large enough to terminate screened cable, etc., if the job requires hard wiring. An engineering drawing appears below. You may safely use it to design PCB artwork etc., as we have standardised this design.Value 1M

Specifications

AC Voltage rating : 150V

Continuous Power : 0.5W

Resistance level : 1MΩ

Packaged Volume : 0.07l

Packaged Weight : 0.01kg

Packaged Length : 5.7cm

Packaged Width : 3.5cm

Packaged Height : 3.5cm

Potentiometer Diameter : 24mm

Number of Gangs : Single gang

Log or Linear? : Linear

Potentiometer Knob Type : Imperial D

Potentiometer Terminal Type : Solder Legs

Potentiometer Shaft Length : 38.5mm

potentiometer nut size : 24mm(3/8inch 32THD)

Pack Quantity : 1pc

Passive mount type : PanelThrough Hole

Passive connector type : Solder Legs

Component package : Metal can

Passive number of legs : 3 count

Passive marking code : Number code
