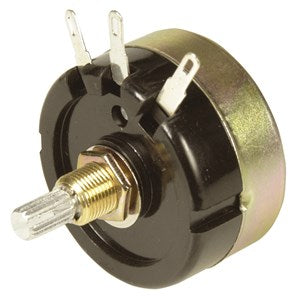

Potentiometer 5 Ohm 15 Watt Linear (B) Wire Wound RP3975
Potentiometer 5 Ohm 15 Watt Linear (B) Wire Wound RP3975
Regular price
$19.95
Regular price
Sale price
$19.95
Unit price
per
Taxes included.
Couldn't load pickup availability
Features:
Resistance: 5 Ohms
Resistance Curve: Linear (B)
Power: 15W
Shaft: Spline
Body measures: 41mm OD x 24mm Depth
Shaft Length: 20mm
9.0mm hole required
Lugs: Solder Type
Total rotation angle: 300° +/-5°
Rotation Torque: 70~400gf.cm
Stopper Strength: 10Kgf.cm
Specifications
| Continuous Power : 15W |
| Resistance level : 5Ω |
| Dimension details : Overall Dimensions |
| Height : 24mm |
| Diameter : 41mm |
| Packaged Volume : 0.09l |
| Packaged Weight : 0.04kg |
| Packaged Length : 4.5cm |
| Packaged Width : 5cm |
| Packaged Height : 4cm |
| Number of Gangs : Single gang |
| Log or Linear? : Linear |
| Potentiometer Knob Type : Metric splined |
| Potentiometer Terminal Type : Solder Tags |
| Rotation Angle : 300° |
| Rotation Torque : 70-400gf.cm |
| Stop Strength : 10kgf.cm |
| Dimensions details : Hole Required |
| Diameter : 9mm |
| Dimension details : Shaft Length |
| Length : 20mm |
