Power Adapter 24V DC 2A Appliance Power Supply Adapter M8969
Power Adapter 24V DC 2A Appliance Power Supply Adapter M8969
Couldn't load pickup availability

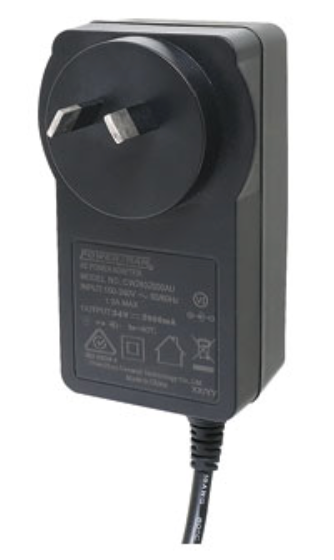

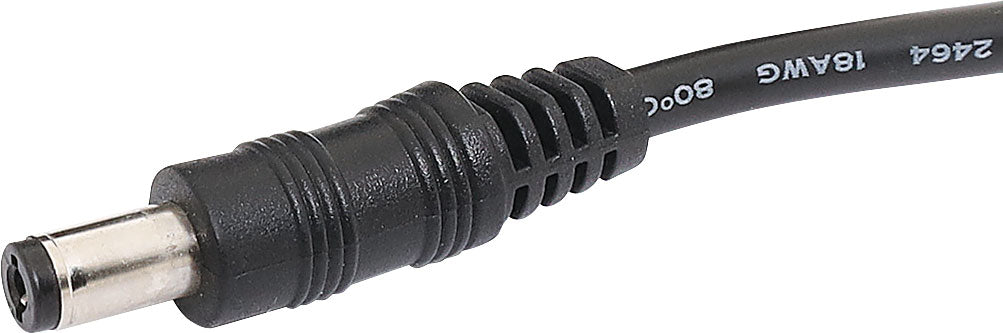

24V DC, 2A switch mode plug pack supplied with a fixed positive to tip 2.1mm DC jack (2.1ID x 5.5OD x 10L). Compact design with high current regulated output. Energy authority approved. MEPS approved. Dimensions: 40W x 61H x 44D mm.
Features
- MEPS efficiency level V
- Australian Standards Compliant
- Suitable for a range of electronic devices
- Compatible with Australian mains power point
Specifications
Input
Input Voltage Range: 90V AC to 264V AC
Rated Voltage Range: 100V AC to 240V AC
Input Frequency Range: 47Hz to 63Hz
Rated Input Frequency: 50Hz/60Hz
Input Current: 1.2A max at full load
Inrush Current (cold start): 80A typical peak, 220V AC input
Output
Output Voltage: 24V DC
Output Ripple & Noise: ≤200
Output Current: 2000mA
General
Operating Temperature: 0°C to 40°C, full load, normal operation.
Storage Temperature: -40°C to +85°C.
Relative Humidity: 5% (0°C) ~95% (40°C), 72 hours, full load, normal operation.
Barrel Length: 10mm
Plug Tip Type: 5.5mm outer diameter and 2.1mm inside diameter
Polarity: Positive centre
Cable Length: 1.2m
MEPS Efficiency Level: V
