• 4AWG 152A Black Power Cable
1 1

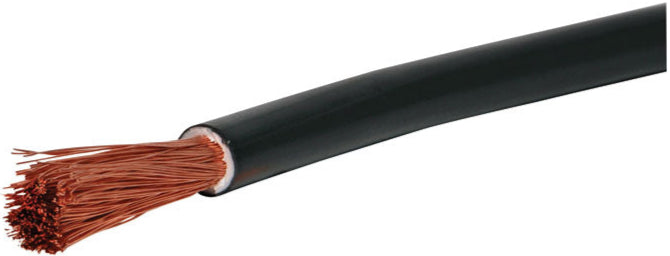

Power Cable 4AWG 152A Black Sold by the Meter W4208A

Power Cable 4AWG 152A Black Sold by the Meter W4208A

$12.95
$12.95
Sale Sold out
Taxes included.

This high current capacity cable is suitable for connection between battery banks and inverters.

Data Sheet

Specifications

Conductor

  • Material: Bare Copper
  • AWG: 20.20mm2 × 1C (4AWG)
  • Construction: 287/0.30mm±0.01mm
  • Stranded Diameter: 6.77mm

Jacket

  • Material: PVC
  • Average Thickness: 0.69mm
  • Cable Diameter: 8.15±0.15mm
  • Jacket Colour: Inside White, Outside Black

Physical and Electrical Characteristics

  • Rated Voltage: 300V DC
  • Rated Temperature: 90°C
  • Rated Current: 152 Amps
  • Maximum DC Resistance: 0.00091M Ω
  • Tensile Strength: ≥10.3 Mpa (Insulation and Jacket)
  • Elongation: ≥100% upward (Insulation)
  • Dielectric Strength: 2kV/min (Insulation in water)
