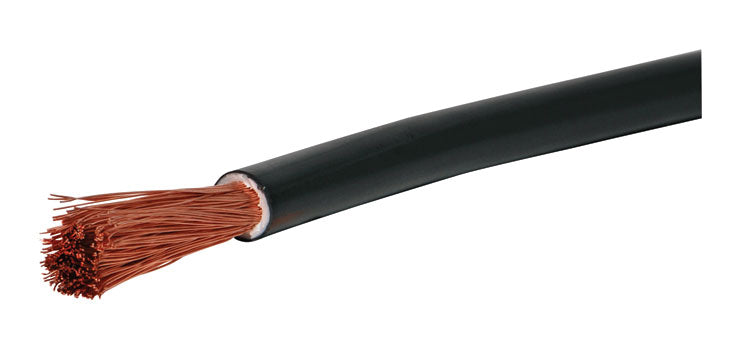

Power Cable 8AWG 90A Black Sold by the Meter W4218A

This high current capacity cable is suitable for connection between battery banks and inverters.

Conductor
Material: Bare Copper
AWG: 8.41mm2 × 1C (8AWG)
Construction: 119/0.30mm±0.01mm
Stranded Diameter: 4.36mm

Jacket
Material: PVC
Average Thickness: 0.82mm
Cable Diameter: 6.0±0.15mm
Jacket Colour: Red Transparent

Physical and Electrical Characteristics
Rated Voltage: 300V DC
Rated Temperature: 90°C
Rated Current: 90 Amps
Maximum DC Resistance: 0.00220M Ω
Tensile Strength: ≥10.3 Mpa (Insulation and Jacket)
Elongation: ≥100% upward (Insulation)
Dielectric Strength: 2kV/min (Insulation in water)
