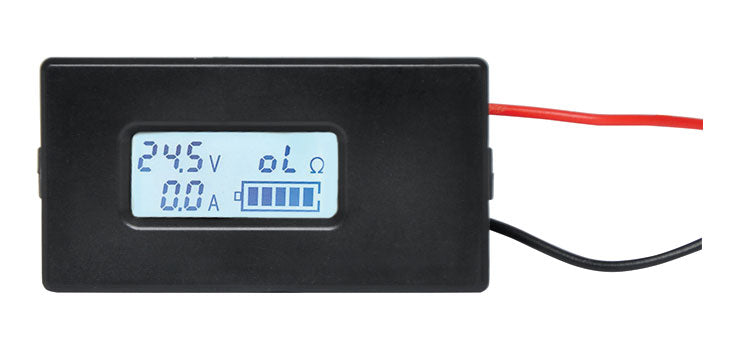

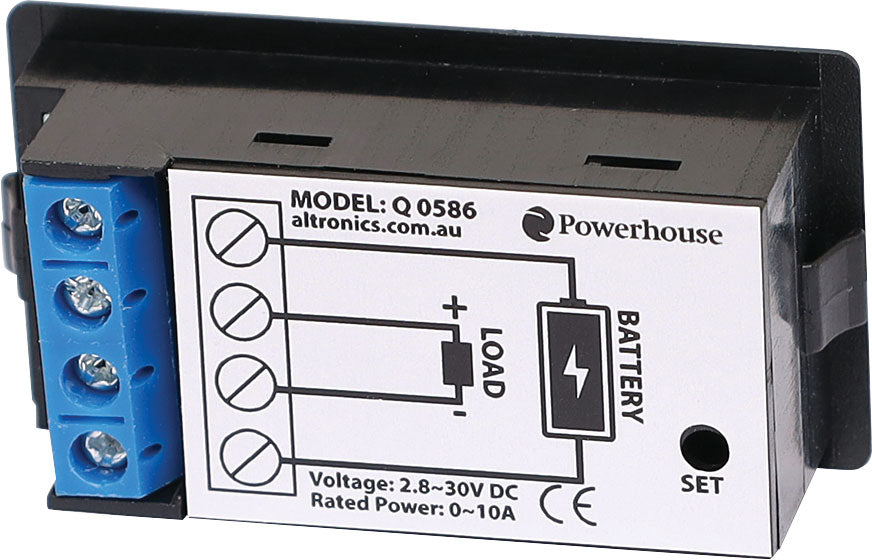

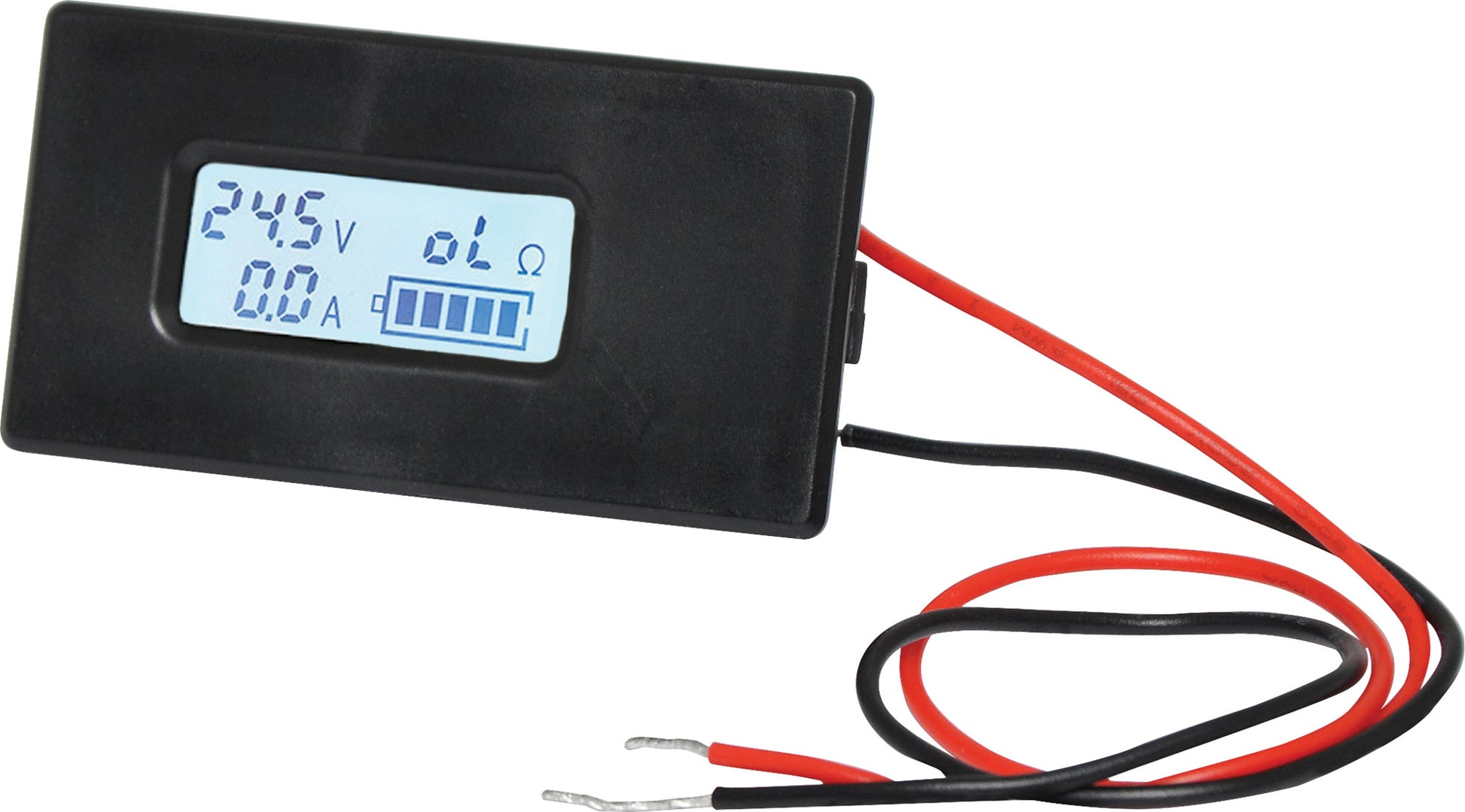

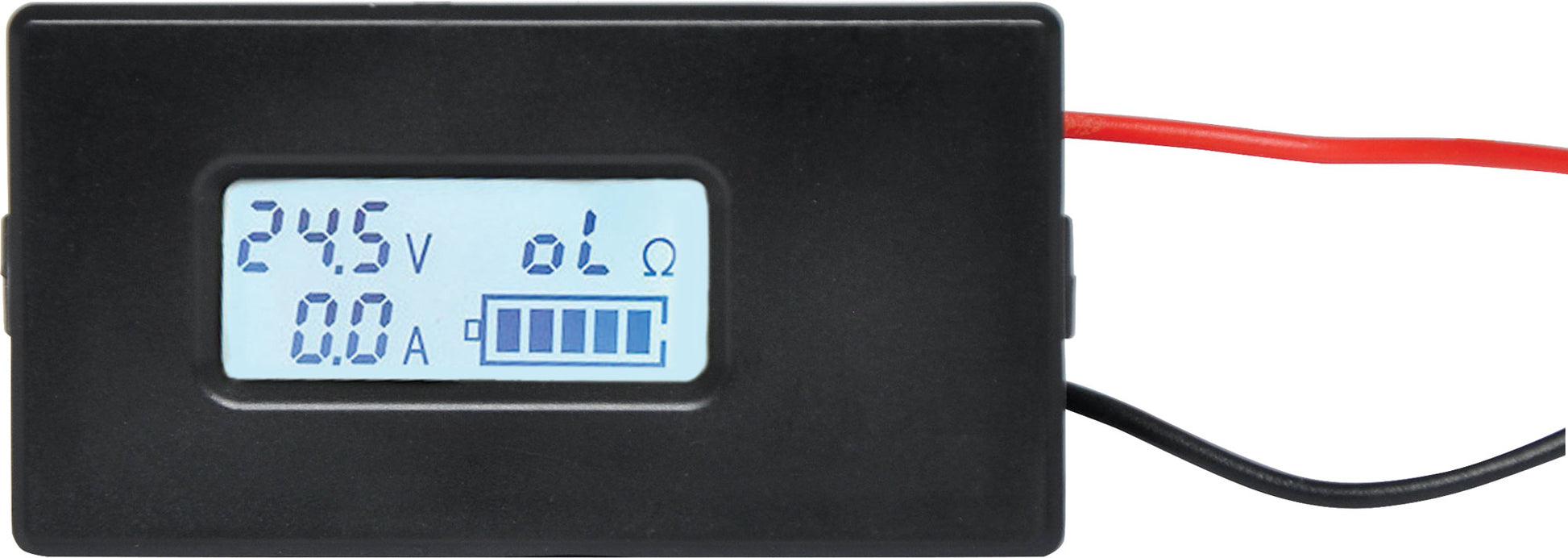

Power Monitor Panel Mini Flush Mount Q0586

This compact flush mount panel display provides an easy way to monitor battery voltage, approximate level, load current and resistance.

10A max.
Measures 2.8-30V. 0.1V resolution with 2% accuracy.
Cut out dimensions: 22.5 x 49mm.
Overall dimensions: 27 x 51 x 16.5mm.

Features

• Electrical parameter measurement (voltage, current, load resistance, dump energy (symbol display))
• Backlight (you can control the backlight on/off through the button)
• LCD display (display voltage, current, resistance, energy at the same time)
