Powercon Chassis Plug 240V 20A NAC3MPB-1 P0774
Powercon Chassis Plug 240V 20A NAC3MPB-1 P0774
Regular price
$10.50
Regular price
Sale price
$10.50
Unit price
per
Taxes included.
Couldn't load pickup availability

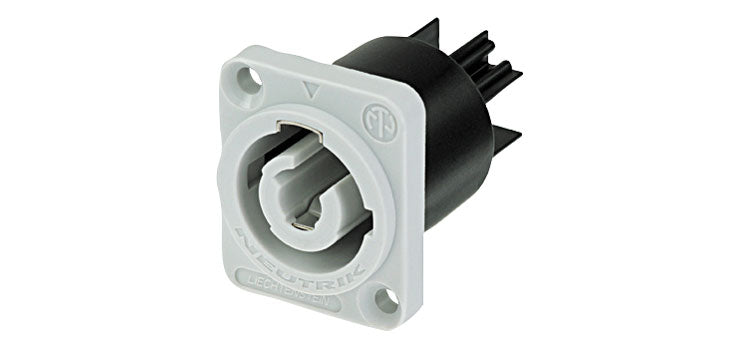

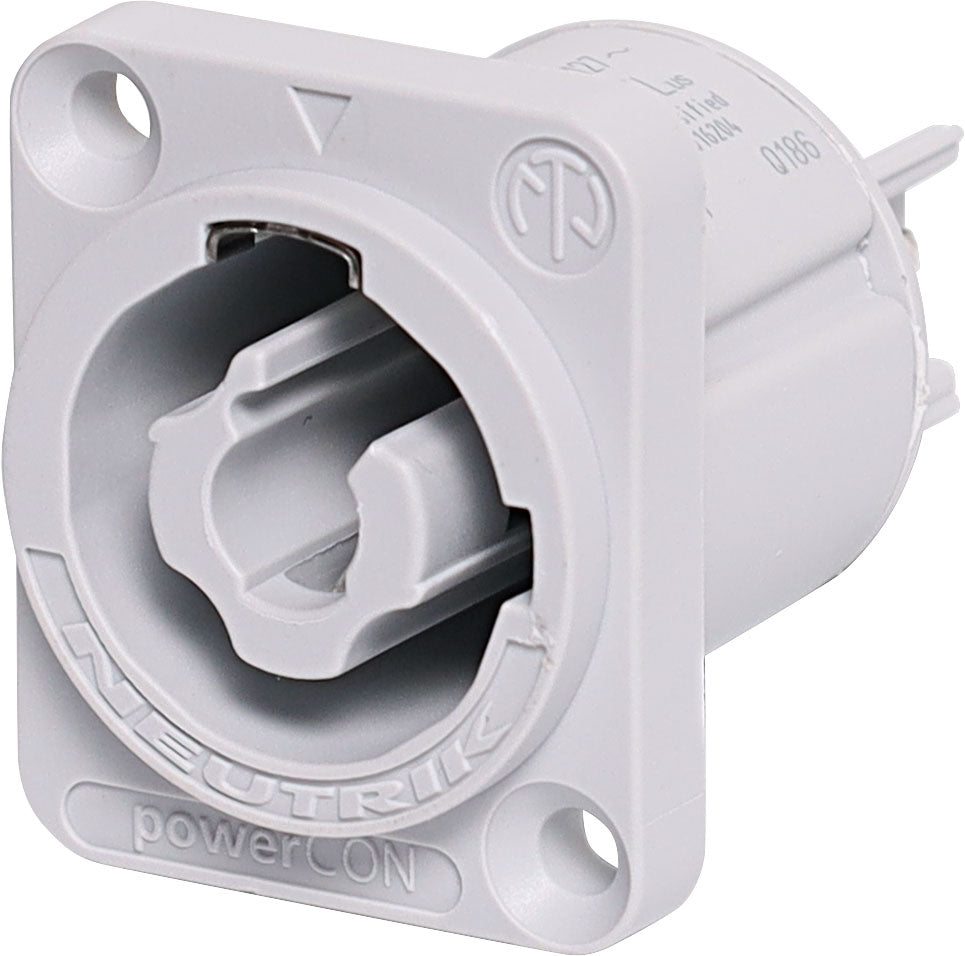

Extra heavy duty Neutrik Powercon connector as used in commercial lighting and audio applications. Power Out. NAC3MPB-1 20A 250V. SAA approved.
When connecting to mains power this must be installed by a licensed electrician. To be installed in accordance to the latest issue of AS/NZ 3000 and by a licensed electrician as ruled in the state of installation.
Features
- Lockable single phase connector
- 3 contacts for line, neutral and premating safety ground
- Fast and easy twist lock latching system
- Extremely robust and reliable
- Ergonomic design
- User friendly latch design for easy handling
Specifications
Electrical
- Contact resistance: ≤ 2mΩ
- Dielectric strength: 4 kVdc / 2.8 kVac
- Insulation resistance: > 0.1 GΩ (after damp heat test IEC 68-2-30)
- Number of electrical contacts: 2 + PE
- Rating Europe: EN 60320-1: 16 A 250 V AC
- Rating USA: UL 60320-1:20 A 127 V AC, UL 1977: 20 A 250 V AC
Mechanical
- Lifetime: > 5000 mating cycles
- Wiresize: 2.5mm²
- Wiresize: 12 AWG
Material
- Contact plating: Ag
- Locking element: Stainless steel
- Shell: Polyamide (PA 6.6)
- Contacts: Copper Alloy
Environmental
- Flammability: UL 94 V-0
- Protection class: IP 20
- Temperature range: -30 °C to +80 °C
