Today, many amplifiers do not have a specific phono cartridge input. Phono Box is an ideal phono preamplifier for these hifi system and accepts both MM and MC cartridges. The analogue output of Phono Box can easily be connected to a line-input (AUX,...) of your amplifier.

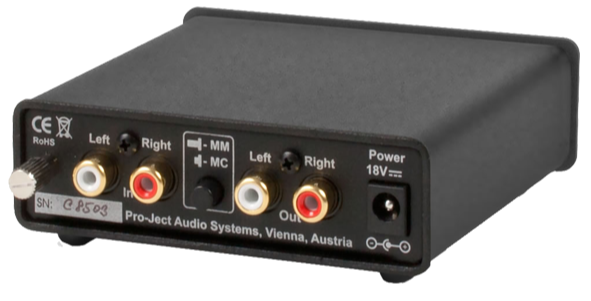

Preamplifier for MM or MC with switch on rear panel
• Precise RIAA equalisation, low noise integrated circuits
• Output stage with ultra-low impedance
Features
- Preamplifier for MM or MC with switch on rear panel
- Best buy classic
- DC power supply (< 1 watt standby power)
- Precise RIAA equalisation
- Low noise ICs
- Output stage with ultra-low impedance
- Gold-plated RCA sockets
- Small size for installation near record player
-
Available in black and silver
Specifications
|
Input impedance, MM: |
47kohms/120pF |
|
Input impedance, MC: |
100ohms/120pF |
|
Gain, MM: |
40dB |
|
Output voltage typically: |
300mV/1kHz at 3mV/1kHz (MM input) |
|
Gain, MC: |
60dB |
|
Output voltage typically: |
300mV/1kHz at 0.3mV/1kHz (MC input) |
|
Max. output: |
9.5V (1kHz) |
|
Noise floor, MM: |
86dB (94dB - A weighted) |
|
Noise floor, MC: |
68dB (75dB - A weighted) |
|
THD, MM: |
0.01% |
|
THD, MC: |
0.05% |
|
RIAA-equalisation curve accuracy: |
20Hz - 20kHz / max. 0.5dB |
|
Outboard power supply: |
18V/200mA DC |
|
Standby power consumption: |
< 1 watt |
Dimensions
|
W x H x D: |
|
103 x 36 x 103 mm (109 mm with sockets) |
|
Weight: |
|
540 g |
