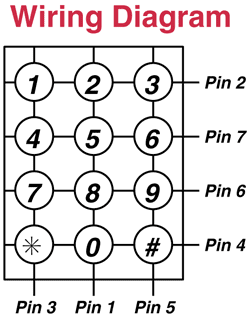

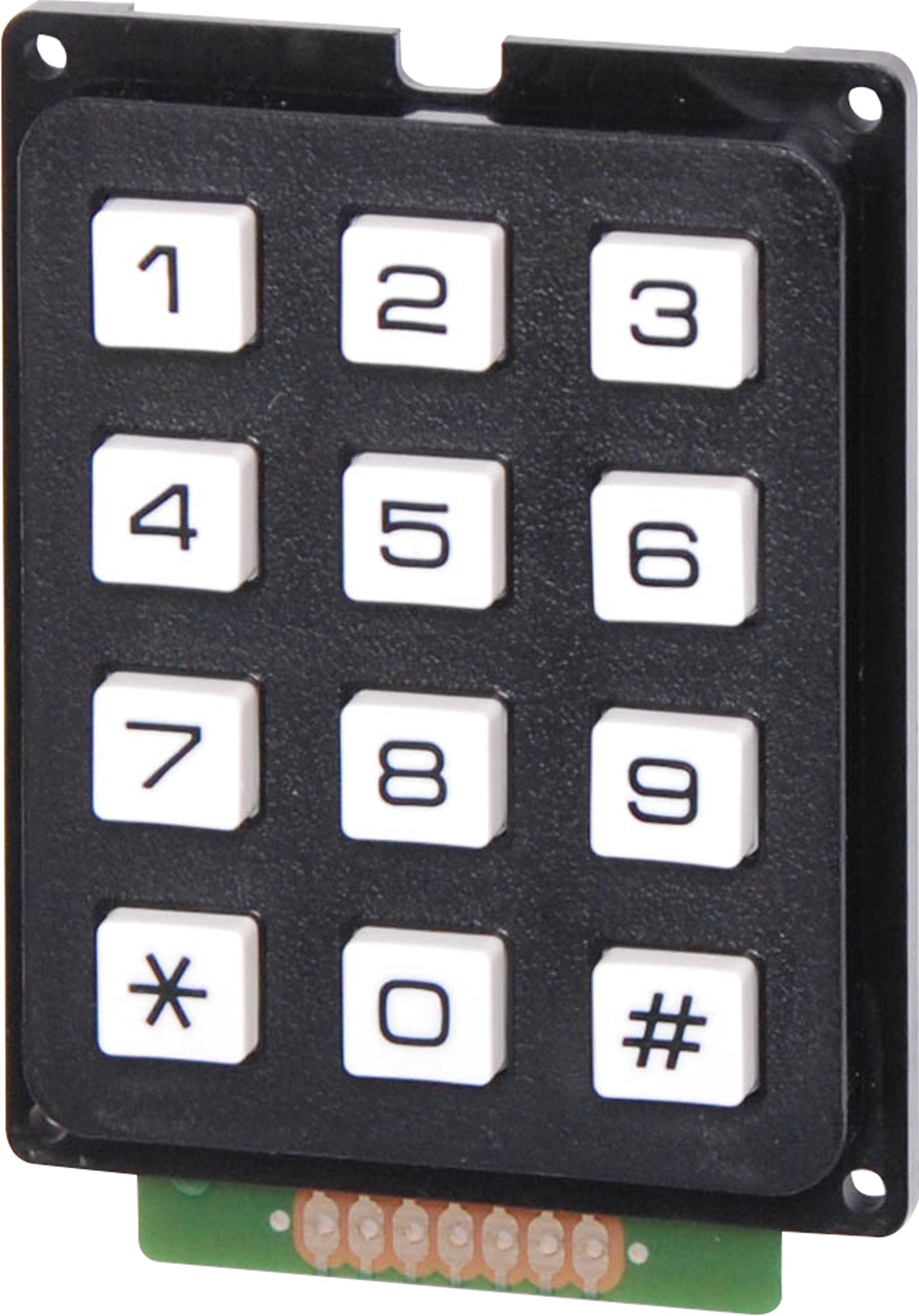

3 x 4 way matrix. As used with DTMF telephones and security applications.
Specifications
- Contacts: Conductive rubber
- Rating: 20mA @ 24V DC
- Contact Resistance: 200 Ohms Max

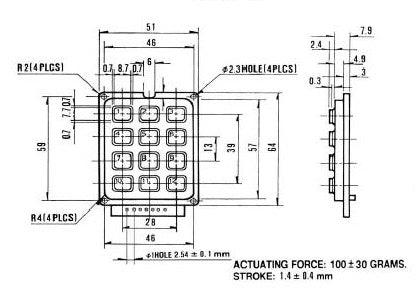

- Key Face Dimensions: 46 x 57mm
- Life Expectancy: 10 million operations per key




3 x 4 way matrix. As used with DTMF telephones and security applications.
