Push Button Switch 51mm Lever SPDT Momentary Microswitch S3262

Name: Push Button Switch 51mm Lever SPDT Momentary Microswitch S3262
Brand: Altronics
SKU: 9321758120316
Price: 5.95 AUD
Availability: InStock

$5.95

Sale Sold out

Taxes included.

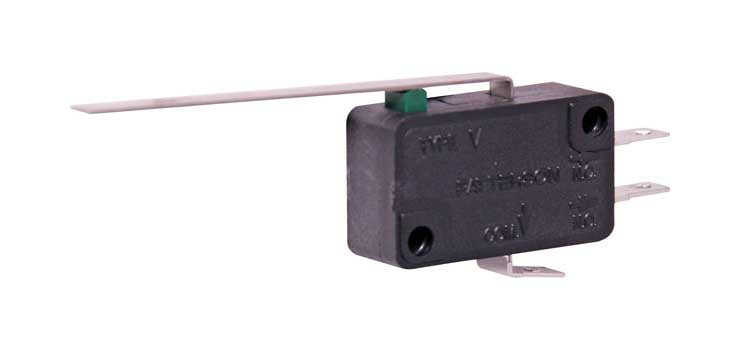

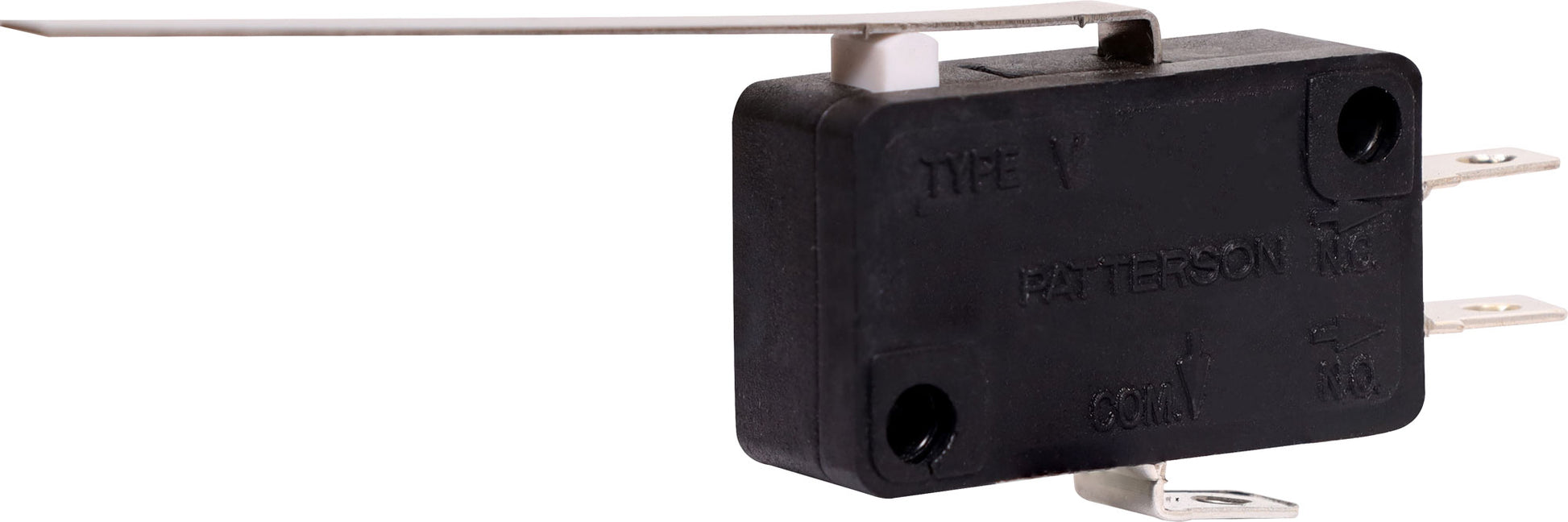

A momentary action microswitch with 51mm lever. Suitable for limit switching in a variety of industrial and hobbyist applications. 4.8mm spade connection is suitable for soldering or use with spade lugs.

Specifications

Switch Type: SPDT Momentary
Contact Rating: 250VAC 5A for Resistive load, 250VAC 4A for Inductive load
Contact Resistance: <15mR

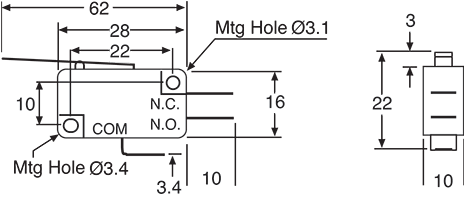

Actuator Length: 51mm
Connection: 4.8mm spade
