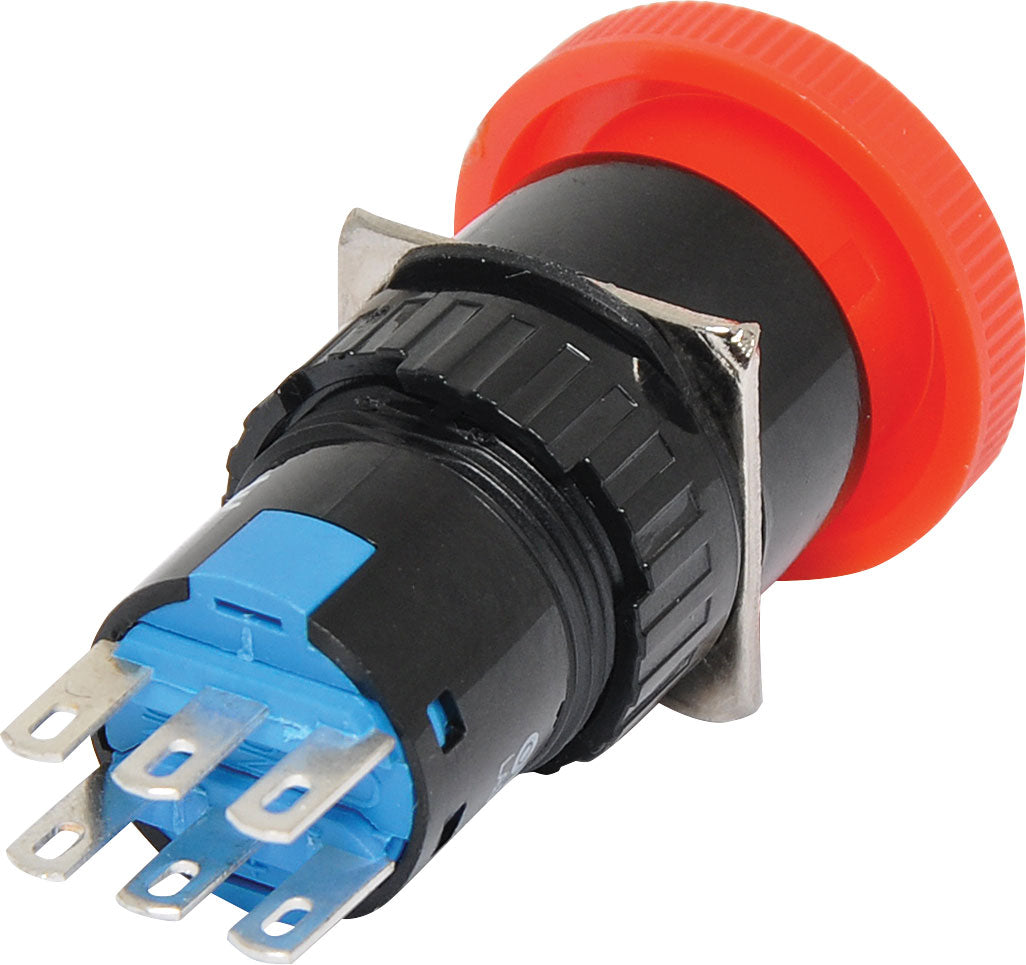

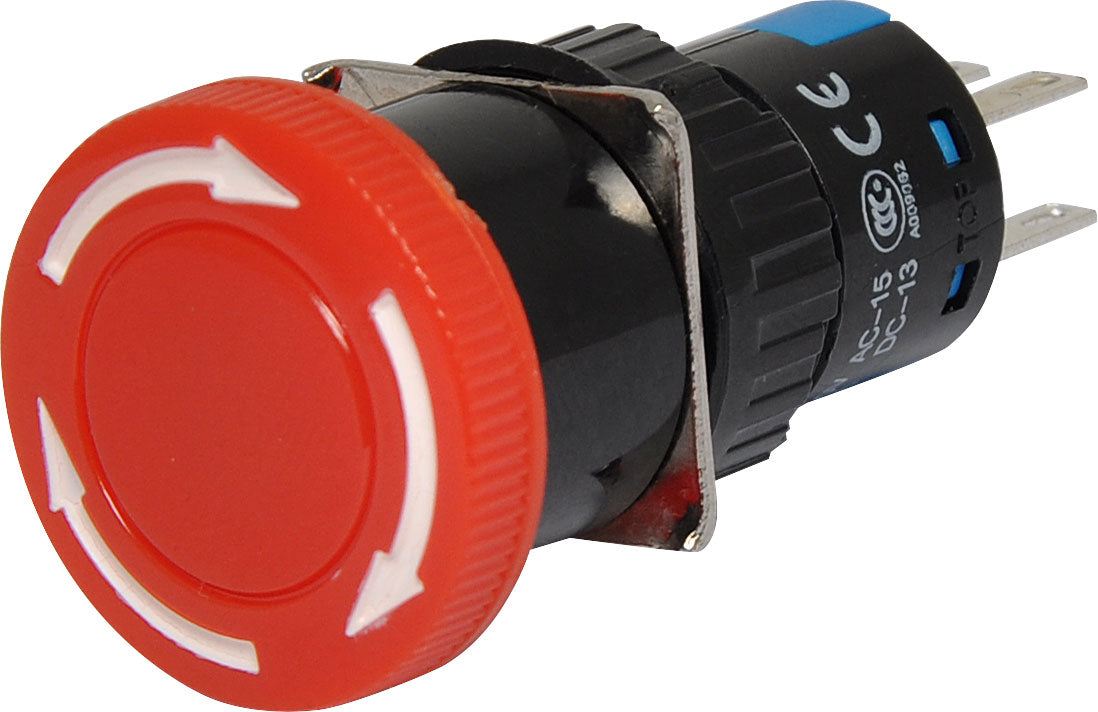

Push Button Switch DPDT Emergency Stop Solder Tail S0820
Push Button Switch DPDT Emergency Stop Solder Tail S0820
Regular price
$17.70
Regular price
Sale price
$17.70
Unit price
per
Taxes included.
Couldn't load pickup availability
Alternate action latches in off position. Rotating the spring loaded actuator clockwise allows circuit to reconnect. IP65 Rated
Specifications
- Switch type: DPDT
- Contact rating: 500mA @ 250V AC 1A @ 24V DC
- Thermal Current: 5A
- Contact resistance: <50mΩ
- Insulation resistance: >100MΩ
- Dialectric strength: 1000V between poles
- Electrical life: >50,000 cycles
- Ingress protection rating: IP65
