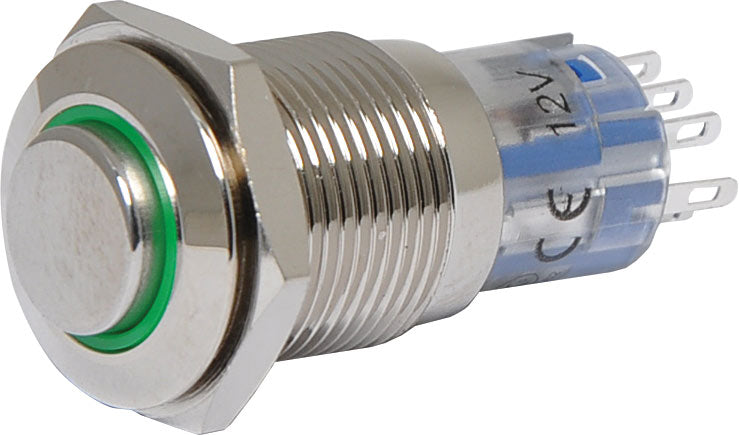

Push Button Switch DPDT Momentary LED Green Solder Tail S0931

Push Button Switch DPDT Momentary LED Green Solder Tail S0931

$10.95
$10.95
Sale Sold out
Taxes included.

DPDT momentary LED green solder tail push button switch.

Specifications

  • Colour: Green
  • Action: Momentary
  • Switch type: DPDT
  • Contact rating: 3A @ 250V AC
  • Contact resistance: <50mΩ
  • Insulation resistance: >100MΩ
  • LED: 12V AC/DC
  • Dielectric strength: 1000V between poles
  • Electrical life: >30,000 cycles
