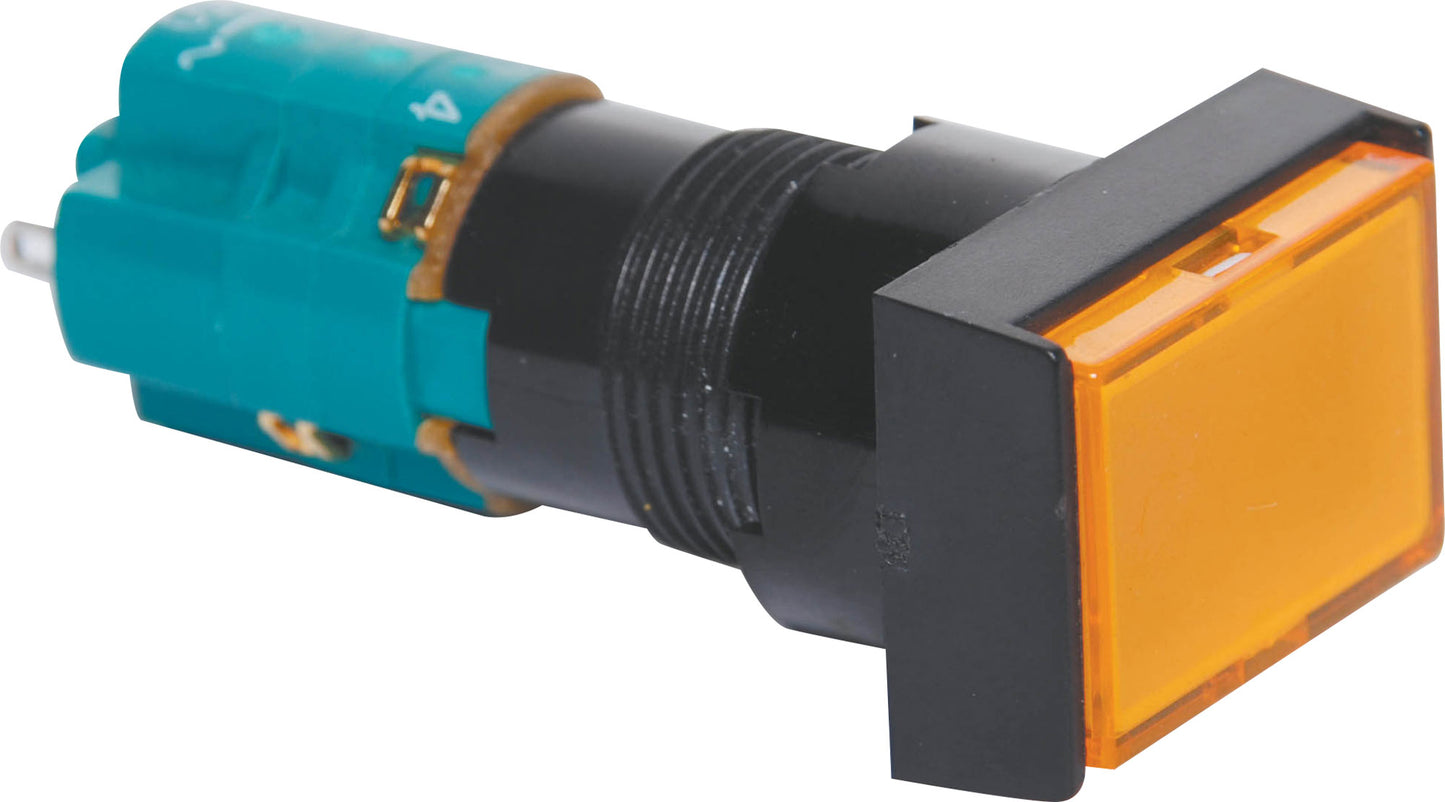

Push Button Switch DPST Alt. Orange Illuminated Solder Tail S1724
Push Button Switch DPST Alt. Orange Illuminated Solder Tail S1724
Regular price
$16.50
Regular price
Sale price
$16.50
Unit price
per
Taxes included.
Couldn't load pickup availability
Alternate action type illuminated switch incorporating a very positive, audible and tactile feel when operated. Includes provision for a globe. In-built diffuser can be directly engraved. Alternatively a clear printed label can be placed behind the coloured cover. Single hole mounting.
Specifications
- Colour: Orange
- Type: DPST
- Action: Alternate
- Switch System: 1 NO & 1 NC contact blocks
- Body Material: High grade thermoplastic
- Operating Travel: 3.0mm
- Actuating Force: 150gm
- Mech. Lifetime: 1 Million operations min
- Electrical Lifetime: 100,000 operations min.
- Electrical Rating: 250V AC 4A
- Dielectric Strength: 1500V AC, 50Hz, 1 minute
- Insulation Resistance: 1000MΩ min @ 500V DC
- Panel Thickness: 8mm maximum
- Mounting Hole Diameter: 16mm
