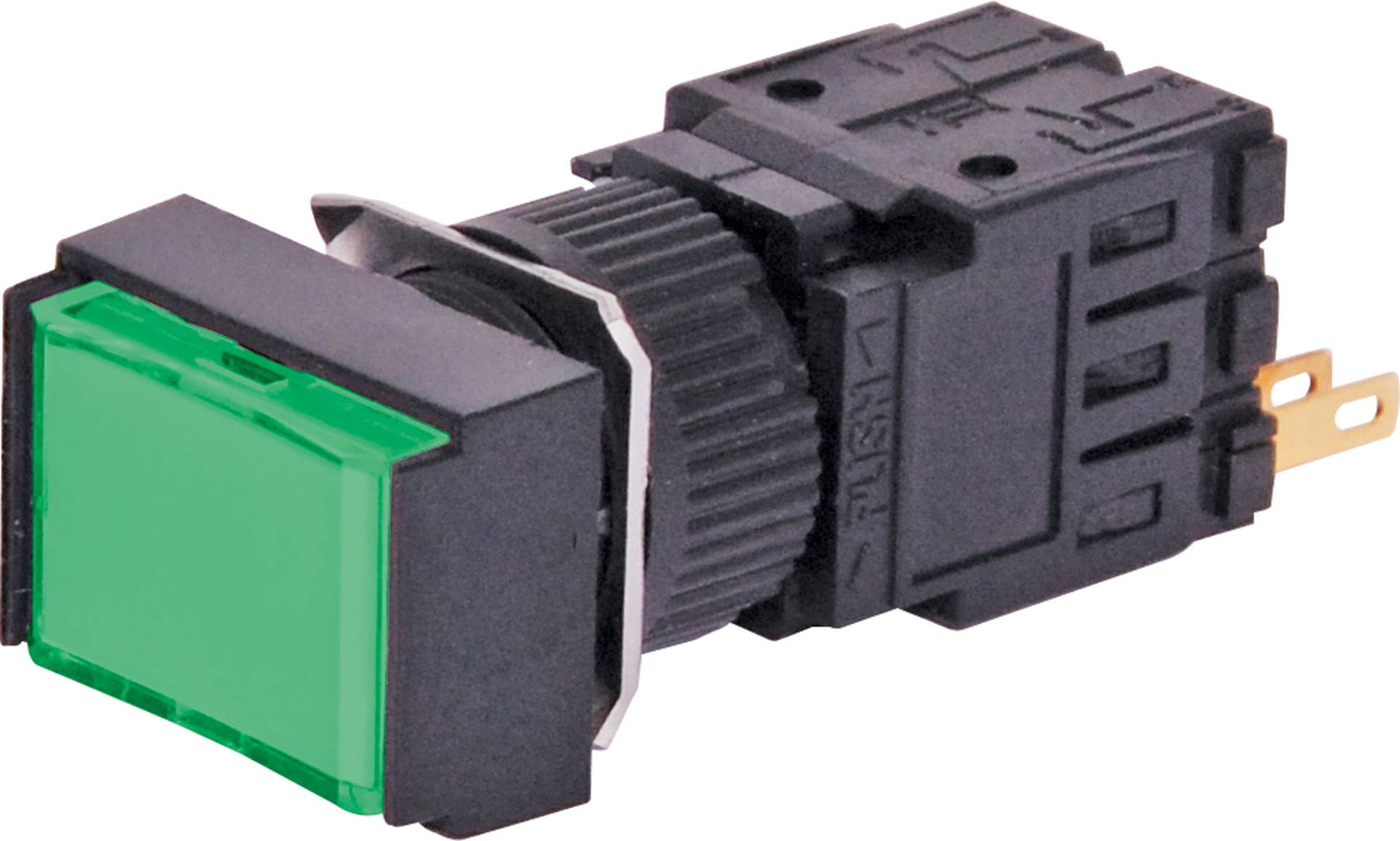

Push Button Switch DPST Alternate Green Illuminated Solder Tail S1722A

Alternate type illuminated push-button switch incorporating a very positive, audible and tactile feel when operated. Includes provision for a globe. In-built diffuser can be directly engraved. Alternatively a clear printed label can be placed behind the coloured cover. Globe not included.

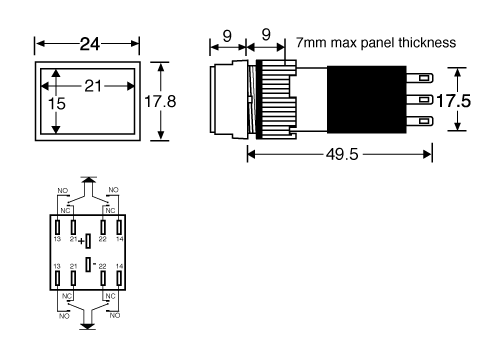

Terminal connections disconnect from the panel switch to allow switch to be mounted in a single 16mm round hole (15.8mm flat sides).

Accessories
S1795: Protective flip up switch cover
S1797: Globe removal & nut spanner
S1798: Slide on terminal insulation cover

Globes to Suit
S1780A: 12V Globe
S1785A: 24V Globe
