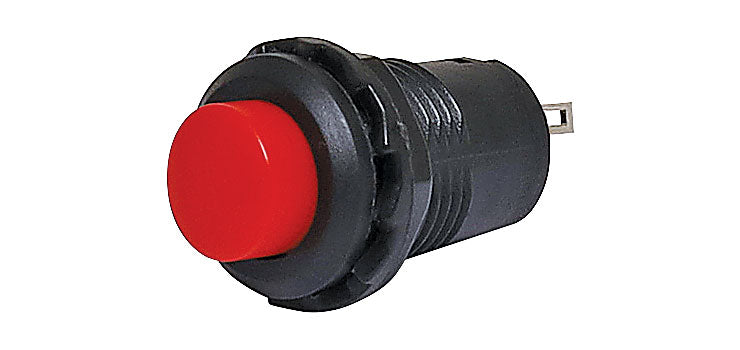

Push Button Switch SPST Alternate Red Solder Tail SR1082A

Low profile red push button switch with solder tail connection. Ideal for panel mounting into projects or rack equipment etc. Alternate action, single pole type.

Rated Voltage: 125V AC @ 3A
Rated Current: 250V AC @ 1.5A
Insulation Resistance: 500V DC 100MΩ (min)
Contact Resistance: 50MΩ max
Dielectric Strength: 1000V DC, 1 minute
Operating Temperature: -20°C to +85°C
Electrical Life: 10,000 cycles (min)
Mechanical Life: 50,000 cycles (min)
Function: Alternate action
Button Colour: Red
