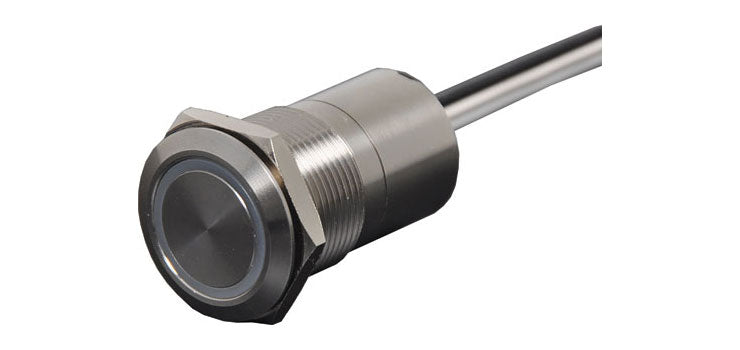

Push Button Switch SPST LED Vandal Resistant IP67 Momentary Touch Switch S0940

Touch activated dual colour (red, green) LED switch for ticket machines, kiosks, access control etc. IP67 rated. 30cm fly lead connection. Momentary touch action.

Please Note: This product needs 12V DC to work and if touched, LED lights change and it puts out 12V DC on the third wire which is the switching action.

Panel Thickness: 10mm
LED Colours: Red/Green
LED Operating Voltage: 12VDC
Max Switch Rating: 500mA/24VDC
Electrical Life: 50 million cycles at full load
Contact Resistance: ≤20MΩ
Insulation Resistance: ≥10MΩ 600VDC
Operating Temperature: -25°C to +55°C
IK Class: IK10
IP Class: IP67
Body Material: Stainless steel
Cable Materials: UL1430 22AWG
