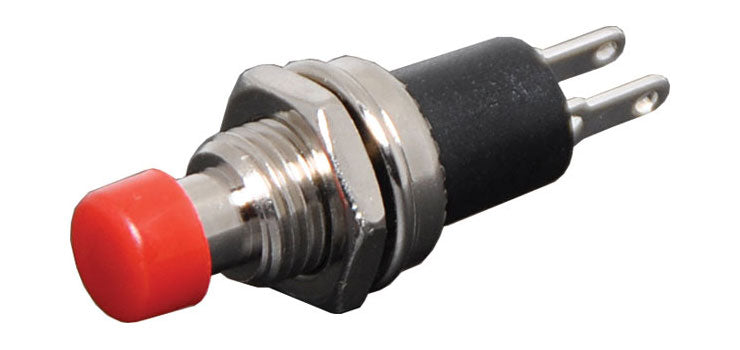

Push Button Switch SPST Red Push On Mini S1060C

Push Button Switch SPST Red Push On Mini S1060C

Regular price $2.30
Regular price Sale price $2.30
Sale Sold out
Taxes included.
Quantity
View full details
These handy miniature push buttons are ideal for any simple low current circuit switching. Red actuator with normally open push button action.

Circuit: A: (ON)-OFF Rating: 1A 125V ac / 0.5A 250V ac Contact resistance: 30mΩ Max Insulation resistance: 500V DC 100mΩ Min Dielectric Strength: 1000V AC 1 Minute Electrical Life: 5000 cycle Mechanical Life: 10,000 cycle Terminal Material: Copper, Alloy, (Silver or Gold Plated) Push Force: >0.3kg Soldering: 240° for 3 seconds Mounting hole diameter: 7.3mm
