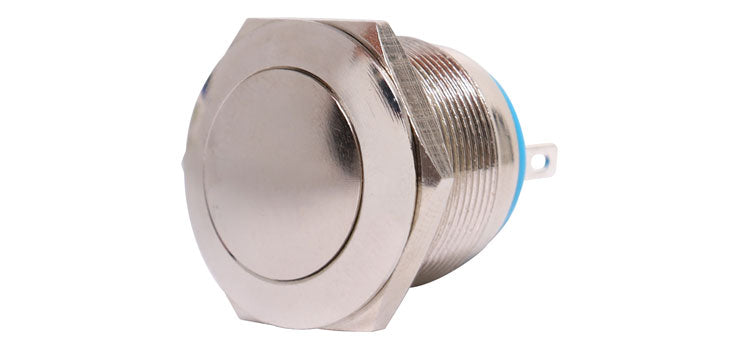

Push Button Switch SPST Vandal Resistant Mom. (Solder Tail) S0949A

Heavy duty vandal resistant switch with solder terminal tags on rear for indoor/ sheltered outdoor use eg carparks, building entrances. Momentary. Rating: 4A 125V AC, 2A 250V AC
Contact: 20Ωm max
Insulation: 500V DC 100Ωm min
Dielectric Strength: 1min 1000V AC
Operating Temperature: -25°C ~ +85°C
Electrical Life: 50,000 cycles
Rating: 4A 125V AC, 2A 250V AC
Contact: 20M Ohm max
Insulation: 500V DC 100M Ohm min
Dielectric Strength: 1min 1000V AC
Operating Temperature: -25°C ~ +85°C
Electrical Life: 50,000 cycles
Switch Type: NO contacts, Screw terminal SPST
Contact Rating: 2A @ 250V AC, 4A 12V DC
Panel Thickness: 1-10mm
