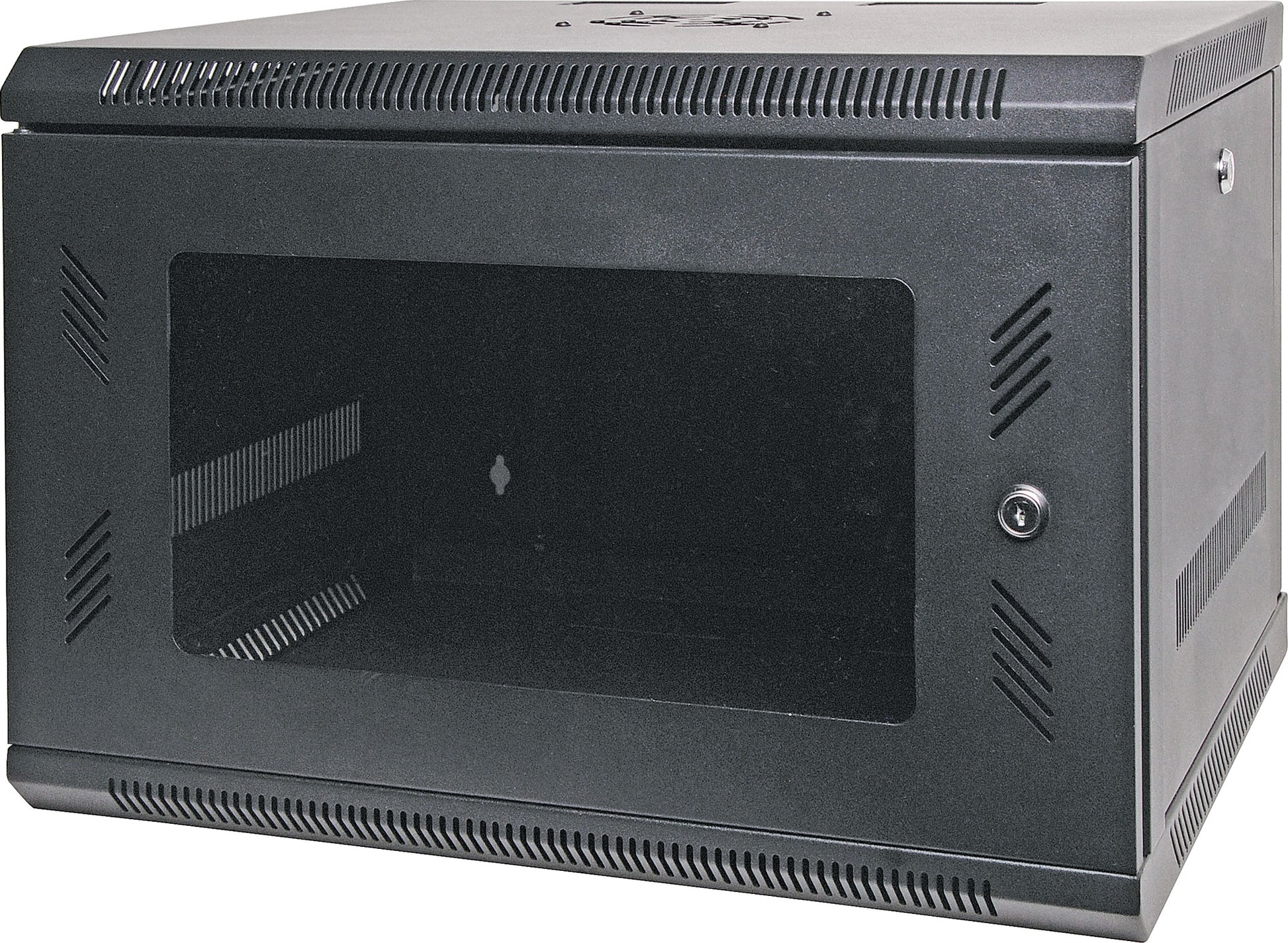

Rack System 6U 450mm Deep 19" HD5506

Rack System 6U 450mm Deep 19" HD5506

Regular price $295.00
Regular price Sale price $295.00
Sale Sold out
Taxes included.

Constructed from 1.5mm black powder coated steel, these 19” racks are ideal for communications, public address and IT server rooms. The design offers both the option of wall mounting or floor standing as desired. Each package includes a rack frame, tempered glass front door, removable rear and side panels, top and bottom panels.

The front door and side panels are lockable. Front door can be rotated to open from left to right, or right to left. Provision for cooling fans in top. Design includes plenty of ventilation to keep equipment cool. For floor standing installations H 5296 optional caster set may be fitted for added mobility. Supplied flatpack and assembles quickly.

Dimensions: 530W x 450D x 373H mm (Maximum equipment depth 360mm)

Features

  • IP20 rated protection.
  • RAL9004/5 black colour.
  • SPCC cold rolled steel construction with 1.5mm steel mounting posts and back panel, 1.2mm frame.
  • Designed to comply with 19" international standard.
  • Complies with ANSI/EIA RS-310-D, IEC297- 2,DIN41491 - PART1, DIN41494 - PART7, GB/3047.2-92 standard.
  • Adjustable mounting post to suit different depth equipment.
  • Tempered glass front door with 180 deg. rotatable lock.

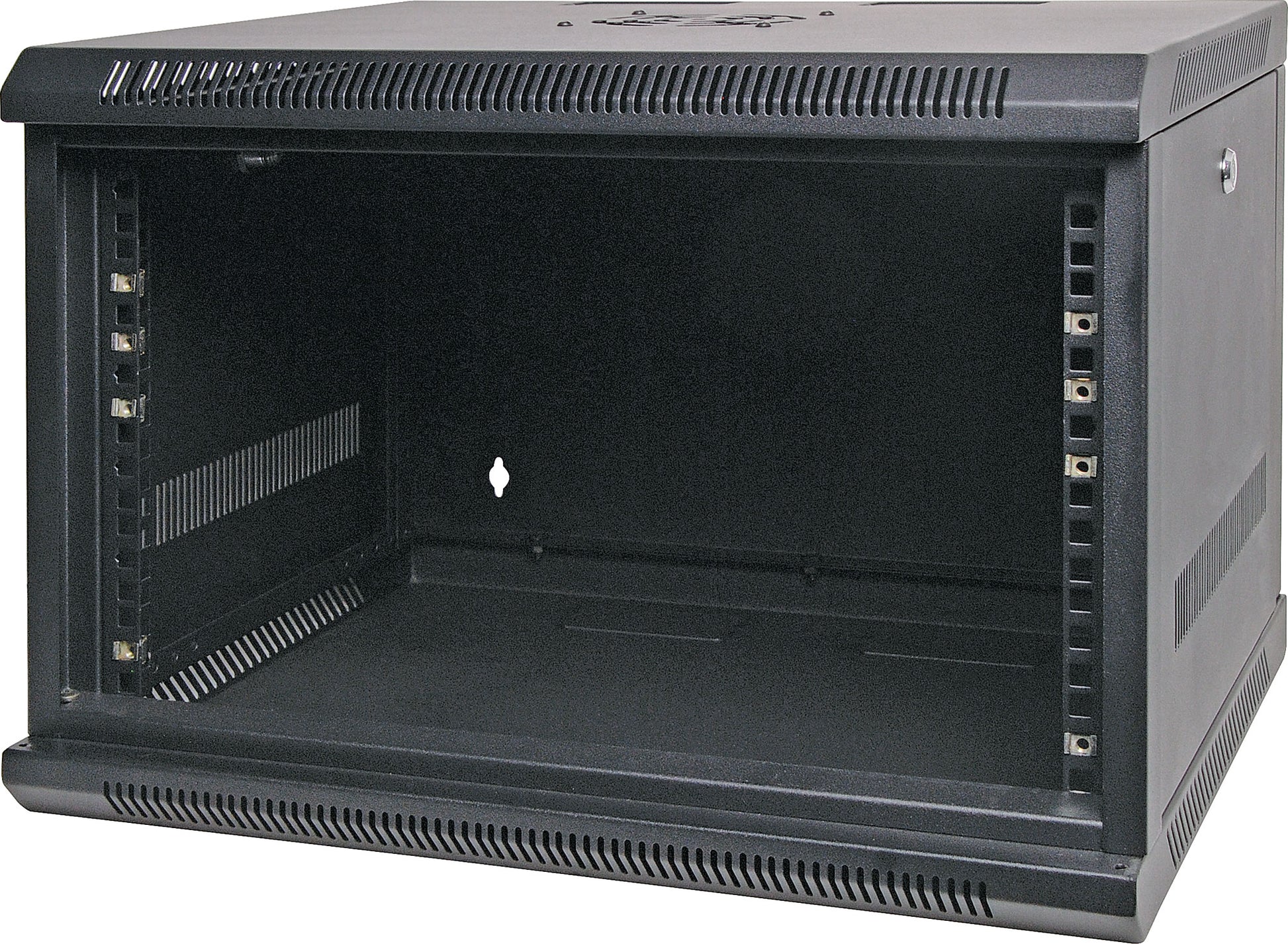

  • Removable side and rear panels for easy installation and adjustment of equipment.
  • Ventilation in all doors.
  • Cable entry on the top cover.
  • Adjustable cable entries in the bottom with panels.
  • Adjustable feet included.
  • Includes screws and cage nuts.
  • Cooling fan holes in top cover.
  • Supplied flat pack - assembles quickly.
