Raspberry Pi Pi Cap Module to suit Raspberry Pi Z6430
Raspberry Pi Pi Cap Module to suit Raspberry Pi Z6430
Regular price
$39.00
Regular price
Sale price
$39.00
Unit price
per
Taxes included.
Couldn't load pickup availability

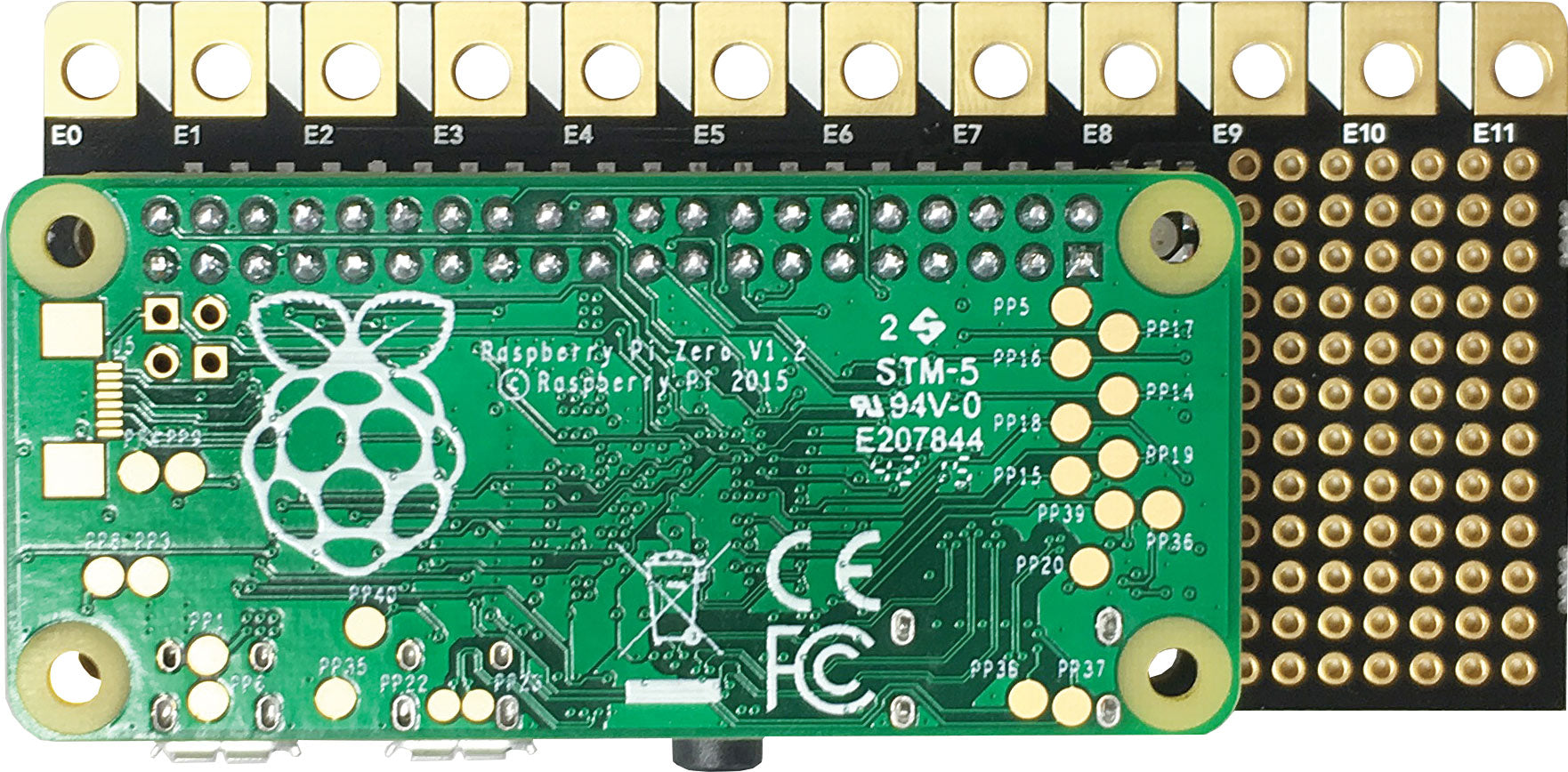

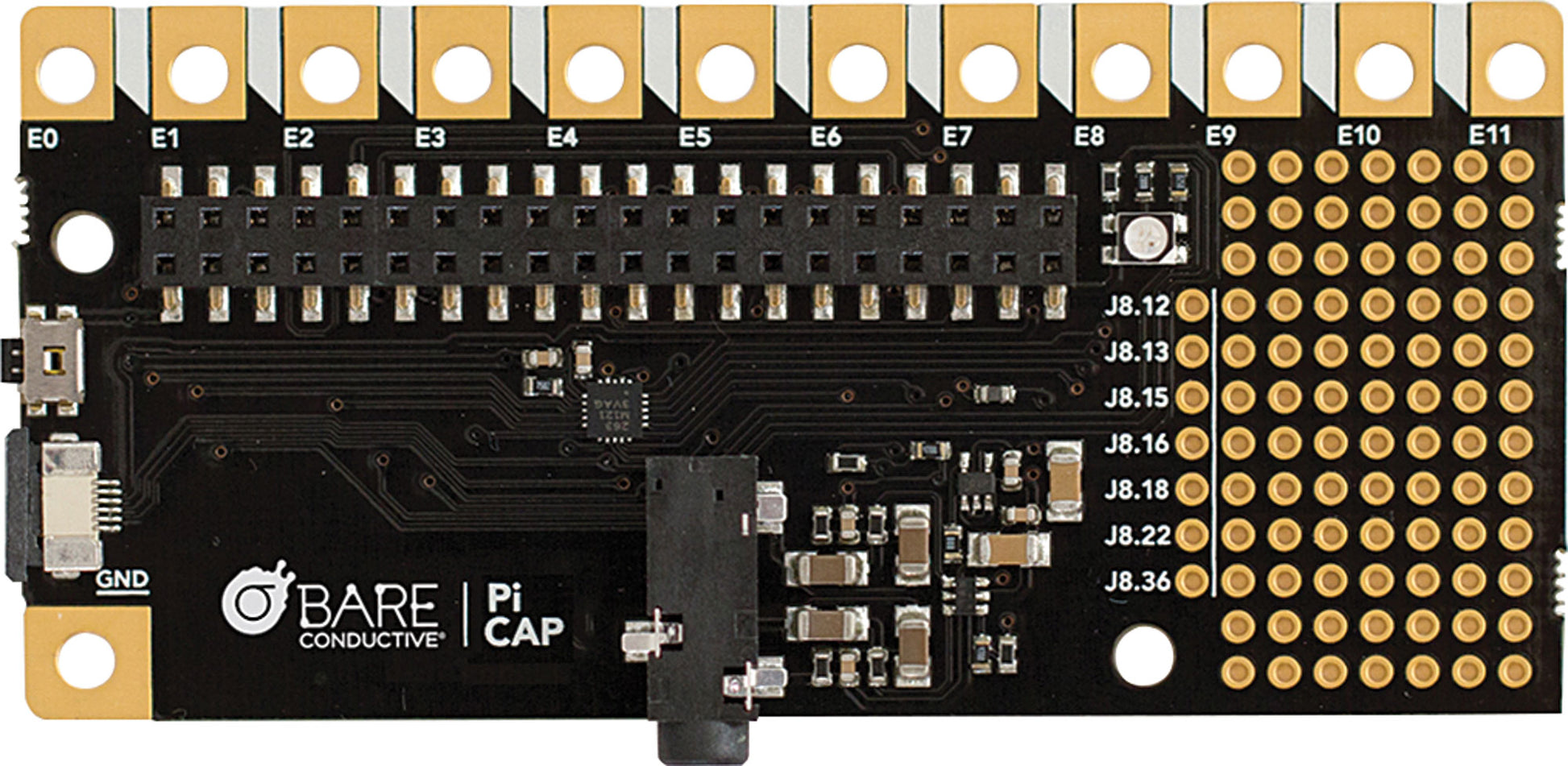

The Pi Cap is an add-on board for the Raspberry Pi A+, B+, 2 B, 3 B and Zero. It features a dedicated capacitive sensing IC, 3.5mm stereo audio output, push switch, RGB LED and prototyping area.

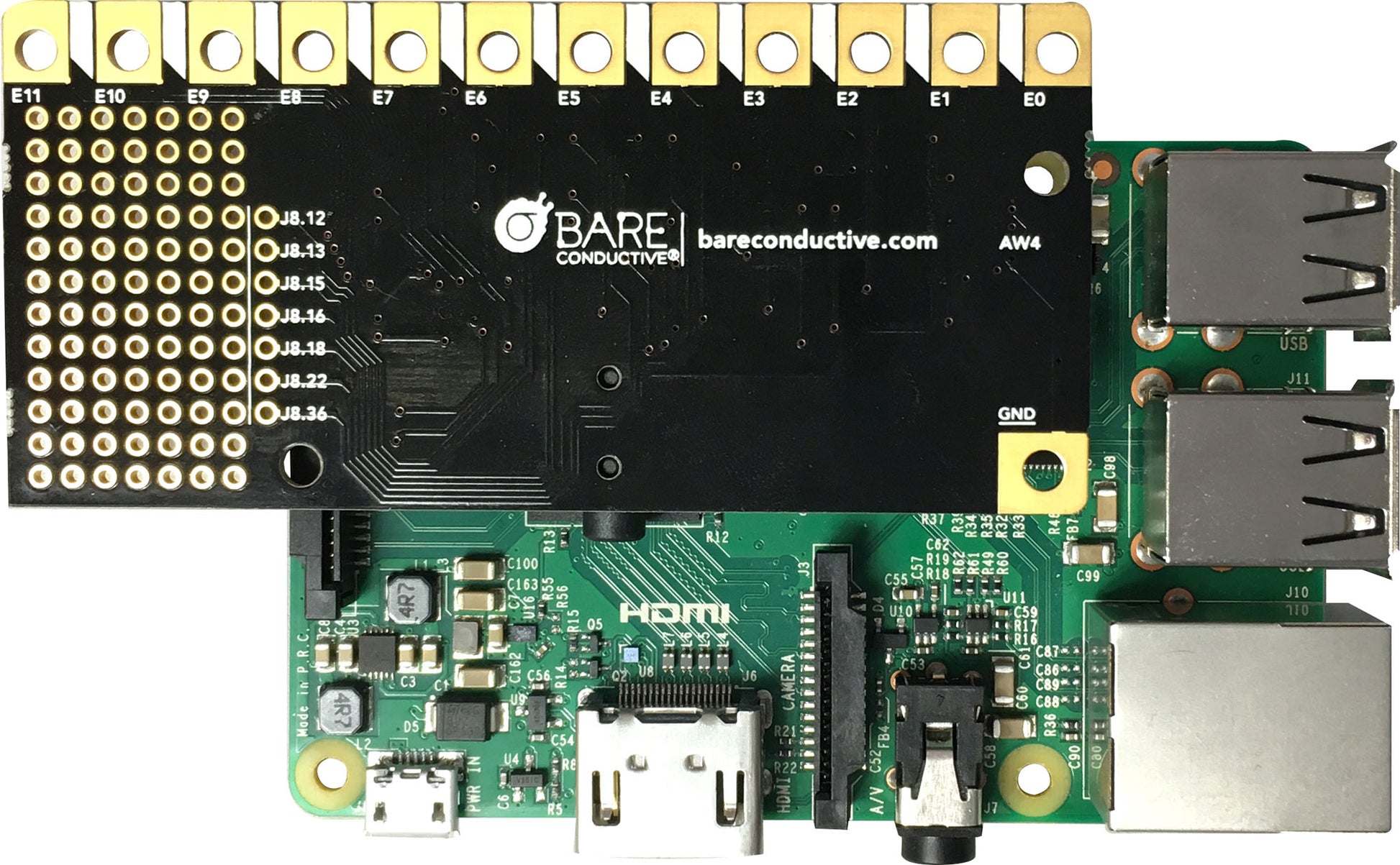

Please Note: The Raspberry Pi has been used for illustration purposes and is not included.
Data Sheet -Touch Board vs Pi Cap
Data Sheet - Pi Cap + Raspberry Pi
Instructions - How to make tutorials
Specifications
- Touch IC: Resurgent Semiconductor MPR121
- Audio Output: 15mW into 32Ω via 3.5mm stereo socket
- Input Voltage: 3.3V (via 40-way Raspberry Pi GPIO connector)
- Input Current: 17mA idle, 36mA with all features in concurrent use.
- Capacitive Touch Electrodes: 12 (of which 8 can be configured as 3.3V digital I/O)
- Digital I/O Pins: 7, brought out from 40-way Raspberry Pi GPIO connector – pins 12, 13, 15, 16, 18, 22, 36
- Push Switch: Active low momentary push switch connected to pin 7 on the 40-way Raspberry Pi GPIO connector (requires the Pi's onboard pull up resistor to be enabled in software)
- Active low, red connected to J8.31 (5mA when on), green to J8.29 (1mA when on), blue to J8.37 (4mA when on)
- Prototyping Area: 84 pads (7 x 12) with 1mm diameter drills spaced 2.54mm apart.
- Dimensions: 85 x 40 x 7mm
