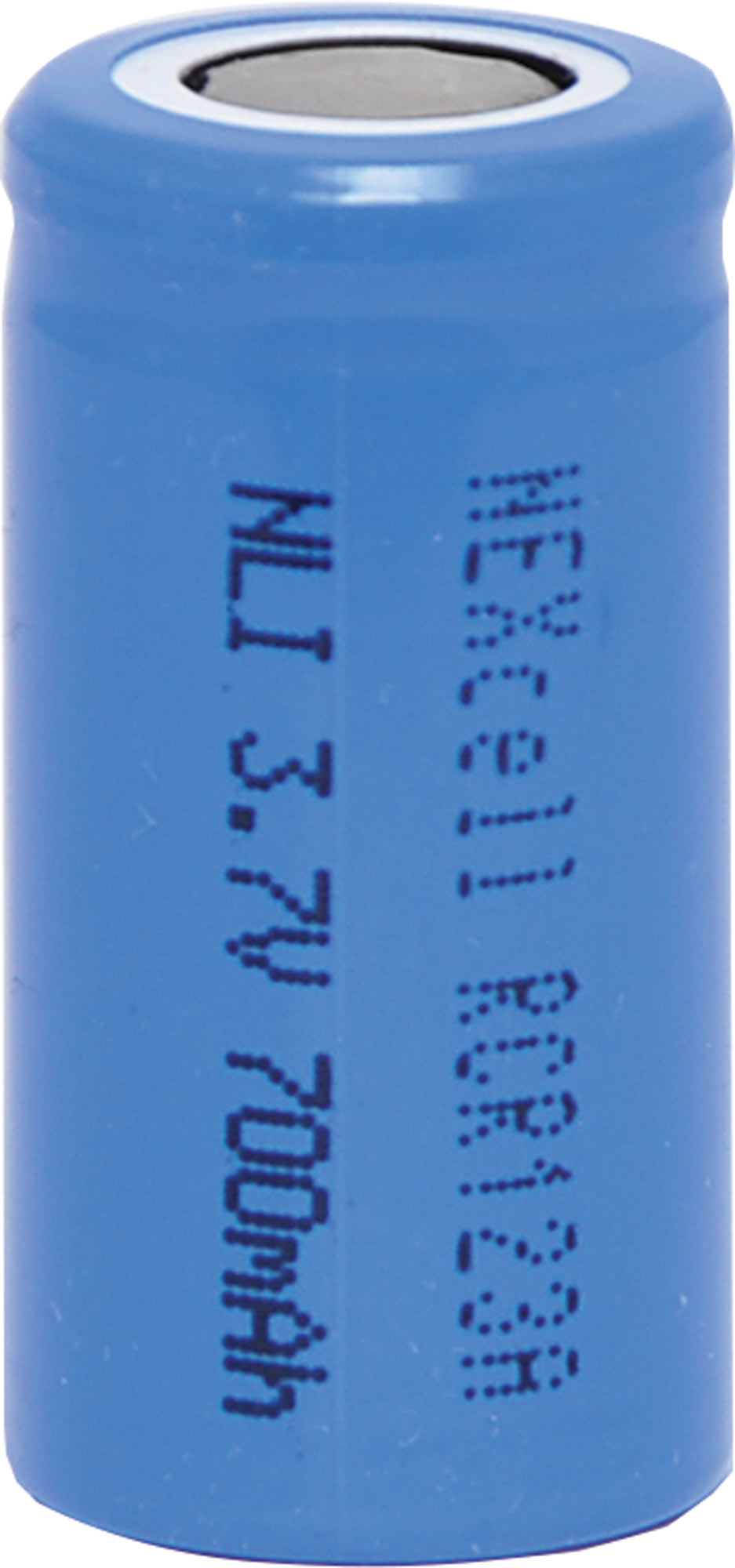

Battery Rechargeable RCR123A 700mAh Li-Ion S4984

Battery Rechargeable RCR123A 700mAh Li-Ion S4984

$11.50
$11.50
Sale Sold out
Taxes included.

These high performance RCR123A (16340) lithium ion 3.7V batteries offer high performance and long life from a compact package.

Lithium-ion batteries offer excellent properties for use in consumer devices, including excellent energy density and low maintenance. Lithium-ion do not suffer from memory effect and possess no regular cycling that batteries often require to extend their service life.

Common Applications Include:
Laptop computers
LED flash lights
Electric vehicles
Power tools
Converting AA or AAA powered products over to higher performance (providing voltage matches).

Specifications

  • Typical Capacity: 720mAh @ 0.2C discharge
  • Minimum Capacity: 700mAh @ 0.2C discharge
  • Nominal voltage: 3.7V
  • Standard Charge: CC/CV, 0.2C5A, 4.20V
  • Standard Discharge: CC, 0.2C5A, 3.00V
  • End-of-Charge Voltage: 4.20V
  • End-of-Charge Current: 0.02C5A (At CV Mode)
  • Charging Time: 8 hours (standard charging)
  • Quick Charge Current: 700mA (1.0C5 rate) 1C
  • Quick Discharge Current: 1400mA (2.0C5 rate) 2C
  • Max Discharge Current: 2100mA (3.0C5 rate) 3C
  • Initial Impedance: 75mΩ max.
  • Weight: 17g
  • Charging Operating Temperature: 0°C to 45°C
  • Discharging Operating Temperature: -20°C to 60°C
  • Storage Temperature: -5°C to 35°C
  • Storage Humidity: Less than 75% RH
  • Standard Environmental Conditions: 25°C @ 45-75% RH, 86-106KPA.
