Relay 10A 24VDC DPDT Cradle S4312

Relay 10A 24VDC DPDT Cradle S4312

$7.95
$7.95
Sale Sold out
Taxes included.

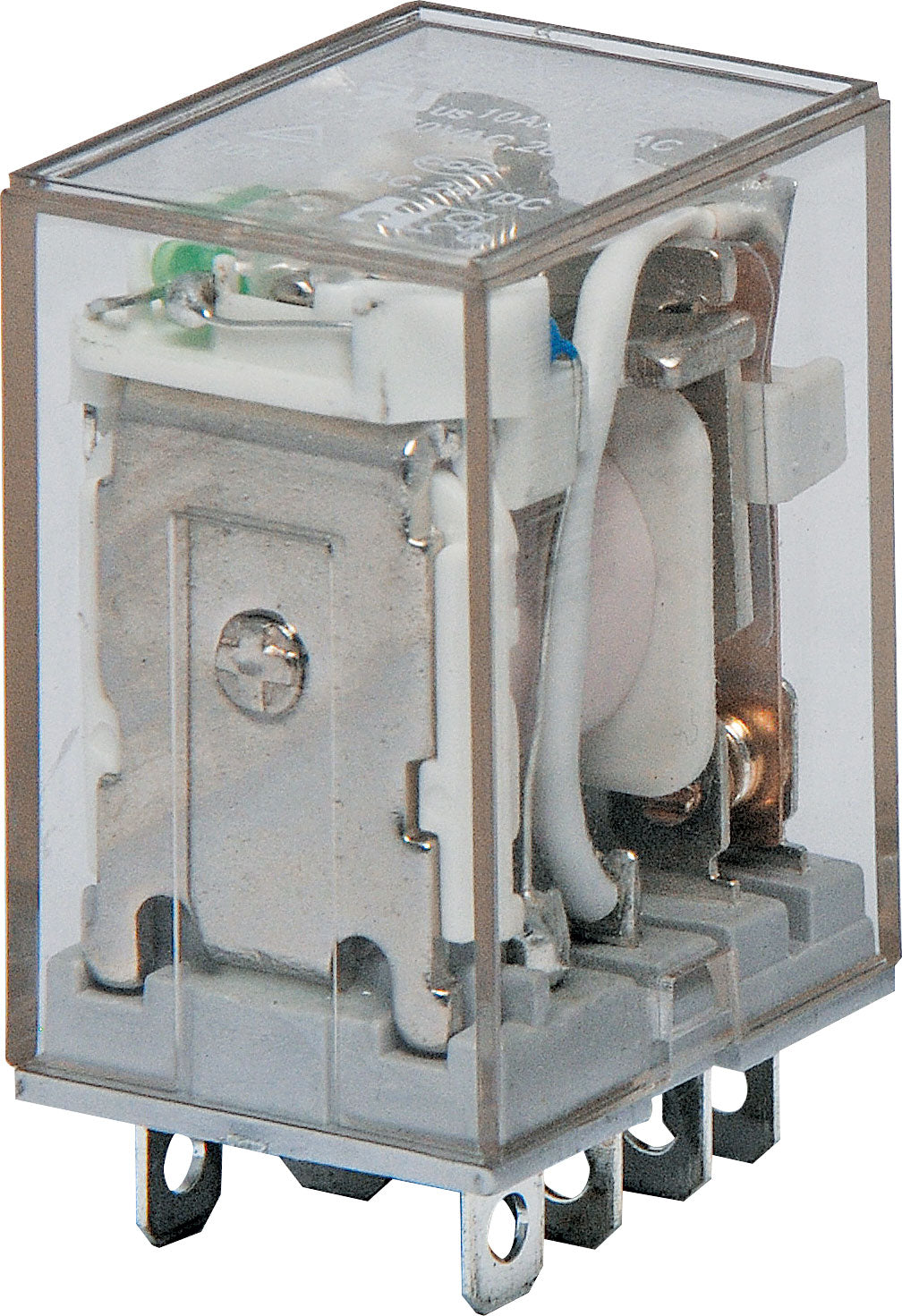

10A DPDT relay. Cradle style featuring an in-build indicator. 24V DC coil.

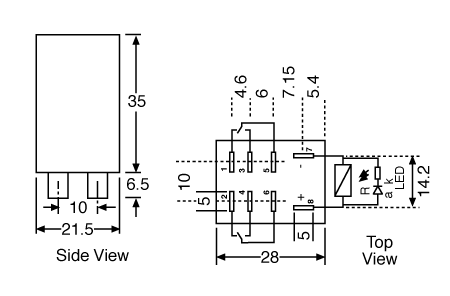

Datasheet

Specifications

  • Max Switching Voltage: 300V AC, 30V DC
  • Max Switching Current: 20A (total)
  • Max VA (Watts): 280VA (280W)
  • Contact Material: Silver Cadmium Oxide
  • Coil Resistance: 640Ω
  • Max Coil Power: 900mW
  • Insulation Resistance: >1000MΩ @ 500V DC
  • Dielectric Strength (for 1 min): 1000V AC between open contacts
  • 1500V AC between coil & contact
  • Electrical Life: 100,000 operations
  • Mechanical Life: 20 million operations
