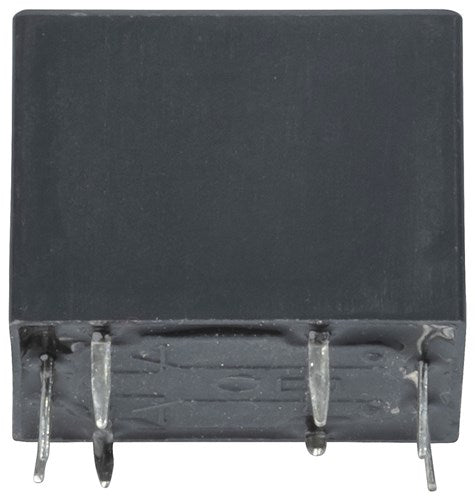

Relay 12V 1A PCB DPDT SY4061
Relay 12V 1A PCB DPDT SY4061
Regular price
$7.95
Regular price
Sale price
$7.95
Unit price
per
Taxes included.
Couldn't load pickup availability
Low profile PCB relay.
Specifications
| Width : 21mm |
| Height : 15mm |
| Depth : 16mm |
| AC Voltage : 277V |
| AC Current Draw : 30A |
| DC Voltage : 12V |
| DC Current Draw : 1A |
| Packaged Volume : 0.01l |
| Packaged Weight : 0kg |
| Packaged Length : 1.5cm |
| Packaged Width : 2cm |
| Packaged Height : 2.2cm |
| Input : DC |
| Contact format : DPDT |
| Coil Resistance : 400Ω |
| Coil Current : 30mA |
| DC Contact Voltage : 12V |
| DC Switching Current (Opening) : 1A |
