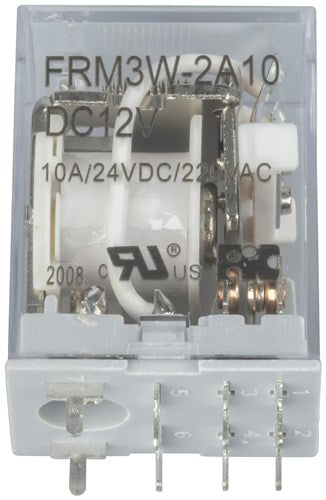

Relay 12VDC DPDT 10A 240VAC/24VDC Contacts SY4008
Relay 12VDC DPDT 10A 240VAC/24VDC Contacts SY4008
Regular price
$12.95
Regular price
Sale price
$12.95
Unit price
per
Taxes included.
Couldn't load pickup availability
High power DPDT relay suitable for switching loads up to 10A. Designed to suit the SY-4064 DIN rail mounting cradle it can also be mounted directly into a PCB. Operational life: 20 million cycles

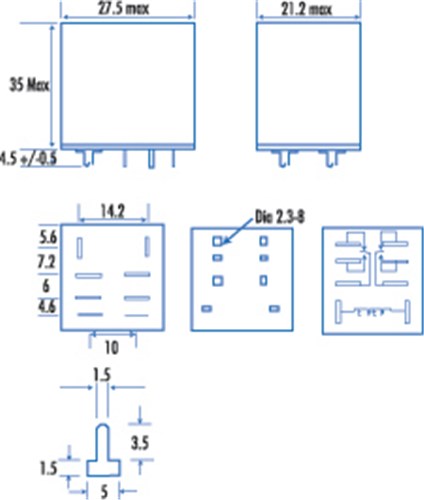

Specifications
| Length : 35mm |
| Width : 21.2mm |
| Height : 27.5mm |
| DC Voltage : 12V |
| DC Current Draw : 75mA |
| Packaged Volume : 0.02l |
| Packaged Weight : 0.04kg |
| Packaged Length : 2.7cm |
| Packaged Width : 2.1cm |
| Packaged Height : 3.2cm |
| Device Type : Cradle Mounting Relay |
| Input : DC |
| Contact format : DPDT |
| Nominal Voltage : 12V |
| Coil Resistance : 160Ω |
| Coil Current : 75mA |
| AC Contact Voltage : 240V, 240V |
| AC Switching Current (Opening) : 10A, 10A |
| DC Contact Voltage : 24V, 24V |
| DC Switching Current (Opening) : 10A |
| Operation Time : 25ms |
