Relay 16A 12VDC SPDT PCB Mount S4197
Relay 16A 12VDC SPDT PCB Mount S4197
Regular price
$6.95
Regular price
Sale price
$6.95
Unit price
per
Taxes included.
Pickup available at Leading Edge Electronics Gladstone Hi-Fi
Usually ready in 24 hours

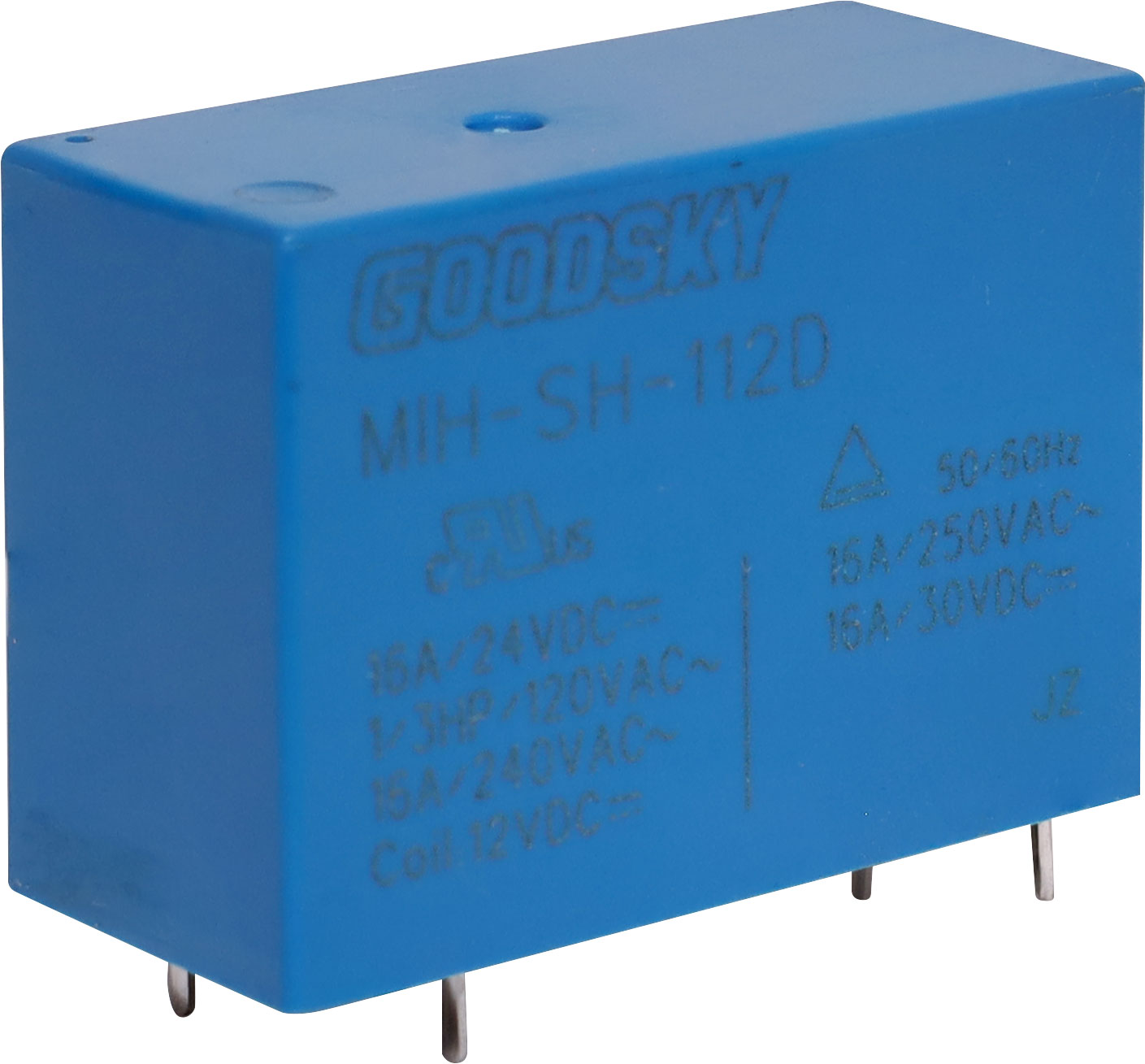

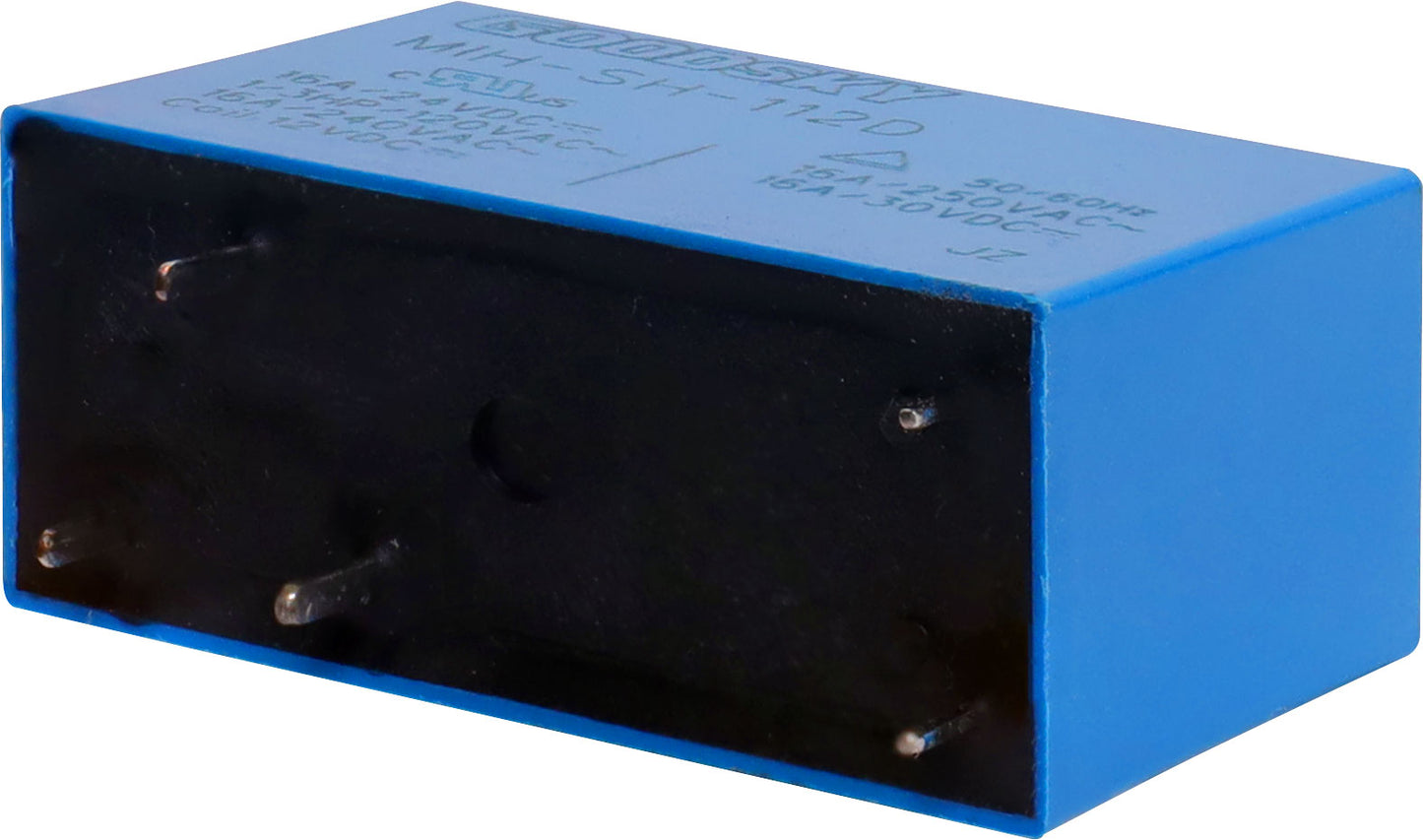

16A SPDT relay. PCB mount style. 12V DC coil.
Fully sealed construction makes it ideal for immersion cleaning and large scale manufacturing.
Specifications
- Max Switching Voltage: 250V AC, 110V DC
- Max Switching Current: 16A
- Max VA (Watts): 1800VA (450W)
- Contact Material: Silver Selenium Dioxide
- Coil Resistance: 200Ω
- Max Coil Power: 720mw
- Insulation Resistance: >100MΩ @ 500V DC
- Dielectric Strength (for 1 min):
- 1000V AC between open contacts
- 5000V AC between coil & contact
- Electrical Life: 100,000 operations
- Mechanical Life: 10 million operations
- Dimensions: 13W x 29L x 21H mm
