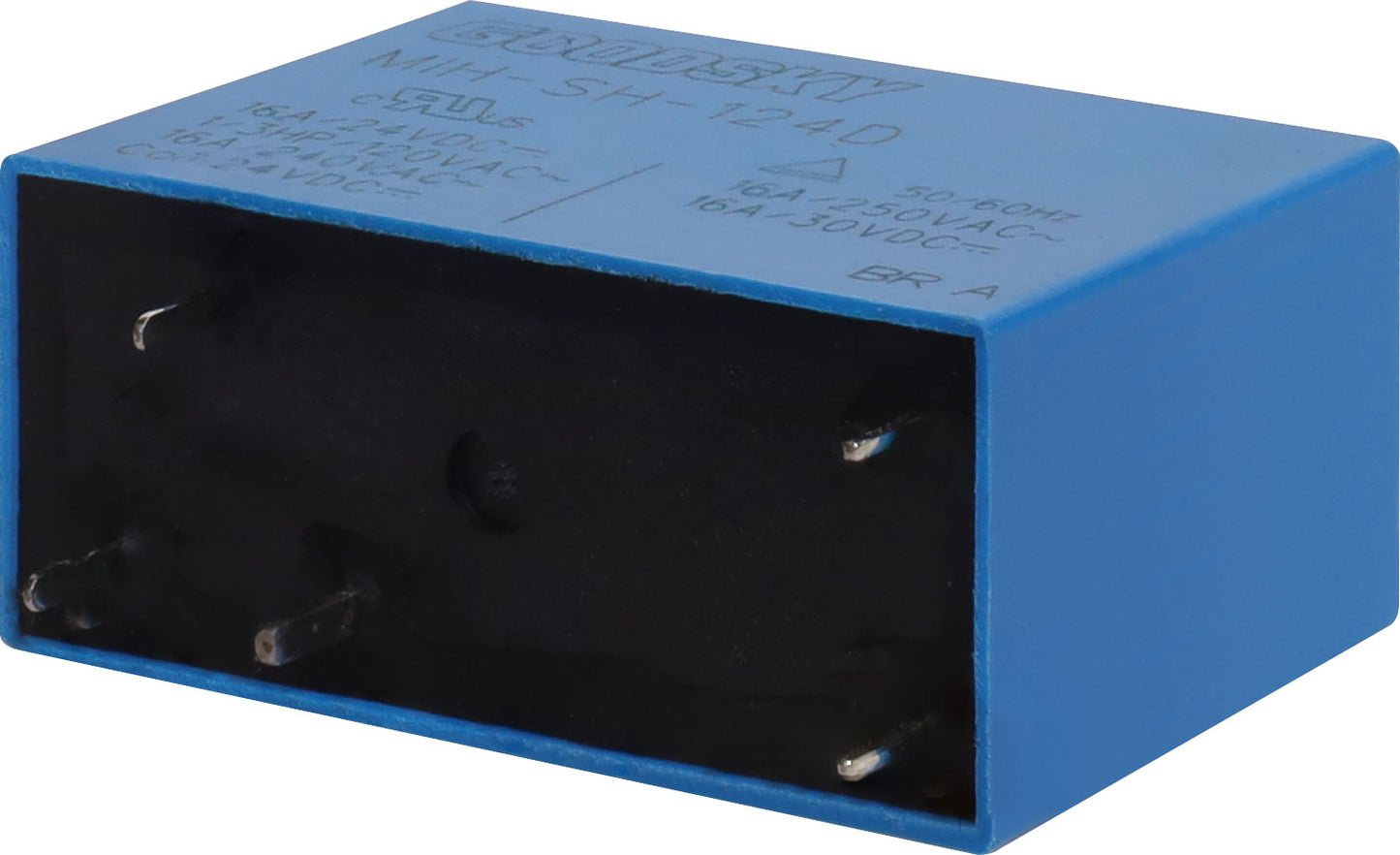

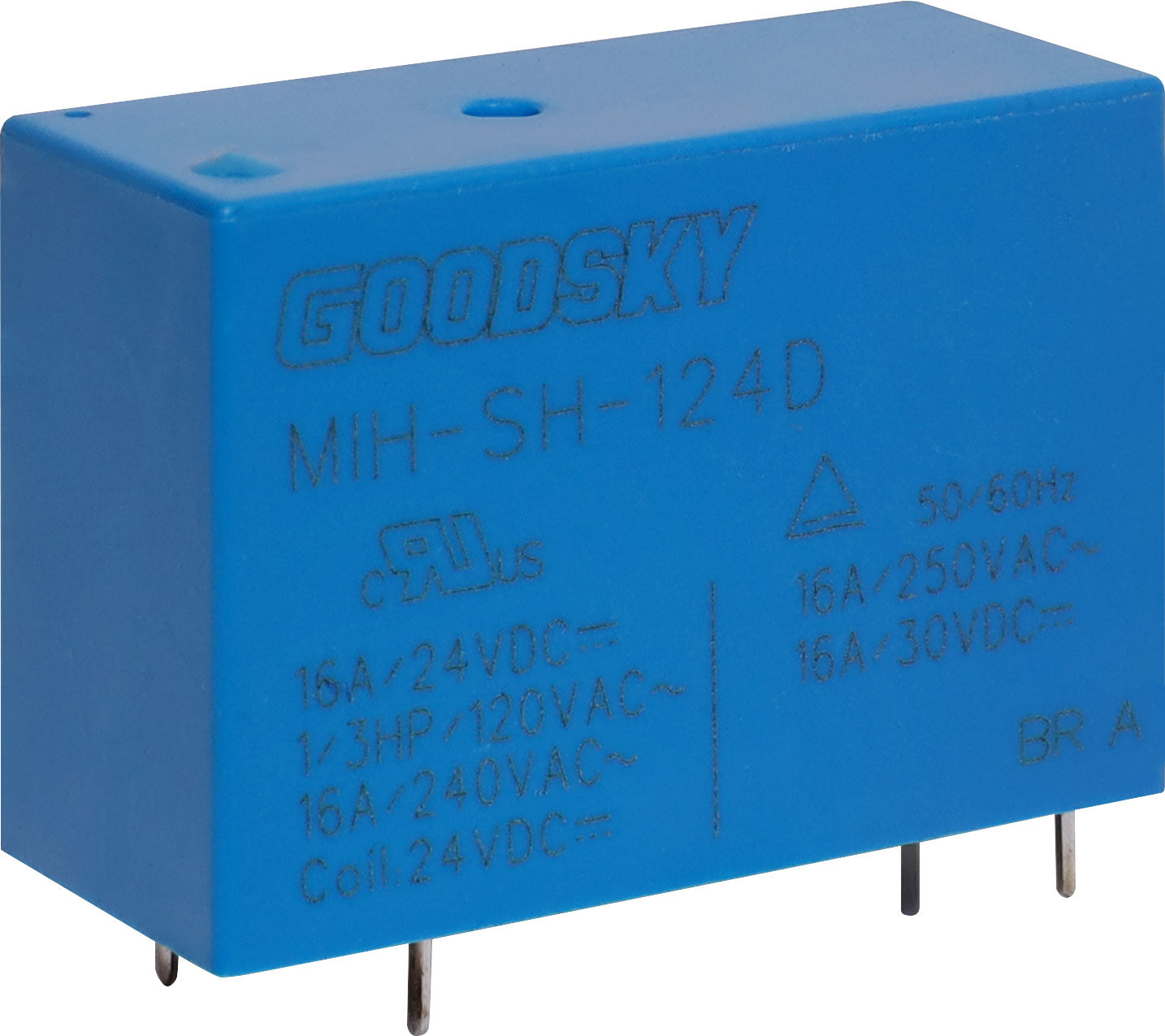

Relay 16A 24VDC SPDT PCB Mount S4199

Relay 16A 24VDC SPDT PCB Mount S4199

Regular price $6.95
Regular price Sale price $6.95
Sale Sold out
Taxes included.

Online Order only – dispatches in 1–8 business days

View full details

16A SPDT relay. PCB mount style. 24V DC coil.
Fully sealed construction makes it ideal for immersion cleaning and large scale manufacturing.

Specifications

  • Max Switching Voltage: 250V AC, 110V DC
  • Max Switching Current: 16A
  • Max VA (Watts): 1800VA (450W)
  • Contact Material: Silver Selenium Dioxide
  • Coil Resistance: 820Ω
  • Max Coil Power: 720mw
  • Insulation Resistance: >100MΩ @ 500V DC
  • Dielectric Strength (for 1 min):
  • 1000V AC between open contacts
  • 5000V AC between coil & contact
  • Electrical Life: 100,000 operations
  • Mechanical Life: 10 million operations
  • Dimensions: 13W x 29L x 21H mm
